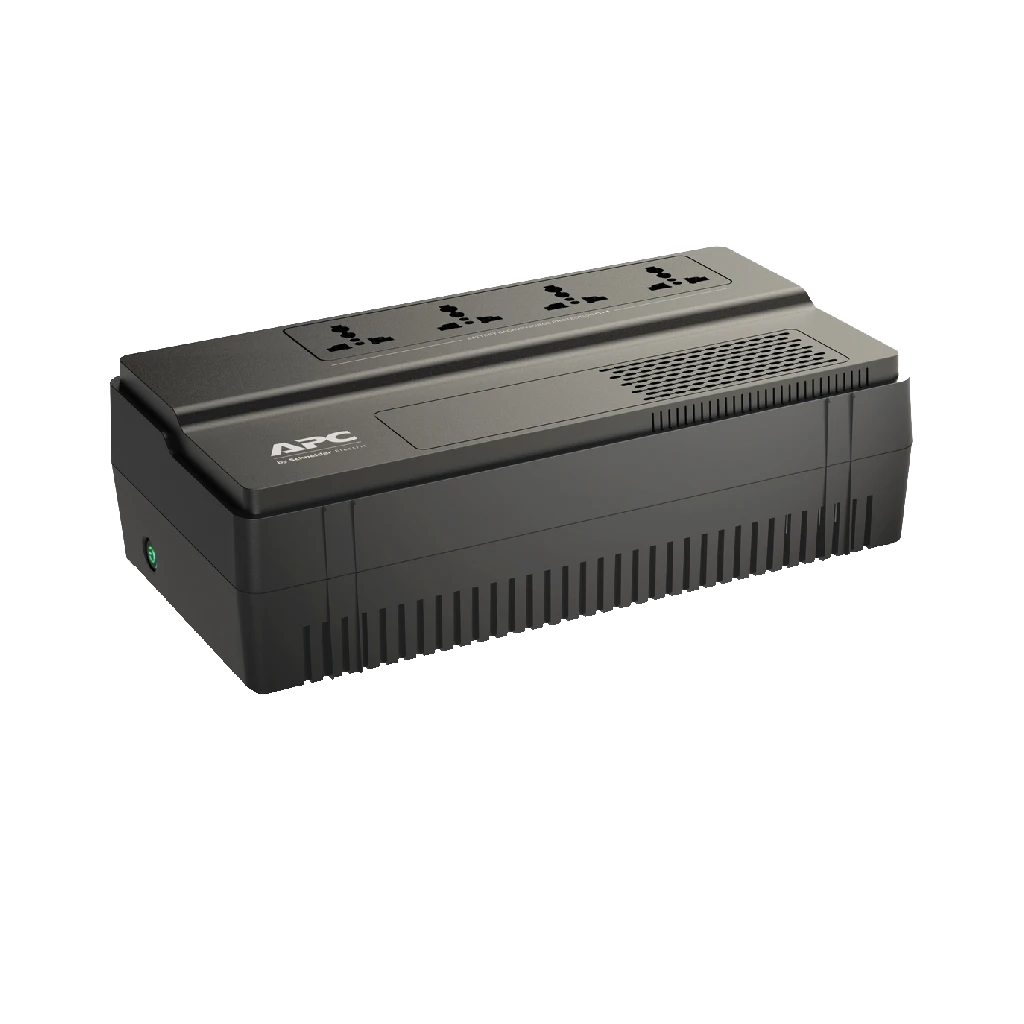

APC Easy UPS BV 800VA, 230V(BV800I-MSX) is a Battery Backup & Surge Protector for Electronics and Computers. Automatically steps up low voltage and steps down high voltage to levels that are suitable for your equipment. Provides protection of connected equipment from power surges traveling on telephone lines. Use your PC to access additional power protection and management features for your UPS via a USB Port.
| APC BV800I- MSX | |
|---|---|
| Output Voltage | 230V |
| Input Voltage | 230V |
| Battery | 450 Watts |
| Battery type | Lead-acid battery |
| Battery Life | 3 - 5 year(s) |
| Operating Temperature | 0 – 40°C |
| Weight | 5.3 kg |
| Warranty | 2 years repair or replace |
| Action | Get a Quote Shop Now |
| Efficiency : | View Efficiency Graph |
The main purpose of the Power-Saving Back-UPS (Uninterrupted Power Supply) product range is to provide emergency power to a load when the input power source fails. Additionally, the unit provides control and management of individual outlets allowing for user initiated operating modes that reduce the power consumed by the equipment attached to the UPS.
The functional unit is the protection of up to 330 W of load against input power failure for 5 years and provide a backup time of 5 minutes in case of a power outage.
This product range includes Power-Saving Back-UPS with different capacities, protecting between 185 W to 865 W, and different form factors, tower and surge protector, styles. While not specific to any kind of equipment, the Power-saving Back-UPS are typically used to retain power integrity of household computer equipment. The outlet management capabilities of the Power-Saving Back-UPS have been optimized for this environment. The product range includes products with the following model numbers:
The representative product used for the analysis is the BE550G Power-Saving Back-UPS product (550 VA / 330 W). The UPS configuration is Single UPS with bypass and the UPS performance classification is VFD SY 333 pursuant to the UPS Configuration and Classification System described in IEC 62040-3:2011. The product dimensions are 8.8 cm high x 18 cm wide x 30.2 cm deep. The Input Dependency Characteristics of the reference product is VFD and monomode; its power factor is 0.9 and there is no redundancy.
| Number of power module free slots: | 0 |
| Number of power module filled slots: | 0 |
| Redundant: | No |
| Cable length: | 1.20 m |
| Colour: | Black |
| Network frequency: | 50/60 Hz +/- 5 Hz auto-sensing |
| Plug standard: | NEMA 5-15P |
| Input voltage limits: | 170...280 V |
| Rated power in W: | 450 W |
| Maximum configurable power in W: | 450 W |
| Output frequency: | 50/60 Hz +/- 1 Hz unsynchronised |
| Product certifications: | CE |
| Warranty: | 2 years repair or replace |
