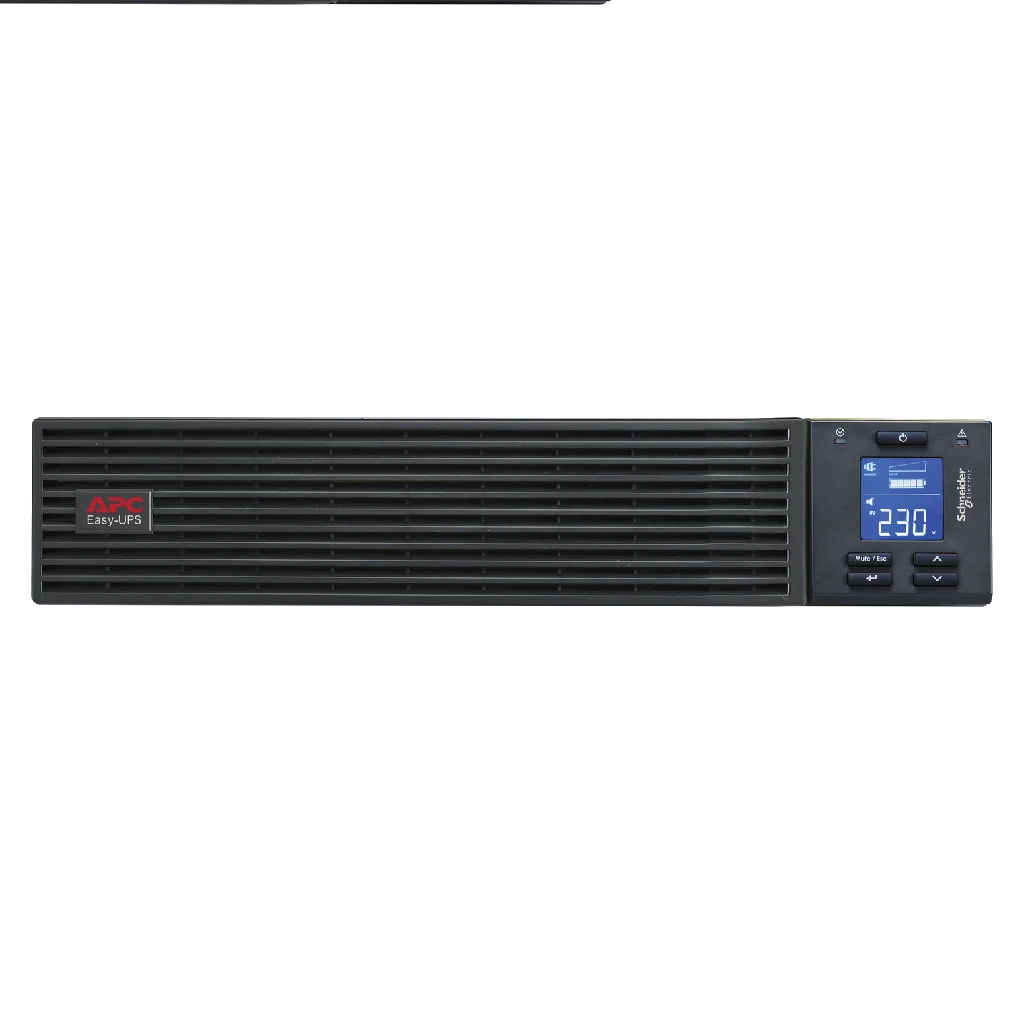

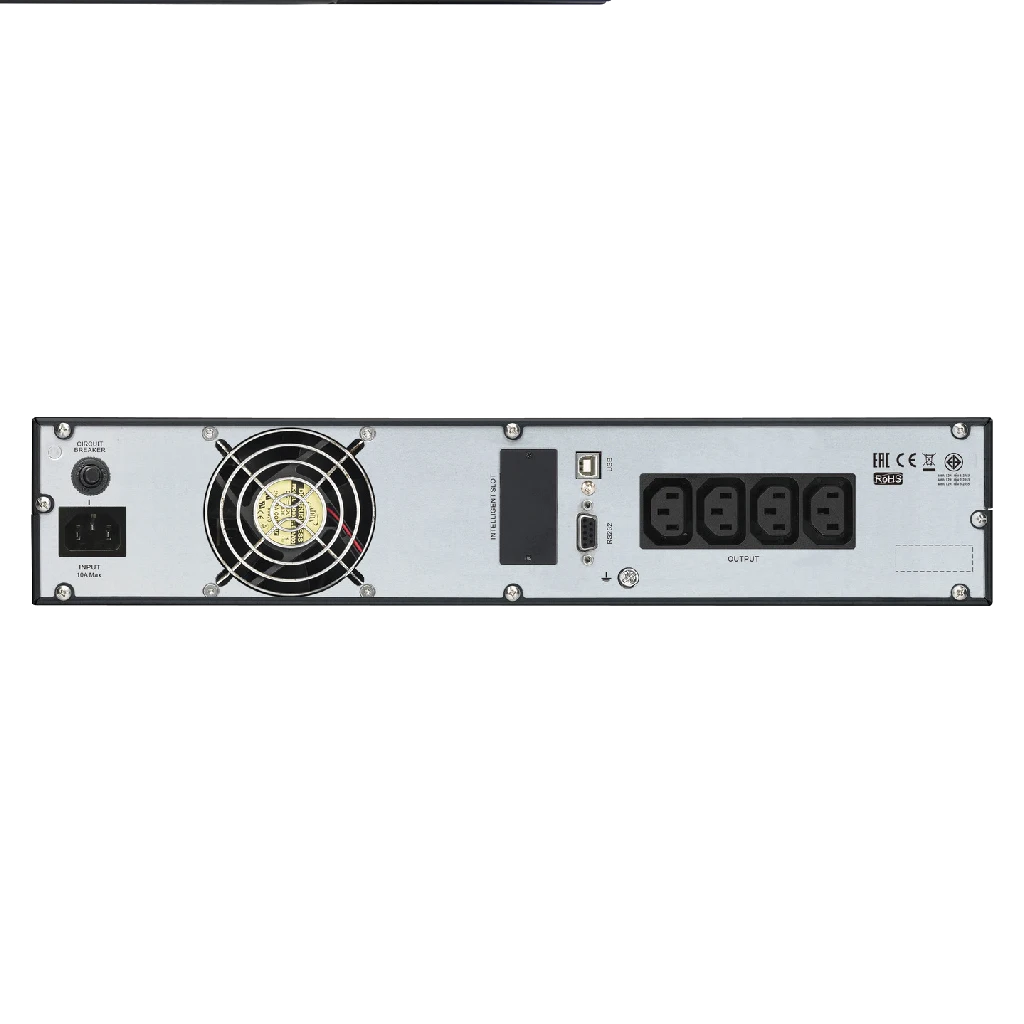

This APC Single phase Easy UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. This 2000VA double-conversion on-line 2U rackmount UPS provides pure sine wave power to support critical electronics during power disruptions. The SRV comes with IEC 320 C14 input and 4 x IEC 320 C13 outlets. The On-Line UPS has a intelligent card slot for optional Network Management Card (AP9544, SRVSMB001, VGL9601) that enables network-based UPS monitoring and management. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. The Built-in automatic and manual bypass provide seamless power to the load even in the event of an internal detected fault or error in UPS. The SRV UPS is compatible with replacement battery cartridge APCRBCV201. The UPS and the built-in lead-acid battery has a 2-year warranty. Ideal for small data centers, manufacturing facilities, computer rooms, network storage devices, telecommunication, and healthcare IT.
| SRV2KRIRK | |
|---|---|
| Output Voltage | 220 V, 240 V |
| Input Voltage | 230 V |
| Battery | 48 V |
| Battery type | Lead-acid battery |
| Battery Life | 3 - 5 year(s) |
| Mounting mode | Rack-mounted |
| Operating Temperature | 0 - 40°C |
| Dimensions | 8.6 cm x 43.7 cm x 46.2 cm |
| Weight | 18.2 kg |
| Warranty | 2 years repair or replace |
| Action | Get a Quote Shop Now |
Provides early-warning fault analysis ensuring proactive component replacement. Disconnected battery notification warns when a battery is not available to provide backup power. Automatic self-test Periodic battery self-test ensures early detection of a battery that needs to be replaced. User-replaceable batteries Increases availability by allowing a trained user to perform upgrades and replacements of the batteries reducing Mean Time to Repair (MTTR) Audible alarms Provides notification of changing utility power and UPS power conditions.
Intelligent Card Slot Customize UPS capabilities with management cards. LCD graphics display Text and mimic diagrams that display modes of operation, system parameters and alarms. LED Indicators Provide easy-to-read status of the unit and utility power conditions. Network manageable Most models provide remote power management options for the UPS over the network. Many do not have NMC embedded Serial connectivity Provides management of the UPS via a serial port.
| Run Time : | View Runtime Graph |
| Efficiency : | View Efficiency Graph |
• High efficiency: High efficiency rates that remain stable even at lower operating power levels
• Generator compatible: Ensures clean, uninterrupted power to protected equipment when generator power is used.
• Intuitive LCD interface: Provides clear and accurate information in multiple languages with the ability to configure the UPS locally with easy to use navigation keys.
• Input Power Factor Correction: Minimizes installation costs by enabling the use of smaller generators and cabling.
• Pure sine wave output on battery: Simulates utility power to provide the highest degree of compatibility for active PFC (power factor corrected) servers and sensitive electronics.
• Management Software: Allows you to easily monitor your utility power and manage your UPS.
• Double conversion on-line topology: Guarantees a consistently high level of power quality. Any disturbances on the distribution waveform are regenerated via the zero transfer time AC to DC then DC to AC conversion process. The battery is only used as a back-up source.
• Allows the user to manage the UPS functions, schedule automatic shutdown and monitor the power grid occurrences through an interactive interface that ensures an easy and intuitive monitoring: Management Software
• Safety-agency approved: Ensures the product has been tested and approved to work safely with the connected service provider equipment and within the specified environment.
| Main Input Voltage: | 230 V |
| Other Input Voltage: | 220 V 240 V |
| Main Output Voltage: | 230 V |
| Other Output Voltage: | 220 V 240 V |
| Rated power in W: | 1600 W |
| Rated power in VA: | 2000 VA |
| Input Connection Type: | IEC 60320 C14 |
| Output connection type: | 4 IEC 60320 C13 |
| Number of rack unit: | 2U |
| Cable length: | 1.50 m |
| Number of cables: | 1 |
| Provided equipment: | 1 IEC 60320 C13 to Schuko power cable 1 IEC 60320 C13 to C14 power cable 1 USB cable 1 RS-232 configuration cable 1 rack mounting brackets 1 rack mounting support rails user manual |
| Battery type: | Lead-acid battery |
| Battery voltage: | 48 V |
| Battery life: | 3…5 year(s) |
| Battery charger power: | 70 W rated |
| Warranty: | 2 years repair or replace |
