APC Easy UPS SRV RM 6000VA 230V – SRV6KRILRK Models Features Overview Specification Media Videos Reference

APC Easy UPS SRV RM 6000VA 230V is high quality, Double-conversion On-line UPS designed for essential power protection needs even in the most unstable power conditions.

Product Variants

Discover the streamlined product portfolio

SRV6KRILRK
Output capacity 6.0 kWatts / 6.0 kVA
Output Voltage 230V
Input Voltage 110 – 300 Adjustable (half load), 176 – 300V
Battery 235 W
Battery type Lead-acid battery
Battery Life 3 - 5 Years
Topology Double conversion online
Operating Temperature 0 - 40°C
Dimensions 21.95 x 43.8 x 61.5 cm
Weight 88.0 kg
Warranty 2 Years repair or replace
Action Get a Quote Shop Now

Features

Features
  • ECO Mode: Operating mode that by-passes unused electrical components in good power conditions to achieve high operating efficiency without sacrificing protection
  • High efficiency: High efficiency rates that remain stable even at lower operating power levels
  • Generator compatible: Ensures clean, uninterrupted power to protected equipment when generator power is used.
  • Intuitive LCD interface: Provides clear and accurate information in multiple languages with the ability to configure the UPS locally with easy to use navigation keys.
  • Input Power Factor Correction: Minimizes installation costs by enabling the use of smaller generators and cabling.
  • Pure sine wave output on battery: Simulates utility power to provide the highest degree of compatibility for active PFC (power factor corrected) servers and sensitive electronics.
  • Management Software: Allows you to easily monitor your utility power and manage your UPS.
  • Double conversion on-line topology: Guarantees a consistently high level of power quality. Any disturbances on the distribution waveform are regenerated via the zero transfer time AC to DC then DC to AC conversion process. The battery is only used as a back-up source.
  • Allows the user to manage the UPS functions, schedule automatic shutdown and monitor the power grid occurrences through an interactive interface that ensures an easy and intuitive monitoring: Management Software
  • Safety-agency approved: Ensures the product has been tested and approved to work safely with the connected service provider equipment and within the specified environment.
Manageability
  • Serial connectivity: Provides management of the UPS via a serial port.
  • Network manageable: Most models provide remote power management options of the UPS over the network. Many do not have NMC embedded.
  • LED indicators: Provide easy-to-read status of the unit and utility power conditions.
  • LCD graphics display: Text and mimic diagrams that display modes of operation, system parameters and alarms.
  • SmartSlot: Customize UPS capabilities with management cards.
Availability
  • Intelligent battery management: Maximizes battery performance, life, and reliability through intelligent, precision charging.
Serviceability
  • Battery notification: Warns when a battery is not available to provide backup power.
  • Automatic self-test: Periodic battery self-test ensures early detection of a battery that needs to be replaced.
  • Audible alarms: Provides notification of changing utility power and UPS power conditions
  • Predictive failure notification: Provides early-warning fault analysis ensuring proactive component replacement.

Overview

SRV6KRILRK - APC Easy UPS SRV RM 6000VA 230V

Batteries & Runtime

Run Time : View Runtime Graph
Efficiency : View Efficiency Graph

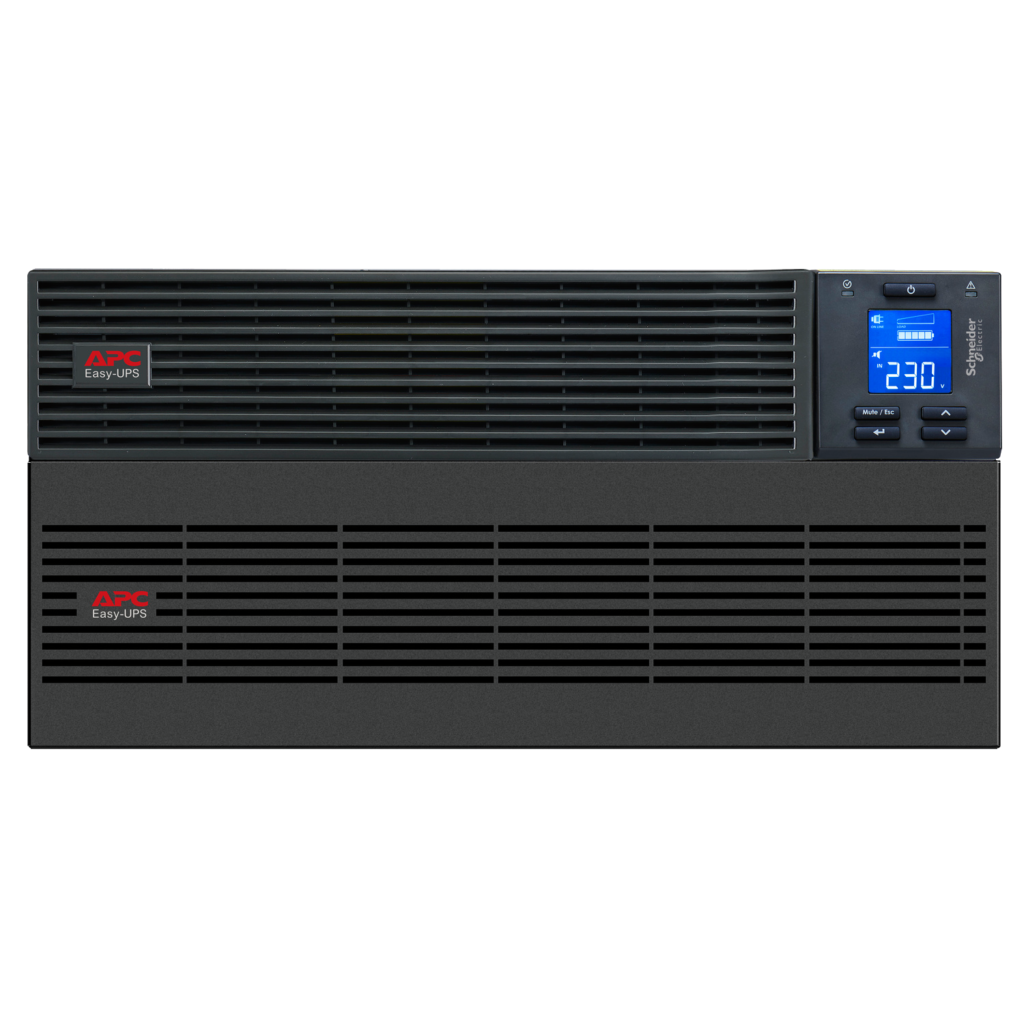

Front View

1. UPS Power On/Off button 2. Status LED
3. LCD Display 4. Mute/Esc button
5. Enter button 6. Up / Down button
7. Alarm LED
1. USB port 2. RS-232
3. Emergency Power Off (EPO) 4. Battery connector
5. Intelligent Card Slot 6. External maintenance bypass signal port
7. Input circuit breaker 8. Input/Output terminal (Please refer to RS-232 Terminal view for the details.)
9. Output terminals 10. Ground terminal
11. Input terminal 12. Ground screw
Rear View

Specification

Output power capacity: 6.0kWatts / 6.0kVA
Max Configurable Power (Watts): 6.0kWatts / 6.0kVA
Nominal Output Voltage: 230V
Output Frequency (sync to mains): 50/60Hz +/- 3 Hz
Other Output Voltages: 220, 240
Load Crest Factor: 3 : 1
Waveform type: Sine wave
Nominal Input Voltage: 230V
Input frequency: 40 - 70 Hz
Input Connections: Hard Wire 3-wire
Other Input Voltages: 220, 240
Battery type: Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof
Extendable Run Time: 1
Battery Volt-Amp-Hour Capacity: 1512
Extended Run Options: APC-Easy-UPS-SRV-RM-6000VA-230V-with-External-Battery-Pack-with-RailKit (Available in Technical Tab on site)

Media


Videos

Reference

APC Easy UPS SRV RM 6000VA 230V – Datasheet
