This APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. The 750VA line interactive tower UPS provides pure sine wave power to support critical electronics during power disruptions. It comes with IEC 320 C14 input, 6x IEC 320 C13 outlets, and 2 x IEC jumper cables. It offers cloud-based remote power monitoring, UPS firmware upgrades, remote diagnostics and proactive email notifications with recommended actions. It has a SmartSlot for optional Network Management Card that enables graceful shutdown of physical servers, virtual machines & HCI Clusters via PowerChute Network Shutdown. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. It provides surge protection against lightning strikes, power sags, brownouts and surges. The SMT UPS has a 3-year warranty, and built-in lead-acid battery has a 2-year warranty. It is compatible with a dedicated user-replaceable battery, and the APC replacement battery cartridge helps restore UPS performance to the original specifications.
| APC SMT750IC | |
|---|---|
| Output capacity | 500 Watts / 750VA |
| Output Voltage | 230V |
| Battery | 49 Watts |
| Battery type | Lead-acid battery |
| Topology | Line interactive |
| Operating Temperature | 0 - 40 °C |
| Dimensions | 161 x 138 x 369 mm |
| Weight | 11.8 kg |
| Warranty | 3 years repair or replace (UPS) and 2 years for battery |
| Action | Get a Quote Shop Now |
Provides pure sine wave output which is recommended by server manufacturers using active power factor corrected (PFC) power supplies. Safety agency tested and approved means that you can deploy Smart-UPS with confidence that they meet or exceed the industry’s most rigorous standards.
Network manageable via serial, USB or optional ethernet. Includes Powerchute Business Edition Software for convenient monitoring and control, safe operating system shutdown and innovative energy management capabilities.
Intuitive LCD interface provides clear information with the ability to configure the UPS locally with easy to use navigation keys. Over 15 different programmable settings including switched outlet group control allow for application specific settings, thresholds and notifications.
Network grade power conditioning protects from damaging surges and disruptive noise. Solid state automatic voltage regulation boosts low input voltage up to 30% and trims high voltage up to 12% without battery operation. Reliable battery back-up capacity to power through outages or gracefully shutdown systems
Patented green operating mode achieves efficiencies over 97%. Smart-ups was the first network UPS to be Energy Star certified. Intelligent battery management, pioneered by APC, maximizes battery performance and life through intelligent, precision temperature compensated charging. Dynamic battery replacement date indicator and automatic self tests insure battery reliability and warn in advance of needing replacement. Convenient, easy to connect, hot-swappable battery modules provide battery replacement without powering down. Designed and manufactured by APC for over 23 years, Smart-UPS is the world’s most trusted network UPS with over 25 million units sold.
| Run Time : | View Runtime Graph |
| Efficiency : | View Efficiency Graph |
Front View :
| 1. | Display | 2. | Bezel |
| 3. | Battery | 4. | Internal battery connector |
| 5. | Battery compartment door |

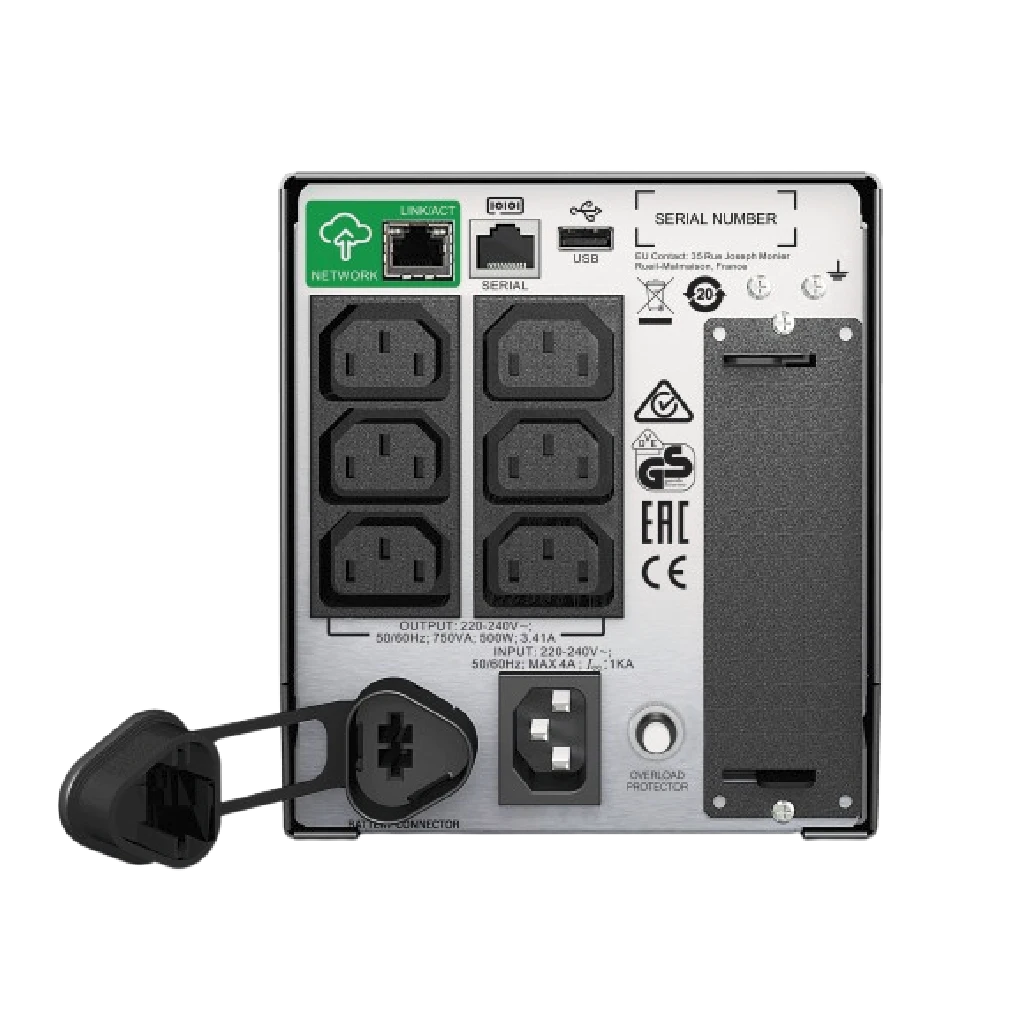

Rear View :
| 1. | SmartConnect Ethernet port | 2. | Serial port | 3. | USB port |
| 4. | Chassis ground connection screw | 5. | Smart Slot | 6. | Output circuit breaker/overload protection |
| 7. | Controlled outlet group | 8. | Outlets | 9. | UPS input |
| 10. | Battery connector | 11. | Input circuit breaker |
| Main Input Voltage: | 230 V |
| Other Input Voltage: | 220 V, 240 V |
| Main Output Voltage: | 230 V |
| Other Output Voltage: | 220 V, 240 V |
| Rated power in Watt: | 500 W |
| Rated power in VA: | 750 VA |
| Input Connection Type: | IEC 320 C14 |
| Output connection type: | 6 IEC 320 C132 IEC Jumpers |
| Battery voltage: | 24 V |
| Battery capacity: | 7.0 Ah |
| Battery recharge time: | 3h |
| Battery life: | 3 to 5 year(s) |
| Battery power in VAH: | 146 VAh runtime |
| Battery charger power: | 49 W rated |
| Input voltage limits: | 151 - 302 V adjustable, 160 - 280 V |
| Network frequency: | 50/60 Hz +/- 3 Hz auto-sensing |
| Maximum configurable power in VA: | 750 VA |
| Maximum configurable power in Watt: | 500 W |
| Acoustic level: | 40 dBA |
| Operating altitude: | 0 to 10000 ft |
| Ambient air temperature for operation: | 0 to 40°C |
| Ambient air temperature for storage: | -15 to 45°C |
| Storage altitude: | 0.00 to 15240.00 m |
| Relative humidity: | 0 to 95% |
| Storage Relative Humidity: | 0 to 95% |
| Control panel: | Multifunction LCD status and control console |
| Alarm: | Alarm when on battery : distinctive low battery alarm : configurable delays |
| Net weight: | 11.8 kg |
| Dimension (H x W x D): | 161 x 138 x 369 mm |
| Warranty: | 3 years repair or replace (excluding battery) and 2 years for battery |
