APC Smart-UPS RT 15kVA 230V
Batteries & Runtime
| Run Time : | View Runtime Graph |
| Efficiency : | View Efficiency Graph |
Front view
| 1. | Front bezel | 2. | LCD module |

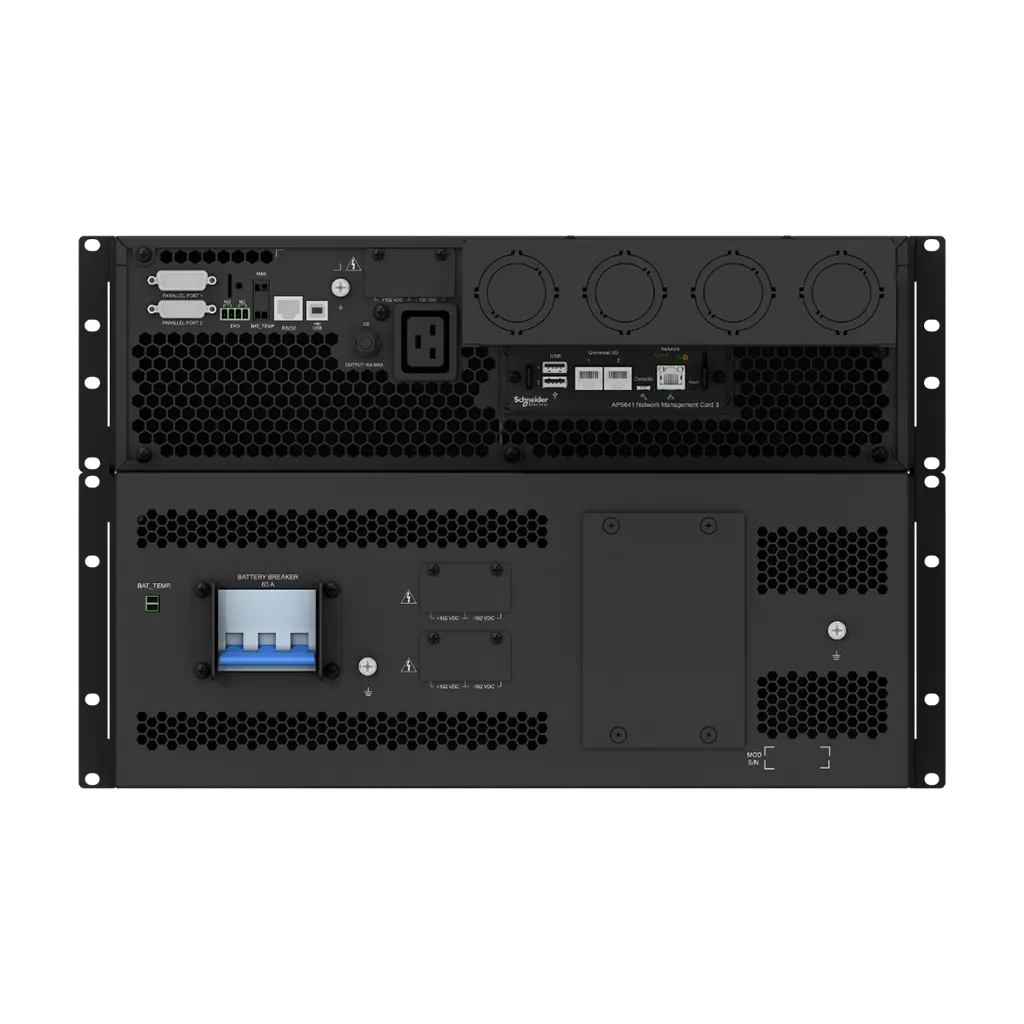

| 1. | EPO terminal | 2. | MBS terminal |
| 3. | BAT_T terminal | 4. | RS232 port |
| 5. | USB port | 6. | Parallel Port |
| 7. | Input/Output hardwire terminals | 8. | Output socket with circuit breaker |
| 9. | Battery Connector | 10. | Smart Slot |
| 11. | Ground Terminal | 12. | Battery breaker |
| 13. | BAT_T | 14. | Battery connector | 15. | Ground Termina |
| 16. | Battery Fuse |
APC Smart-UPS RT 15kVA 230V
This 15kVA on-line rack/tower UPS provides pure sine wave power and extended runtime to support critical electronics during power disruptions. It comes with hard wire 3-wire (1P + N + E) and 5-wire (3P +N +E) inputs, 3-wire (1P + N + E) and 5-wire (3P + N + E) outlets. The UPS has an embedded Network Management Card for UPS network-based monitoring and management. The UPS comes with PowerChute Network Shutdown that provides graceful shutdown of physical servers, virtual machines, and HCI clusters. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. The UPS has a 3-year warranty, and the built-in lead-acid battery has a 2-year warranty.
| Main Input Voltage : | 380...415 V 230 V |
| Other Input Voltage : | 220...240 V |
| Main Output Voltage : | 380...415 V 230 V |
| Other Output Voltage : | 230 V |
| Number of rack unit : | 7U |
| Battery type : | Lead-acid battery |
| Network frequency : | 40...70 Hz auto-sensing |
| Number of input connectors : | 1 hard wire 5 wire (3P + N + E) 1 hard wire 3-wire (1P + N + E) |
| Maximum configurable power in W : | 15000 W |
| Battery voltage : | +/- 192 V |
| Battery charger power : | 2160 W rated |
| Warranty : | 3 years repair or replace (excluding battery) and 2 years for battery |
