Ideal for a range of applications, from network and server rooms to branch offices and secure power uses, the new APC Smart-UPS RT On-Line provides high-density, double-conversion online power protection, scalable runtime, and affordability without sacrificing quality.
| SRTG8KXLI | |
|---|---|
| Output capacity | 8.0kWatts / 8.0kVA |
| Output Voltage | 230 V |
| Input Voltage | 160 - 285 V |
| Battery | 392 W |
| Battery type | Lead-acid battery |
| Battery Life | 3 - 5 Years |
| Topology | Double conversion online |
| Operating Temperature | 0 - 40°C |
| Dimensions | 217 x 440 x 620mm |
| Weight | 101.44 kg |
| Warranty | 3 years repair or replace |
| Action | Get a Quote Shop Now |
Smart-UPS On-Line is capable of supporting loads from 5 - 10kVA in a flexible, compact rack/tower convertible form. When business systems require runtime in hours, not minutes, Smart-UPS On-Line can be configured with multiple battery packs to meet aggressive runtime demands. Smart-UPS RT On-Line is available at a competitive price, providing refreshed features and value to customers with demanding power conditions.
| Run Time : | View Runtime Graph |
| Efficiency : | View Efficiency Graph |

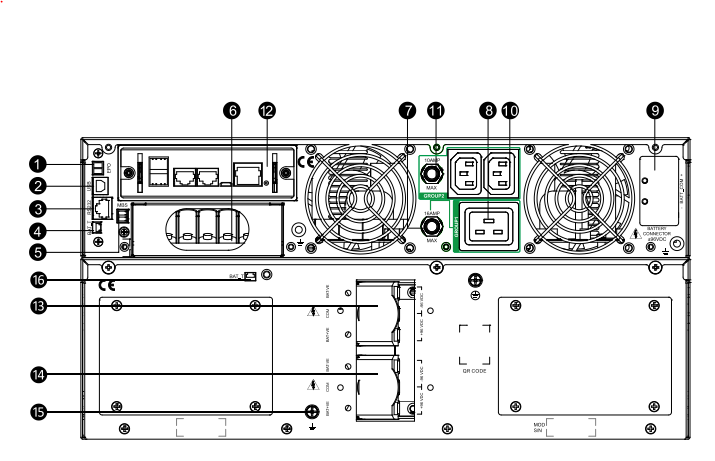

| 1. | Front bezel | 2. | LCD module |
| 1. | EPO terminal | 2. | USB port |
| 3. | RS232 port | 4. | BAT_T terminal |
| 5. | MBS terminal | 6. | Hard wire box input/output |
| 7,8. | Controllable outlet group 1, with circuit breaker | 9. | Battery input |
| 10,11. | Controllable outlet group 2, with circuit breaker | 12. | Smart Slot | 13. | Battery connector |
| 14. | Battery connector | 15. | Ground screw | 16. | BAT_T terminal |
