The Dell EMC PowerEdge R450, with 3rd generation Intel Xeon Scalable processors, offers exceptional value and density with excellent performance. Buy DELL PowerEdge R450 Server from Promise Computer Technology – DELL Authorized Partner in Dubai.
| DELL SER R450 4310 LFF NO SSD | DELL SER R450 4310 SFF 32GB | DELL SER R450 4310 SFF 16GB | DELL SER R450 4310 LFF 2.4TB 2P | PER450SPL1-252 | |
|---|---|---|---|---|---|
| Processor | Intel Xeon Silver 4310 | Intel Xeon Silver 4310 | Intel Xeon Silver 4310 | Intel Xeon Silver 4310 | Intel Xeon Silver 4309Y |
| Memory | 32 GB RDIMM | 32 GB RDIMM | 16 GB RDIMM | 16 GB RDIMM | 16 GB RDIMM |
| Storage | Diskless | 2.4 TB | 1.2 TB | 2.4 TB | 600 GB |
| Storage Controller | PERC H755 Controller | PERC H755 Controller | PERC H755 Controller | PERC H755 Controller | PERC H355 |
| Power | 800 W | 700 W | 700 W | 700 W | 1100 W |
| Warranty | 3 year warranty | 3 year warranty | 3 year warranty | 3 year warranty | 3 year warranty |
| Action | Get a Quote | Get a Quote Shop Now | Get a Quote Shop Now | Get a Quote Shop Now | Get a Quote Shop Now |
The Dell PowerEdge R450 is a two-socket entry-level 1U server offering updated technologies and added value with faster processing speeds and flexible storage options.
The Dell PowerEdge R450 with 3rd Generation Intel Xeon Scalable processors delivers the perfect combination of performance, density and affordability for general-purpose scale and web-tech deployments.
Tame the complexity of your IT environment with Dell Technologies OpenManage systems management portfolio which uses tools and solutions to discover, deploy, monitor, manage, update and secure your PowerEdge infrastructure.
Integrate tools across your portfolio with PowerEdge iDRAC, OpenManage Enterprise and CloudIQ solutions that help organisations automate their server lifecycles, optimise operations and scale efficiently.
Stay protected at every phase of the product lifecycle with the PowerEdge cyber resilient architecture that helps accelerate your adoption of a Zero Trust security strategy. From the silicon root of trust, secured component verification, signed firmware and drift detection to BIOS recovery and dynamic system lockdown, you can rest assured that your servers are secure.
The Dell PowerEdge R450 is Dell’s latest 2-socket, 1 U rack servers designed to run complex workloads using highly scalable memory, I/O, and network options. The systems feature 3rd Generation Intel Xeon Processor Scalable Family , up to 16 DIMMs, PCI Express (PCIe) 4.0 enabled expansion slots, and a choice of network interface technologies to cover NIC. The R450 is a general-purpose platform capable of handling demanding workloads and applications, such as data warehouses,ecommerce, databases, and high-performance computing (HPC).

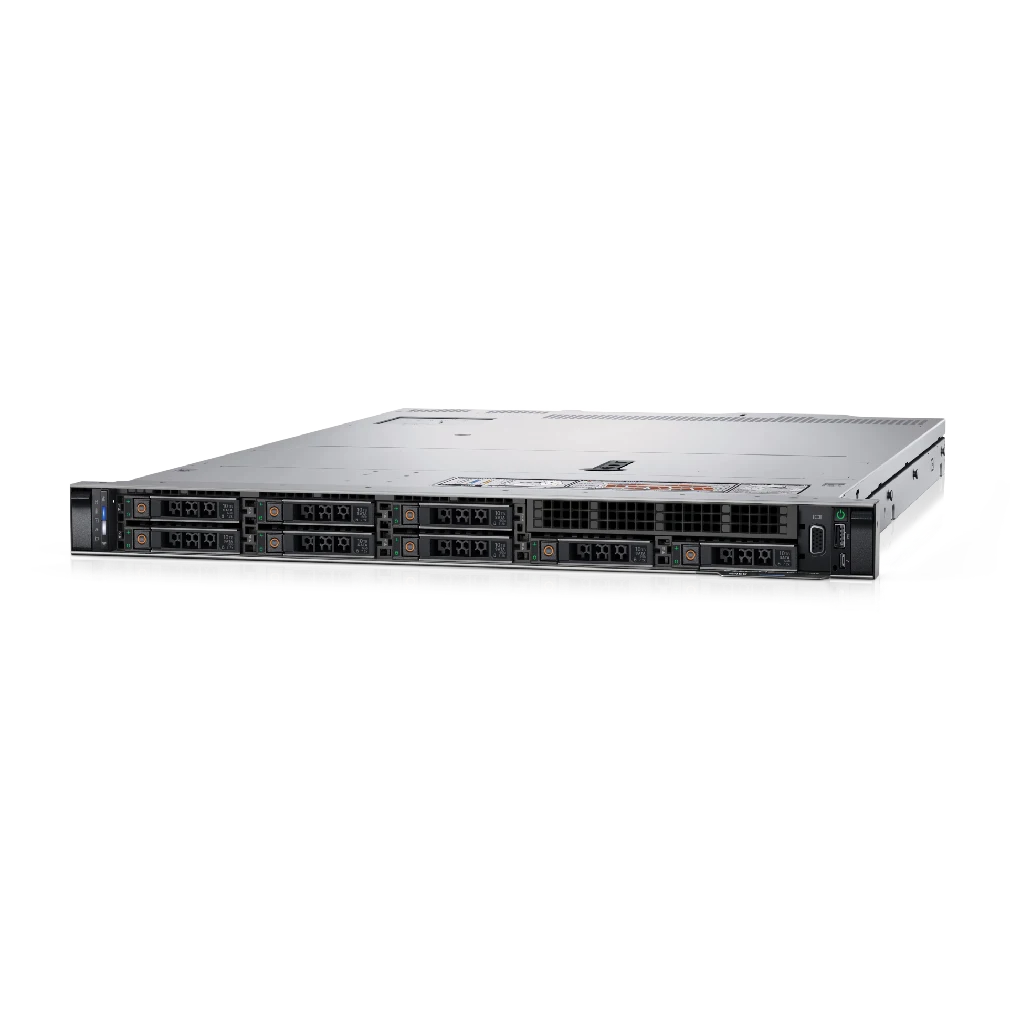

Front View
| 1. | Left control panel | 2. | Drive(optional) | 3. | VGA port |
| 4. | Right control panel | 5. | Information tag | 6. | Drive blank |
| 1. | PCIe expansion card riser 1 | 2. | BOSS riser |
| 3. | PCIe expansion card riser 2c | 4. | Power supply unit (PSU 1) |
Rear View
| 5. | Power supply unit (PSU2) | 6. | System identification button | 7. | VGA port |
| 8. | OCP NIC port | 9. | USB 3.0 port | 10. | USB 2.0 port |
| 11. | iDRAC dedicated port | 12. | NIC ports |
| Processor: | Up to two 3rd Generation Intel Xeon Scalable processors, with up to 24 cores per processor |
| Memory: | Memory 16 DDR4 DIMM slots, supports RDIMM max 1 TB, speeds up to 2933 MT/s |
| Storage Controller: | • Internal controllers (RAID): PERC H345, PERC H355, HBA355i, PERC H745, PERC H755, S150 • Internal Boot: Internal Dual SD Module or Boot Optimized Storage Subsystem (BOSS-S1): HWRAID 2 x M.2 SSDs or USB • External PERC (RAID): PERC H840 • External HBA (non-RAID) HBA355e |
| Drive Bays: | Front bays: • Up to 4 x 3.5-inch SAS/SATA (HDD/SSD) max 64 TB • Up to 8 x 2.5-inch SAS/SATA (HDD/SSD) max 61.4 TB |
| Power Supplies: | • 600W Platinum Mixed Mode (100-240Vac or 240Vdc) hot swap redundant • 800W Platinum Mixed Mode (100-240Vac or 240Vdc) hot swap redundant • 1100W -48Vdc hot swap redundant (CAUTION: only works with -48Vdc to -60Vdc power input) |
| Cooling options: | Air cooling |
| Fans: | • Standard (STD) fans or High performance SLVR fans • Up to seven cold swap fans |
| Dimensions: | • Height – 42.8 mm (1.7 inches) • Width – 482 mm (18.97 inches) • Depth – 734.95 mm (28.92 inches) – without bezel, 748.79 mm (29.47 inches) – with bezel |
| Form Factor: | 1U Rack Server |
| Embedded Management: | • iDRAC9 • iDRAC Direct • iDRAC RESTful API with Redfish • iDRAC Service Module • Quick Sync 2 wireless modulen |
| Bezel: | Optional LCD bezel or security bezel |
| OpenManage Software: | • OpenManage Enterprise • OpenManage Power Manager plugin • OpenManage SupportAssist plugin • OpenManage Update Manager plugin |
| Mobility: | OpenManage Mobile |
| Integrations and Connections: | OpenManage Integrations - BMC Truesight, Microsoft System Center, Red Hat Ansible Modules, VMware vCenter and vRealize Operations Manager • OpenManage Connections - IBM Tivoli Netcool/OMNIbusnIBM Tivoli Network Manager IP Edition, Micro Focus Operations ManagernNagios CorenNagios XI |
| Security: | • Cryptographically signed firmwarenSecure BootnSecure Erase • Silicon Root of Trust • System Lockdown (requires iDRAC9 Enterprise or Datacenter) • TPM 1.2/2.0 FIPS, CC-TCG certified, TPM 2.0 China Nation |
| Embedded NIC: | Embedded NIC |
| Network Options: | 1 x OCP 3.0 |
| GPU Options: | NA |
| Ports: | Front Ports: 1 x Dedicated iDRAC Direct micro-USB, 1 x USB 3.0, 1 x VGA • Internal Ports: 1 x USB 3.0 (optional) • Rear Ports: 1 x USB 2.0, 1 x Serial (optional), 1 x iDRAC ethernet port, 1 x USB 3.0, 2 x Ethernet, 1 x VGA |
| PCIe: | 2 x PCIe Gen4 slots + PCIe Gen, 2 x 16 Gen4 ( x 16 connector) low profile, half length, 1 x 4 Gen3 (x 8 connector) low profile, half length |
| Operating System and Hypervisors: | Canonical Ubuntu Server LTS, Citrix Hypervisor, Microsoft Windows Server with Hyper-V, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware ESXi |
| OEM-ready version available: | From bezel to BIOS to packaging, your servers can look and feel as if they were designed and built by you. |
