Dell Latitude 5520 Models Features Overview Specification Media Videos Reference

Dell Latitude 5520

Dell Latitude 5520

View Store

Dell Latitude 5520

Dell Latitude 5520 Dell Optimizer extends runtime and improves battery performance by adapting to your patterns. Express Charge Boost delivers up to 35% charge in about 20 minutes, or up to 80% charge in an hour with Express Charge.

Product Variants

Discover the streamlined product portfolio

	5520W-I5-PS-VPN-210-AYNN
Processor	Intel Core i5-1135G7
OS	Windows 11 Pro
Memory	8 GB ( 1 x 8 GB ) DDR4
Graphics	Intel Iris Xe
Display	15.6" HD 1920 x 1080
Storage	512 GB PCIe NVMe
Dimensions	35.7 x 25.1 x 1.98 cm
Weight	1.59 kg
Warranty	1 Year Basic Warranty
Action	Get a Quote Shop Now

Features

A New Look For World's Smallest, Most Scalable Laptop

Our most scalable laptops are redesigned smaller and smarter than ever. The 13” is now offered in either laptop or 2-in-1. Up to 4K displays with available ComfortView Plus low blue light solution increase productivity. An FHD webcam option takes conferencing to the next level. Memory up to 64GB DDR4, storage up to 2TB, or up to 4TB on the 15” with dual storage options, and battery up to 63 Whr, offer flexibility for different business needs. Discrete graphics option on the 15” ensures reliable video conferencing and media consumption. We’ve streamlined without compromising the ports needed for business, moving to dual USB Type-C with Thunderbolt 4, and keeping HDMI and additional USB ports, plus RJ45 on 14” and 15”.

Overview

Dell latitude 5520

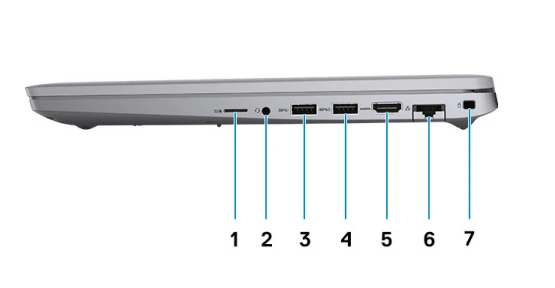

Right view :

1.	Micro-SD card slot	2.	Universal audio port
3.	USB 3.2 Gen 1 port	4.	USB 3.2 Gen 1 port with Power Share
5.	HDMI 2.0 port	6.	RJ-45 Ethernet port
7.	Wedge-shaped lock slot

1.

● Thunderbolt 3 port with DisplayPort Alt Mode/USB 3.2 Gen 2/Power Delivery for 10th Generation Intel Core i5/i7 processors

● Thunderbolt 4 port with DisplayPort Alt Mode/USB4/ Power Delivery for 11th Generation Intel Core i3/i5/i7 processors

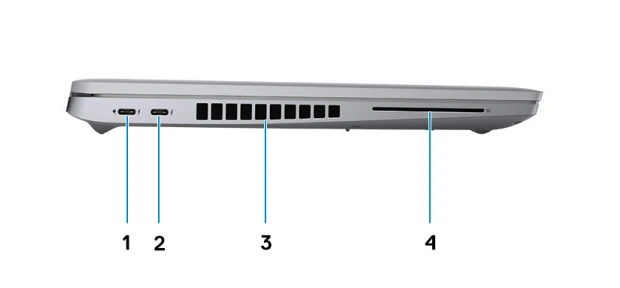

Left View

2.● Thunderbolt 3 port with DisplayPort Alt Mode/USB 3.2 Gen 2/Power Delivery for 10th Generation Intel Core i5/i7 processors
● Thunderbolt 4 port with DisplayPort Alt Mode/USB4/ Power Delivery for 11th Generation Intel Core i3/i5/i7processors

3.

Air vents

4.

Smart card reader slot (optional)

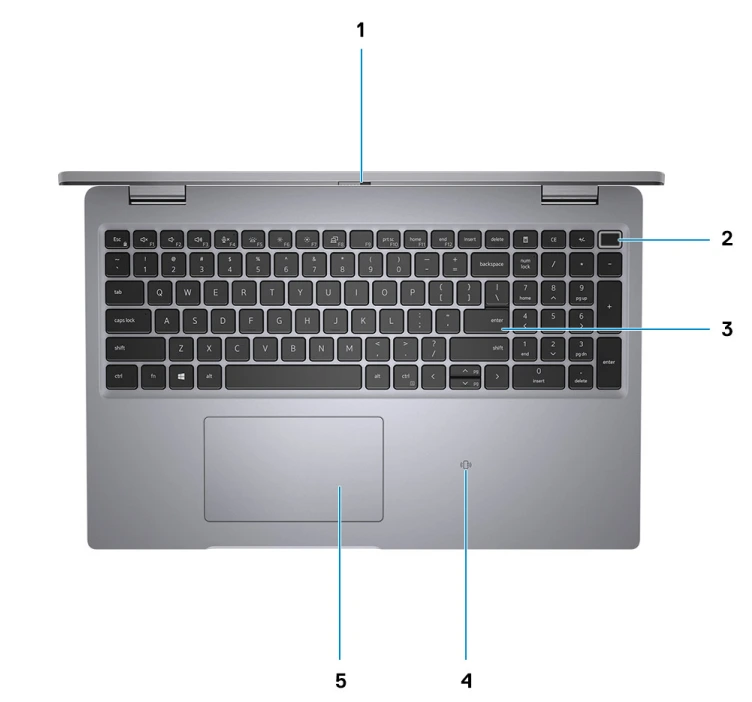

Top view :

1.	Privacy shutter	2.	Power button with fingerprint reader—(optional)
3.	Keyboard	4.	NFC/Contactless smart card reader—(optional)
5.	Clickpad

1.	Dual-array microphones	2.	IR emitter/Ambient Light Sensor (ALS)—(optional)
3.	Camera (FHD RGB IR/HD RGB IR/HD RGB)	4.	Camera status LED
5.	Display panel	6.	Battery indicator LED

Front view

Specification

Processor	Intel 7th Generation Processors, Intel Core Xeon E3-1505M v6 Quad Core Xeon 3.00GHz, 4.00GHz Turbo, 8MB 45W, Intel Core i7-7820HQ Quad Core 2.90GHz, 3.90GHz Turbo, 8MB 45W, Intel Core i7-7700HQ Quad Core 2.80GHz, 3.80GHz Turbo, 6MB 45W, Intel Core i5-7440HQ Quad Core 2.80GHz, 3.80GHz Turbo, 6MB 45W, Intel Core i5-7300HQ Quad Core 2.50GHz, 3.50GHz Turbo, 6MB 45W, Intel 6th Generation Processors (Available Q2’ 2017), Intel Core Xeon E3-1505M v5 Quad Core Xeon 2.80GHz, 3.70GHz Turbo, 8MB 45W, Intel Core i7-6820HQ Quad Core 2.70GHz, 3.60GHz Turbo, 8MB 45W
Operating System	• Windows 7 Pro (64-bit) w/ 6th Gen Processors (Available Q2’ 2017) • Windows 10 Pro (64-bit) w/ both Gen Processors • Windows 10 Home w/ both Gen Processors • Canonical Ubuntu 16.04 SP1 w/ 7th Gen Processors • RHEL 7.3 w/ 7th Gen Processors (Available Q2’ 2017)
Display	15.6” Ultra Sharp FHD IPS (1920 x 1080) Wide View Anti-Glare LED-backlit with Premium Panel Guarantee (72% color gamut), 15.6” Ultra Sharp Premier Color UHD IGZO (3840 x 2160) Touch Wide View LED-backlit with Premium Panel Guarantee (100% Minimum Adobe color gamut)
Chipset	Intel Mobile CM238
Graphics	NVIDIA Quadro M1200 with 4GB GDDR5 dedicated memory, Intel Pro Graphics 630
Memory	2 DIMM slots – Max memory up to 32GB 2400Mhz NECC / ECC
Storage	• Support for two storage devices: one M.2 PCIe NVMe solid state drive and one 2.5” SSD/HDD drive: Dell Fast Response Free Fall Sensor standard • Hard Disk Drive (HDD): 2.5” 500GB 7200RPM up to 1TB 2.5” 5400RPM SATA 6Gb/s Solid State Drive (SSD): 256GB, 512GB, 512GB SED (Check regional availability), 1TB 2.5” SATA 6Gb/s • M.2 PCIe NVMe Solid State Drive (M.2 SSD): 256GB, 512GB, 512GB SED (Check regional availability), 1TB SSD
Battery	56Whr Lithium Ion polymer battery, 97Whr Lithium Ion polymer battery
Power Adapter	130 Watt AC adapter (4.5mm barrel)
Multimedia	Dual integrated high quality speakers and dual integrated noise cancelling digital array microphones standard, Maxx Audio Pro by Waves, Integrated light sensitive HD video webcam
I/O Ports and Connectors	SD Card Reader (SD, SDHC, SDXC, supporting up to 2TB), 1 x Thunderbolt 3, 2 x USB 3.0 with PowerShare, 1 x Headphone and microphone combo jack, 1 x HDMI, 1 x battery life indicator
Dimensions	Width X = 14.06” (357.23mm), Depth Y= 9.27” (235.47mm), Height Z= front 0.45” (11.48mm) – rear 0.66” (16.82mm)
Weight	Starting at 4.81 lbs with a 4-cell battery and HD non-touch panel
Security	Intel Platform Trust Technology, Trusted Platform Module (TPM) 1.2/2.0 (Check regional availability), Chassis lock slot support, Support for optional Computrace
Regulatory and Environmental Compliance	ENERGY STAR 6.1; EPEAT registered
TAA Configurations available	YES

Media

Videos

Reference

Dell Latitude 5520 Datasheet
