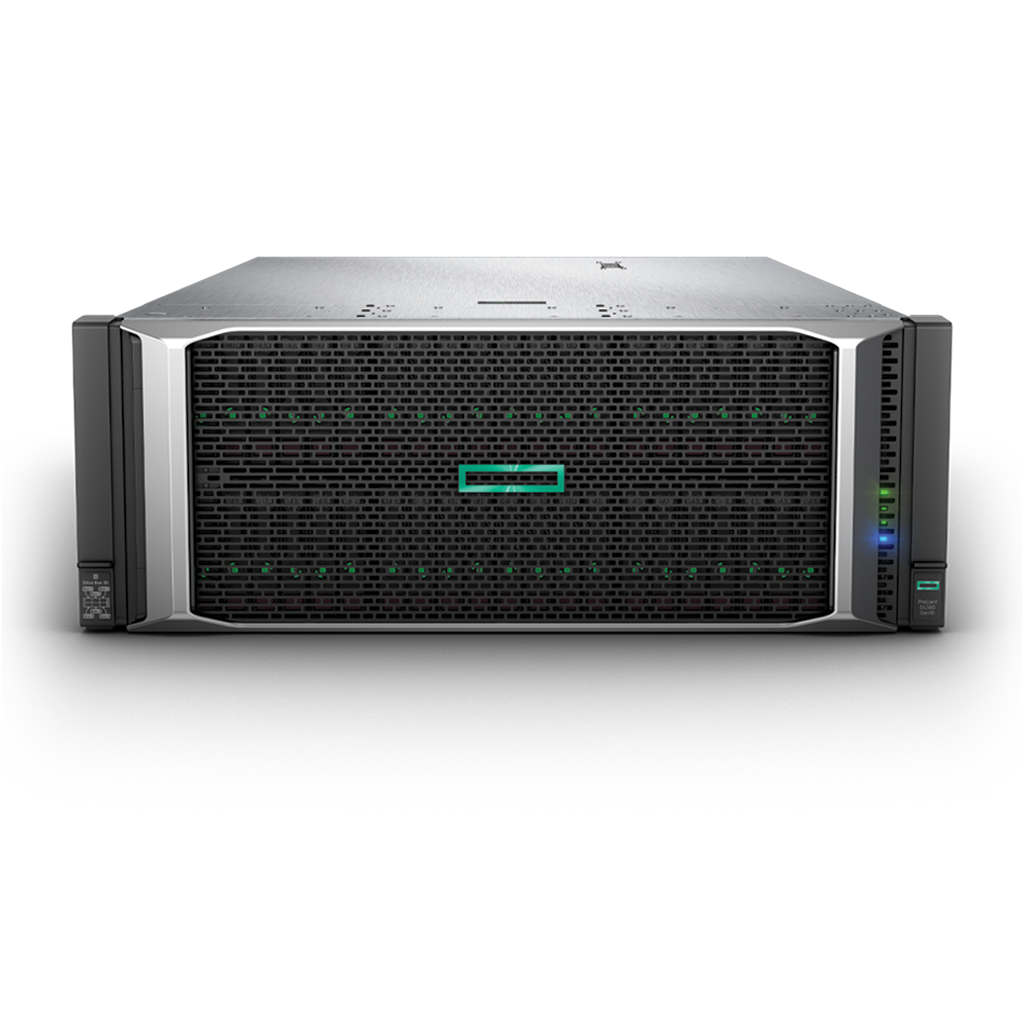

HPE ProLiant DL580

The HPE ProLiant DL580 Gen10 server delivers the latest in security, performance and expandability, backed by a comprehensive warranty. Standardize on the industry’s most trusted compute platform. The 10th generation HPE ProLiant DL580 model saw an impressive boost to performance. Buy HPE DL580 Server from Promise Computer Technology – HPE Gold Partner in Dubai.

HPE ProLiant DL580

Left View:
1.Quick removal access panel2.Box 2 (8 SFF or 6 SFF+2 NVMe or 8 NVMe SSD optional) 1
3.Box 2 (8 SFF or 6 SFF+2 NVMe or 8 NVMe SSD optional) 14.Front USB 3.0 port
5.Power On/Standby button and system power LED button6.Health LED
7.NIC status8.UID button
9.iLO Front Service Port (not available with SID)10.Front USB 3.0 port
11.Serial label pull tag12.Box 6 (8 SFF)
13.Box 5 (8 SFF)14.Box 4 (8 SFF or Universal Media bay)
15.Optional front display port (via Universal Media Bay)16.Optional 2 SFF HDD, requires optional Universal Media bay
17.Optional USB 2.0 (via Universal Media Bay18.Optical Drive (Optional)
Right View:
1.PCIe Slots (Slots 1-7 top to bottom,requires primary riser2.PCIe Slots (Slots 8-14 top to bottom, requires second riser
3.PCIe Slots (Slots 15-16 top to bottom), requires tertiary riser4.Power supply power LEDs (max.4)
5.Power supply power connections(max .4)6.HPE Flexible Slot Power Supply 800W PS shown (max.4)7.Serial connector
8.Dedicated iLO network connector9.VGA (video) connector10.USB connectors 2.0 (2)
11.USB connectors 3.0 (2)12.Unit ID LED13.UF lexibleLOM ports (Port 1 on right )

HPE ProLiant DL560

Scalable Performance In An Expandable 4U Form Factor

The HPE ProLiant DL580 Gen10 server provides 4P computing in an expandable 4U form factor and supports up to four Intel Xeon Platinum and Gold processors which provide up to 11% per-core performance gain5 over the first generation of Intel® Xeon® Scalable processors.

Remarkable Expandability and Availability For Multiple Workloads

HPE ProLiant DL580 Gen10 server has a flexible processor tray allowing it to scale up from one to four processors as needed, saving on upfront costs and the flexible drive cage design supports up to 48 Small Form Factor (SFF) SAS/SATA drives and a maximum of 20 NVMe drives.

Secure and Reliable

HPE iLO 5 enables the world’s most secure industry standard servers with HPE Silicon Root of Trust technology to protect your servers from attacks, detect potential intrusion and recover your essential server firmware securely.
