HP Z2 Mini Tower Workstation

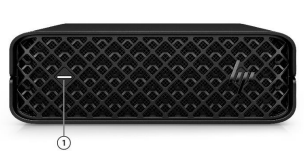

Front View 1
Front View 1
Front Side View:
| 1. | Power button | 2. | Universal audio jack (with CTIA & OMTP headset support) |
| 3. | Antenna | 4. | 1 USB-A 10Gbps port (charge port supports up to 5V/2.1A) |
| 5. | 2 USB-C 20Gbps port (charging supported up to 5V/3A) |

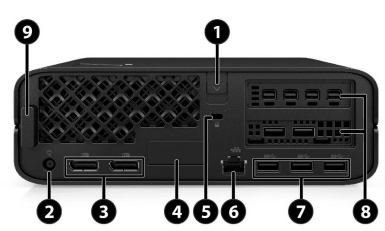

Rear View:
| 1. | Cover release latch | 2. | Power connector | 3. | (2) DisplayPort 1.4 | |
| 4. | Flex IO left side, choice of: • (1) VGA, • (1) HDMI 2.0b, • (1) DisplayPort 1.4, • (1) Dual USBA 5Gbps port, • (1) 1GbE LAN, |
• (1) USB-C 10Gbps port (Alt Mode), • (1) Thunderbolt 3 with USB4 40Gbps, • (1) 1Gbps Fiber LC NIC, • (1) 2.5GbE LAN, • (1) USB-based Serial port, • (1) 10GbE LAN |
||||
| 5. | Security cable slot | |||||
| 6. | (1) 1GbE LAN | 7. | (3) USB-A 10Gbps port |
| 8. | PCIe, choice of: Graphic Cards3, (1) Dual USB-A 10Gbps port, (1) Serial port | 9. | Antenna |
Be uncompromising about performance
With the new Intel 10-core processor and NVIDIA Quadro RTX 3000 that offers more graphics power over last gen, you get reliable performance in multithreaded apps. Don't worry about overheating - our advanced thermals keep things cool and quiet
We test it so you can trust it 24/7
You need performance you can rely on. That's why our products endure over 360K hours of rigorous testing, MIL-STD testing and software certifications. Paired with an Intel Xeon processor and ECC memory, our mini is built for tough workloads.
The perfect fit, anywhere
Create the ideal setup - from the office to the shop floor to the data center. Mount under a desk or behind a display, then connect to multiple screens and other hardware. Or centrally manage your fleet of mini's with versatile rack mounting options.
| Available Operating Systems : | Windows 11 Pro, Windows 11 Home – HP recommends Windows 11 Pro for business, Windows 10 Pro (available through downgrade rights from Windows 11 Pro), Linux Ready, Ubuntu 20.04 LTS |
| Processor family : | 13th Generation Intel Core i9 processor; 13th Generation Intel Core i7 processor; 13th Generation Intel Core i5 processor; 12th Generation Intel Core i9 processor; 12th Generation Intel Core i7 processor; 12th Generation Intel Core i5 processor; 12th Generation Intel Core i3 processor |
| Available Processors : | • Intel Core i5-12400 with Intel UHD Graphics (2.5 GHz P-core base frequency, up to 4.4 GHz P-core Max Turbo frequency, 18 MB L3 cache, 6 P-cores, 12threads) • Intel Core i3-12300 with Intel UHD Graphics (3.5 GHz P-core base frequency, up to 4.4 GHz P-core Max Turbo frequency, 12 MB L3 cache, 4 P-cores, 8threads) • Intel Core i3-12100 with Intel UHD Graphics (3.3 GHz P-core base frequency, up to 4.3 GHz P-core Max Turbo frequency, 12 MB L3 cache, 4 P-cores, 8threads) • Intel Core i5-12600K with Intel UHD Graphics (2.8 GHz E-core base frequency, 3.7 GHz P-core base frequency, up to 3.6 GHz E-core Max Turbo frequency, up to 4.9 GHz P-core Max Turbo frequency, 20 MB L3 cache, 6 P-cores and 4 E-cores, 16 threads) • Intel Core i5-12600 with Intel UHD Graphics (3.3 GHz P-core base frequency, up to 4.8 GHz P-core Max Turbo frequency, 18 MB L3 cache, 6 P-cores, 12threads) • Intel Core i5-12500 with Intel UHD Graphics (3.0 GHz P-core base frequency, up to 4.6 GHz P-core Max Turbo frequency, 18 MB L3 cache, 6 P-cores, 12threads) • Intel Core i9-12900 with Intel UHD Graphics (1.8 GHz E-core base frequency, 2.4 GHz P-core base frequency, up to 3.8 GHz E-core Max Turbofrequency, up to 5.0 GHz P-core Max Turbo frequency, up to 5.1 GHz with Intel Turbo Boost Technology, 30 MB L3 cache, 8 P-cores and 8 E-cores, 24threads) • Intel Core i9-12900K with Intel UHD Graphics (2.4 GHz E-core base frequency, 3.2 GHz P-core base frequency, up to 3.9 GHz E-core Max Turbofrequency, up to 5.2 GHz P-core Max Turbo frequency, 30 MB L3 cache, 8 P-cores and 8 E-core, 24 threads) • Intel Core i7-12700K with Intel UHD Graphics (2.7 GHz E-core base frequency, 3.6 GHz P-core base frequency, up to 3.8 GHz E-core Max Turbofrequency, up to 5.0 GHz P-core Max Turbo frequency, 25 MB L3 cache, 8 P-cores and 4 E-core, 20 threads) • Intel Core i7-12700 with Intel UHD Graphics (1.6 GHz E-core base frequency, 2.1 GHz P-core base frequency, up to 3.6 GHz E-core Max Turbo frequency, up to 4.8 GHz P-core Max Turbo frequency, up to 4.9 GHz with Intel Turbo Boost Technology, 25 MB L3 cache, 8 P-cores and 4 E-cores, 20threads) • Intel Core i5-13400 (1.8 GHz E-core base frequency, 2.5 GHz P-core base frequency, up to 3.3 GHz E-core Max Turbo frequency, up to 4.6 GHz P-coreMax Turbo frequency, 20 MB L3 cache, 6 P-cores and 4 E-cores, 16 threads) • Intel Core i5-13500 (1.8 GHz E-core base frequency, 2.5 GHz P-core base frequency, up to 3.5 GHz E-core Max Turbo frequency, up to 4.8 GHz P-coreMax Turbo frequency, 24 MB L3 cache, 6 P-cores and 8 E-cores, 20 threads) • Intel Core i5-13600 (2.0 GHz E-core base frequency, 2.7 GHz P-core base frequency, up to 3.7 GHz E-core Max Turbo frequency, up to 5.0 GHz P-coreMax Turbo frequency, 24 MB L3 cache, 6 P-cores and 8 E-cores, 20 threads) • Intel Core i5-13600K (2.6 GHz E-core base frequency, 3.5 GHz P-core base frequency, up to 3.9 GHz E-core Max Turbo frequency, up to 5.1 GHz P-coreMax Turbo frequency, 24 MB L3 cache, 6 P-cores and 8 E-cores, 20 threads) • Intel Core i7-13700 (1.5 GHz E-core base frequency, 2.1 GHz P-core base frequency, up to 4.1 GHz E-core Max Turbo frequency, up to 5.1 GHz P-coreMax Turbo frequency, 30 MB L3 cache, 8 P-cores and 8 E-cores, 24 threads) • Intel Core i7-13700K (2.5 GHz E-core base frequency, 3.4 GHz P-core base frequency, up to 4.2 GHz E-core Max Turbo frequency, up to 5.3 GHz P-coreMax Turbo frequency, 30 MB L3 cache, 8 P-cores and 8 E-cores, 24 threads) • Intel Core i9-13900 (1.5 GHz E-core base frequency, 2.0 GHz P-core base frequency, up to 4.2 GHz E-core Max Turbo frequency, up to 5.2 GHz P-coreMax Turbo frequency, 36 MB L3 cache, 8 P-cores and 16 E-cores, 32 threads) • Intel Core i9-13900K (2.2 GHz E-core base frequency, 3.0 GHz P-core base frequency, up to 4.3 GHz E-core Max Turbo frequency, up to 5.4 GHz P-coreMax Turbo frequency, 36 MB L3 cache, 8 P-cores and 16 E-cores, 32 threads) |
| Form Factor : | Mini |
| Maximum memory : | 64 GB DDR5-4800 ECC SDRAM; 64 GB DDR5-4800 non-ECC SDRAM; 64 GB DDR5-5600 ECC SDRAM; 64 GB DDR5 5600 non-ECC SDRAM Transfer rates up to 5600 MT/s. |
| Memory slots : | 2 SODIMM |
| Internal storage : | 512 GB up to 4 TB HP Z Turbo Drive PCIe NVMe M.2 SSD, 512 GB up to 4 TB HP Z Turbo Drive PCIe NVMe Opal 2 M.2 SSD, 256 GB up to 1 TB PCIe NVMe Value M.2 SSD |
| Audio : | Realtek ALC 3205-VA2-CG, 2.0W internal mono speaker |
| Expansion slots : | 2 M.2 2280 PCIe 4 x 4; 1 M.2 2230 for WLAN; 1 PCIe 4 x 8 (PCIe Low Profile connector) |
| Ports and Connectors : | • Side: 1 headphone/microphone combo; 1 SuperSpeed USB Type-A 10Gbps signaling rate (1 charging); 2 SuperSpeed USB Type-C 20Gbps signaling rate; • Rear: 1 RJ-45; 2 DisplayPort 1.4; 3 SuperSpeed USB Type-A 10Gbps signaling rate; Optional Ports: Flex IO left side – choose one of the following options: 1 DisplayPort 1.4 HBR3, 1 HDMI 2.0b, 1 VGA, 1 Dual SuperSpeed USB Type-A 5Gbps signaling rate, 1 SuperSpeed USB Type-C 10Gbps signaling rate (USB Power Delivery, Alt Mode DisplayPort), 1 GbE LAN, 1 Thunderbolt (40Gbps signaling rate) with SuperSpeed USB Type-C 10Gbps signaling rate, 2.5 GbE LAN. 10GbE LAN (10GBase-T), USB-based Serial port option, 1GbE Fiber LCNIC; Flex IO left side – choose one of the following options: 1 DisplayPort 1.4 HBR3, 1 HDMI 2.0b, 1 VGA, 1 Dual SuperSpeed USB Type-A 5Gbps signalingrate, 1 SuperSpeed USB Type-C 10Gbps signaling rate (USB Power Delivery, Alt Mode DisplayPort), 1 GbE LAN, 1 Thunderbolt (40Gbps signaling rate) with SuperSpeed USB Type-C 10Gbps signaling rate, 2.5 GbE LAN. 10GbE LAN(10GBase-T), USB-based Serial port option, 1GbE Fiber LC NIC,Optional cards with PCIe bracket |
| Keyboard : | HP Wired Desktop 320K keyboard; HP Wired Desktop 320MK Mouse and Keyboard; HP 125 Wired Keyboard; HP 655 Wireless Keyboard and mouse combo; HP 975 Wireless Keyboard; HP 455 Programmable Wireless Keyboard |
| Mouse : | HP Wired Desktop 320M mouse; HP wired desktop 128 laser mouse; HP 125 Wired Mouse; HP Creator 935 Black Wireless Mouse |
