Lenovo ThinkSystem SR650 v2 Models Features Overview Specification Media Videos Reference

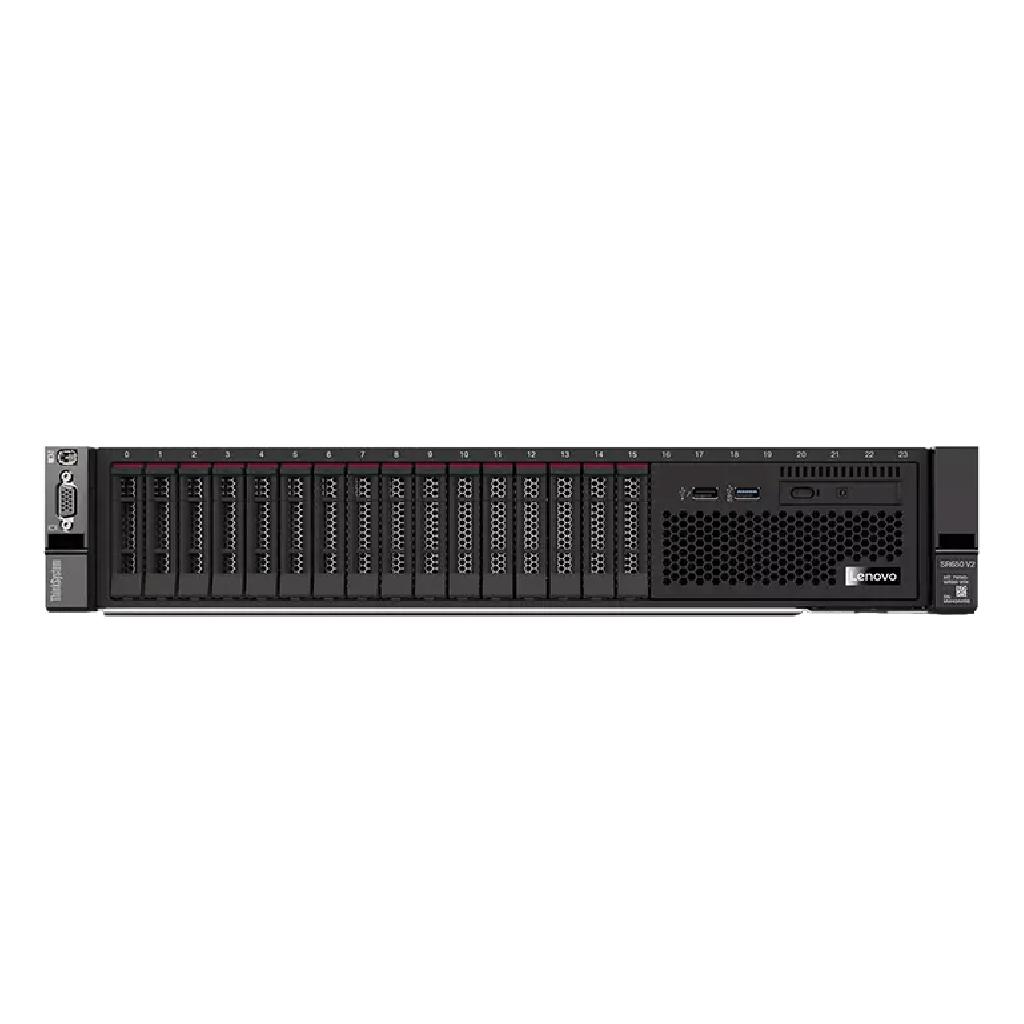

The Lenovo Think System SR650 V2 is an ideal 2-socket 2U rack server for small businesses up to large enterprises that need industry-leading reliability, management, and security, as well as maximizing performance and flexibility for future growth. The SR650 V2 is designed to handle a wide range of workloads, such as databases, virtualization and cloud computing, virtual desktop infrastructure (VDI), infrastructure security, systems management, enterprise applications, collaboration/email, streaming media, web and HPC. This product guide provides essential pre-sales information to understand the Think System SR650 V2 server, its key features and specifications, components and options and configuration guidelines. This guide is intended for technical specialists, sales specialists, sales engineers, IT architects and other IT professionals who want to learn more about the SR650 V2 and consider its use in IT solutions.

Product Variants

Discover the streamlined product portfolio

7Z73A03DEA
Processor Intel Xeon Silver 4310
Memory 32 GB (1 x 32 GB)
Storage 8 SFF SAS/SATA HDD
Storage Controller RAID 940-8i 4GB Flash PCIe Gen4 12Gb Adapter
Network Controller : LOM adapter installed in the OCP 3.0 slot; PCIe adapters
Power 750 W
Form Factor 2U Rack
Dimensions 445 x 764 x 87 mm
Weight 38.8 kg
Warranty 3-year Parts, 3-year Labor, 3-year on-site support
Action Get a Quote Shop Now

Features

Did you know?

The SR650 v2 server features an AnyBay design that allows a choice of drive interface types in the same drive bay: SAS drives, SATA drives, or U.2 NVMe PCIe drives. The SR650 v2 server offers onboard NVMe PCIe ports that allow direct connections to the U.2 NVMe PCIe SSDs, which frees up I/O slots and helps lower NVMe solution acquisition costs. The SR650 server is designed to meet ASHRAE A4 standards (up to 45 °C [113 °F]) in select configurations, which enable customers to lower energy costs, while still maintaining world-class reliability. The SR650 server delivers outstanding memory performance with Performance+ 2933 MHz DIMMs, which is achieved by supporting two-DIMMs-per-channel configurations at speeds up to 10% faster than the Intel specification defines, while still maintaining world-class reliability.

Scalability and performance

The SR650 v2 server offers numerous features to boost performance, improve scalability, and reduce costs:

  • • Support for up to two processors, 56 cores, and 112 threads allows to maximize the concurrent execution of multithreaded applications.
  • • Intelligent and adaptive system performance with energy efficient Intel Turbo Boost 2.0 Technology allows CPU cores to run at maximum speeds during peak workloads by temporarily going beyond processor thermal design power (TDP).
  • • Intel Hyper-Threading Technology boosts performance for multithreaded applications by enabling simultaneous multithreading within each processor core, up to two threads per core.
  • • Intel Virtualization Technology integrates hardware-level virtualization hooks that allow operating system vendors to better utilize the hardware for virtualization workloads.
  • • Intel Speed Select Technology provides improvements in server utilization and guaranteed per-core performance service levels with more granular control over processor performance.
  • • Intel Deep Learning Boost (Vector Neural Network Instruction set [VNNI]) is designed to deliver significant, more efficient Deep Learning (Inference) acceleration for high-performance Artificial Intelligence (AI) workloads.
  • • Intel Advanced Vector Extensions 512 (AVX-512) enable acceleration of enterprise-class and high performance computing (HPC) workloads.
  • • Helps maximize system performance for data intensive applications with up to 2933 MHz memory speeds and up to 3 TB of memory capacity with 3DS RDIMMs.
  • • Boosts the performance of data-intensive applications and delivers consistent service levels at scale for virtualized and cloud environments by using the innovative persistent memory technology that provides a unique combination of affordable large memory capacity and non-volatility for up to 7.5 TB of total server memory capacity, including 3DS RDIMMs and DCPMMs (DC persistent memory modules).
  • • Offers flexible and scalable internal storage in a 2U rack form factor with up to 24 x 2.5-inch and 2 x 3.5-inch drives for performance-optimized configurations or up to 14 x 3.5-inch drives for capacity-optimized configurations, providing a wide selection of SAS/SATA HDD/SSD and PCIe NVMe SSD types and capacities.
  • • Provides flexibility to use SAS, SATA, or NVMe PCIe drives in the same drive bays with an AnyBay design.
  • • Provides I/O scalability with a LOM slot, PCIe 3.0 slot for an internal storage controller, and up to six PCI Express (PCIe) 3.0 I/O expansion slots in a 2U rack form factor.
  • • Reduces I/O latency and increases overall system performance with Intel Integrated I/O Technology that embeds the PCI Express 3.0 controller into the Intel Xeon Processor Scalable Family.
Availability and serviceability

The SR650 v2 server provides many features to simplify serviceability and increase system uptime:

  • • Provides easy access to upgrades and serviceable parts (such as processors, memory DIMMs, and adapter cards) with tool-less cover removal.
  • • Offers data protection and greater system uptime with hot-swap drives supporting basic or advanced RAID redundancy.
  • • Provides availability for business-critical applications with redundant hot-swap power supplies and redundant hot-swap system fans.
  • • Simplifies servicing, speeds up problem resolution, and helps improve system availability with light path diagnostics.
  • • Allows preventive actions in advance of possible failure, thereby increasing server uptime and application availability with Proactive Platform Alerts (including PFA and SMART alerts) for processors, voltage regulators, memory, internal storage (SAS/SATA HDDs and SSDs, NVMe SSDs, M.2 storage, flash storage adapters), fans, power supplies, RAID controllers, and server ambient and sub-component temperatures.
  • • Continuously monitors system parameters, triggers alerts, and performs recovery actions in case of failure to minimize downtime with Built-in XClarity Controller (XCC).
  • • Provides quick access to system status, firmware, network, health, and alerts information via Virtual Operator Panel from the XClarity Mobile App running on the Android or iOS mobile device that is connected to the front USB port with XClarity Controller access.
  • • Speeds up troubleshooting tasks to reduce service time with diagnostics built into the XClarity Provisioning Manager.
Energy efficiency

The SR650 v2 server offers the following energy-efficiency features to save energy, reduce operational costs, increase energy availability and contribute to the green environment:

  • • Delivers impressive compute power per watt, featuring 80 PLUS Titanium and Platinum redundant power supplies.
  • • Enables customers to lower energy costs with design to meet ASHRAE A4 standards in select configurations.
  • • Reduces power drawn with Intel Intelligent Power Capability that powers individual processor elements on and off as needed.
  • • Helps reduce power consumption with variable speed fans.
  • • Helps achieve lower heat output and reduced cooling needs with Lenovo XClarity Energy Manager that provides advanced data center power notification, analysis, and policy-based management.
Manageability and security

Powerful systems management features simplify local and remote management of the SR650 server and deliver enterprise-class data protection:

  • • Provides advanced service processor control, monitoring, and alerting functions with XClarity Controller, a next generation service processor.
  • • Improves Unified Extensible Firmware Interface (UEFI) system setup, configuration, updates, simplified error handling, and operating system deployment with the embedded XClarity Provisioning Manager.
  • • Offers XClarity Essentials software tools that can help you set up, use, and maintain the server.
  • • Increases uptime, reduces costs, and improves productivity through advanced server management capabilities with Lenovo XClarity Administrator that provides comprehensive hardware management.
  • • Provides on-the-go monitoring and management of devices in XClarity Administrator from anywhere with the Lenovo XClarity mobile app, which can help improve efficiency and reduce downtime risks.
  • • Centralizes infrastructure resource management with Lenovo XClarity Integrator's for VMware vCenter and Microsoft System Center, extending XClarity Administrator features to virtualization management software tools and enabling users to deploy and manage infrastructure end-to-end.
  • • Offers advanced cryptographic functionality (such as digital signatures and remote attestation) with an integrated Trusted Platform Module (TPM) or optional Trusted Cryptographic Module (TCM) or Nationz TPM (available only in PRC).
  • • Keeps user data safe with Lenovo Business Vantage, a security software tool suite designed to work with the Trusted Cryptographic Module (available only in PRC).
  • • Offers enterprise-class data protection with advanced RAID and optional self-encrypting drives.
  • • Provides faster, stronger encryption with industry-standard AES NI support. Helps prevent certain classes of malicious buffer overflow attacks with Intel Execute Disable Bit functionality, when combined with a supporting operating system.
  • • Enhances security through hardware-based resistance to malicious software attacks with Intel Trusted Execution Technology, allowing an application to run in its own isolated space, protected from all other software running on a system.

Overview

Lenovo ThinkSystem SR650 V2

Lenovo ThinkSystem SR650 V2 is an ideal 2-socket 2U rack server for small businesses up to large enterprises that need industry-leading reliability, management, and security, as well as maximizing performance and flexibility for future growth. The SR650 V2 server is designed to handle a wide range of workloads, such as databases, virtualization and cloud computing, virtual desktop infrastructure (VDI), enterprise applications, collaboration/email, and business analytics and big data. Featuring the second generation of Intel Xeon Processor Scalable Family (Xeon SP Gen 2), the SR650 V2 server offers scalable performance, storage capacity, and I/O expansion. The SR650 V2 server supports up to two processors, up to 2933 MHz memory speed, up to 3 TB of memory capacity with TruDDR4 DIMMs or up to 7.5 TB of memory capacity with a combination of True DDR4 DIMMs and Intel DC persistent memory modules (DCPMMs), up to 24 x 2.5-inch or 14 x 3.5-inch drive bays with an extensive choice of NVMe PCIe SSDs, SAS/SATA SSDs, and SAS/SATA HDDs, and flexible I/O expansion options with a LOM slot, a dedicated storage controller slot, and up to 6x PCIe expansion slots. The SR650 server offers basic or advanced hardware RAID protection and a wide range of networking options, including selectable LOM, ML2, and PCIe network adapters. The next-generation Lenovo XClarity Controller, which is built into the SR650 server, provides advanced service processor control, monitoring, and alerting functions.

Specification

Processor: Up to 2 x 3rd generation Intel Xeon Scalable processors, up to 40 cores, up to 270W TDP
Memory: 32 x DDR4 memory slots; Maximum 4TB using 32 x 128GB 3DS RDIMMs; Supports up to 16 x Intel Optane Persistent Memory 200 Series modules (Pmem)
Drive Bays: Up to 20 x 3.5-inch or 40 x 2.5-inch drives; Up to 32 x NVMe drives supported with NVMe switch adapters; 2 x M.2 boot drives (RAID 1); 2 x 7mm boot drives in rear (RAID)
Expansion Slots: Up to 8 x PCIe 4.0 slots, 1 x OCP 3.0 slot, 1 x cabled HBA/RAID adapter that doesn't occupy a standard PCIe slot
GPUs: Up to 8 x single-width GPUs or 3 x double-width GPUs
Network Interface: LOM adapter installed in the OCP 3.0 slot; PCIe adapters
Ports: Front: 1 x USB 3.1 G1, 1 x USB 2.0 with XClarity Mobile support, 1 x VGA (optional), 1 x external diagnostics, handset port Rear: 3 x USB 3.1 G1, 1 x VGA, 1 x RJ-45 (management), 1 x Serial port (optional)
HBA/RAID Support: SW RAID standard; optional HW RAID with/without cache or 8/16-port SAS HBAs
Form Factor: 2U rack server
Power: Dual redundant power supplies (up to 1800W Platinum)
Systems Management: Lenovo XClarity Controller
OS: Support Microsoft, SUSE, Red Hat, VMware. Visit lenovopress.com/osig for details.
Warranty: 1-year and 3-year customer replaceable unit and onsite service, next business day 9x5; optional service upgrades

Media


Videos

Reference

Lenovo ThinkSystem SR650 V2-Datasheet
