The Dell EMC PowerEdge T350 addresses evolving compute demands with an easy-to-manage tower server designed for businesses looking for affordable enterprise features. Buy DELL T350 Server from Promise Computer Technology – DELL Authorized Partner in Dubai.
The Dell™ PowerEdge™ T350 is Dell’s latest single-socket, entry-level 4.5U scalable tower server that is purposely designed toserve general-purpose business applications for both Small and Medium Businesses (SMB) and Remote Office / Branch Office(ROBO).

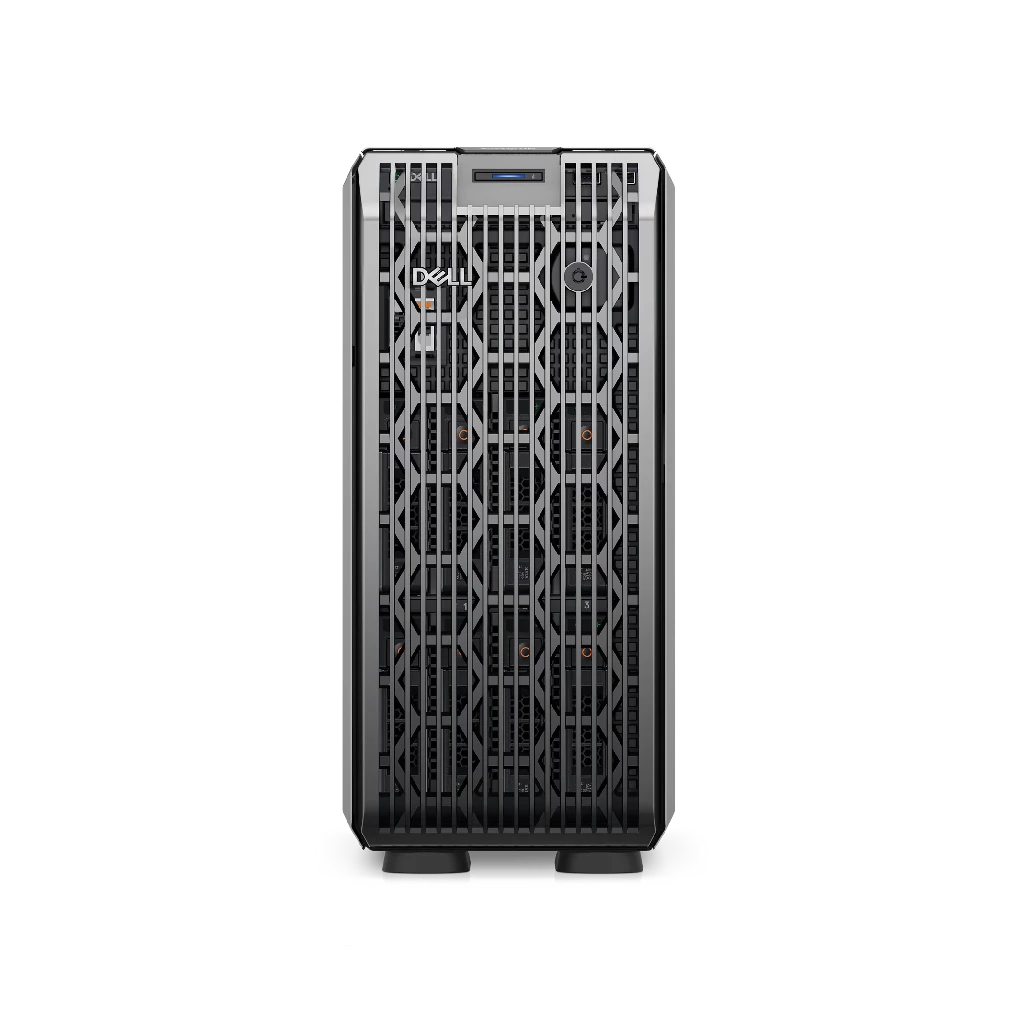

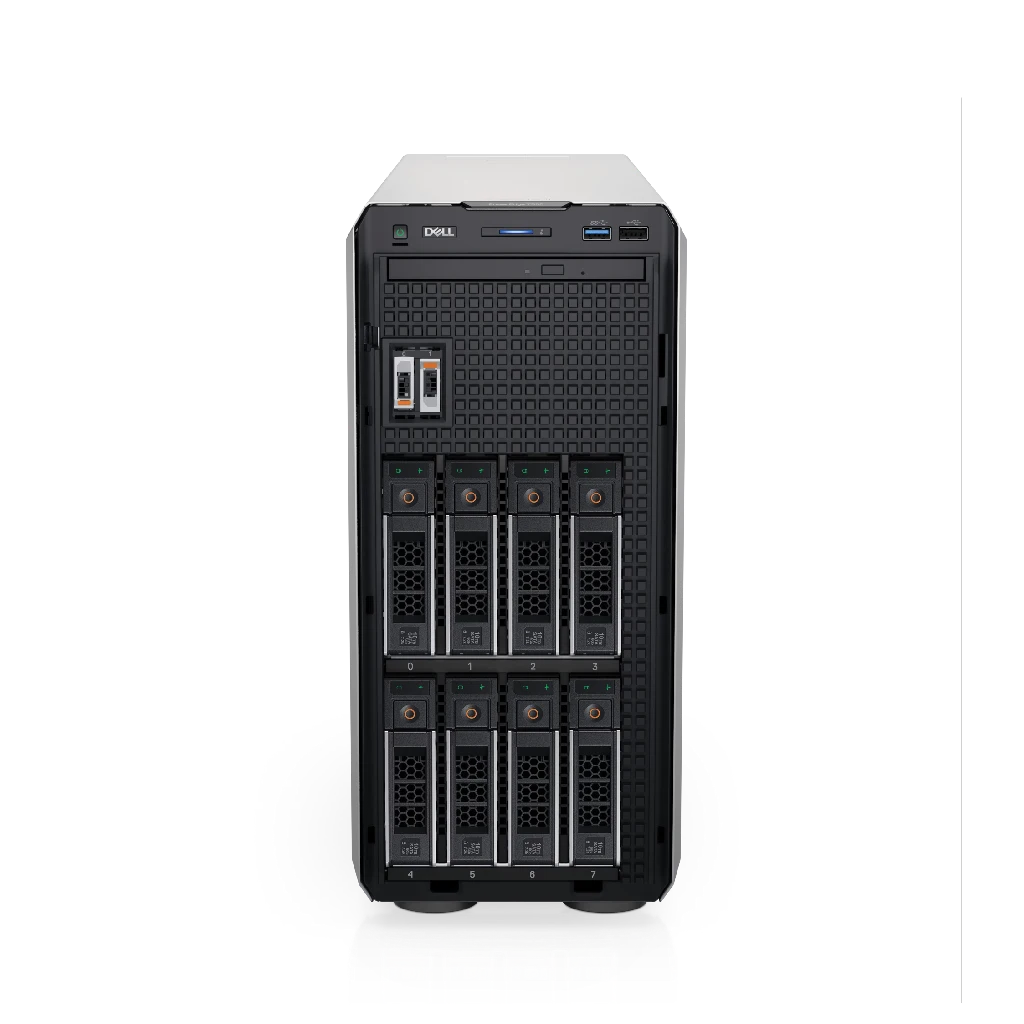

Front View
1.
BOSS S2 module (optional)
2.
Power button
3.
Information tag
4.
System health and ID indicator
5.
USB 3.0 port
6.
iDRAC Direct port (Micro-AB USB)
7.
Optical drive (optional)
8.
Drives (8)
Rear View
1.
Power supply unit (PSU 1)
2.
Power supply unit (PSU 2)
3.
PCIe expansion card slots (4)
4.
USB 2.0 port (4)
5.
System identification button
6.
NIC port (1)
7.
USB 3.0 port (1)
8.
USB 2.0 port (1)
9.
NIC port (2)
10.
iDRAC ethernet port
11.
VGA port
12.
Serial port
Dell Poweredge T350 - Features
Protect your data assets and infrastructure with proactive resilience
The Dell EMC PowerEdge T350 server is designed with a cyber-resilient architecture, integrating security deeply intoevery phase in the lifecycle, from design to retirement.
Increase efficiency and accelerate operations with autonomous compute infrastructure
The Dell EMC OpenManage systems management portfolio tames the complexity of managing and securing ITinfrastructure.Using Dell Technologies’intuitive end-to-entools, IT can deliver a secure,integrated experience by reducing process and information silos in order to focus on growing the business. The Dell EMC OpenManage portfolio is the key to your innovation engine, unlocking the tools and automation that help you scale, manage, and protect your technology environment
One Intel Xeon E-2300 Series processor with up to 8 cores, or Intel Pentium processors with up to 2 cores
Memory
• 4 DDR4 DIMM slots, supports UDIMM 128 GB max, speeds up to 3200 MT/s • Supports registered ECC DDR4 DIMMs only Note: For Pentium processor, maximum memory speed supported is 2666 MT/s
Storage controllers
• Internal Controllers (RAID): PERC H755, PERC H355, PERC H345, HBA355i, S150 • Internal Boot: Internal Dual SD Module or Boot Optimized Storage Subsystem (BOSS-S2): HWRAID 2 x M.2 SSDs or internal USB 3.0 • External PERC (RAID): N/A • External HBAs (non-RAID): HBA355e
Drive Bays
Front bays: • Up to 4 x 3.5-inch SAS/SATA (HDD/SSD) • Up tp 8 x 3.5-inch SAS/SATA (HDD/SSD) • Max 160 TB on 8 HDD configuration Note: Supports 2.5-inch drive in 3.5-inch hybrid drive carrier.
Power Supplies
• 450 W Bronze (cabled) AC/100 - 240 V • 600 W Platinum AC/100 - 240 V • 600 W DC/240 V • 700 W Titanium AC/100 - 240 V • 700 W DC/240 V
Cooling Options
Air cooling
Fans
• System fan • one non hot swap fan
Dimensions
• Height – 382.5 mm (15.06 inches) • Width – 175 mm (6.89 inches) • Depth – 581.12 mm (22.88 inches) with bezel
Form Factor
4.5U tower server
Embedded Management
iDRAC9 • iDRAC Direct • iDRAC RESTful with Redfish • iDRAC Service Module
OpenManage Integrations: • BMC Truesight • Microsoft System Center • Red Hat Ansible Modules • VMware vCenter and vRealize Operations Manager OpenManage Connections: • IBM Tivoli Netcool/OMNIbus • IBM Tivoli Network Manager IP Edition • Micro Focus Operations Manager • Nagios Core • Nagios XI
Security
• Cryptographically signed firmware • Secure Boot • Secure Erase • Silicon Root of Trust • System Lockdown (requires iDRAC9 Enterprise or Datacenter) • TPM 1.2/2.0 FIPS, CC-TCG certified, TPM 2.0 China NationZ
Embedded
NIC 2 x 1 GbE LOM
GPU Options
Not supported
Ports
Front Ports: • 1 x Dedicated iDRAC (Micro-AB USB) port • 1 x USB 3.0 Rear Ports: • 5 x USB 2.0 • 1 x iDRAC dedicated port • 1 x USB 3.0 • 1 x VGA • 1 x Serial Internal Ports: • 1 x USB 3.0 (optional)
PCIe
2 x Gen 4 PCIe slots and 2 x Gen 3 PCIe slot
Operating System and Hypervisors
Canonical Ubuntu Server LTS • VMware ESXi • Microsoft Windows Server with Hyper-V • SUSE Linux Enterprise Server • Red Hat Enterprise Linux
OEM-ready version available
From bezel to BIOS to packaging, your servers can look and feel as if they were designed and built by you.
