APC Easy UPS On-Line SRV RM 1000VA 230V – SRV1KRILRK Models Features Overview Specification Media Videos Reference

APC Easy UPS On-Line SRV Rack Mount 1000VA 230V is high quality, Double-conversion On-line UPS designed for essential power protection needs even in the most unstable power conditions.

Product Variants

Discover the streamlined product portfolio

SRV1KRILRK
Output capacity 800 Watts / 1.0kVA
Output Voltage 230V
Input Voltage 160 – 280V
Battery 516 VAh runtime
Battery type Lead-acid battery
Battery Life 3 - 5 Year
Topology Double conversion online
Operating Temperature 0 - 40°C
Dimensions 17.2 x 43.8 x 41.2cm
Weight 27.0kg
Warranty 2 Years repair or replace
Action Get a Quote Shop Now

Features

Features
  • ECO Mode: Operating mode that by-passes unused electrical components in good power conditions to achieve high operating efficiency without sacrificing protection
  • High efficiency: High efficiency rates that remain stable even at lower operating power levels
  • Generator compatible: Ensures clean, uninterrupted power to protected equipment when generator power is used.
  • Intuitive LCD interface: Provides clear and accurate information in multiple languages with the ability to configure the UPS locally with easy to use navigation keys.
  • Input Power Factor Correction: Minimizes installation costs by enabling the use of smaller generators and cabling.
  • Pure sine wave output on battery: Simulates utility power to provide the highest degree of compatibility for active PFC (power factor corrected) servers and sensitive electronics.
  • Management Software: Allows you to easily monitor your utility power and manage your UPS.
  • Double conversion on-line topology: Guarantees a consistently high level of power quality. Any disturbances on the distribution waveform are regenerated via the zero transfer time AC to DC then DC to AC conversion process. The battery is only used as a back-up source.
  • Allows the user to manage the UPS functions, schedule automatic shutdown and monitor the power grid occurrences through an interactive interface that ensures an easy and intuitive monitoring: Management Software
  • Safety-agency approved: Ensures the product has been tested and approved to work safely with the connected service provider equipment and within the specified environment.
Manageability
  • Serial connectivity: Provides management of the UPS via a serial port.
  • Network manageable: Most models provide remote power management options of the UPS over the network. Many do not have NMC embedded.
  • LED indicators: Provide easy-to-read status of the unit and utility power conditions.
  • LCD graphics display: Text and mimic diagrams that display modes of operation, system parameters and alarms.
  • SmartSlot: Customize UPS capabilities with management cards.

Overview

Batteries & Runtime

Efficiency : View Efficiency Graph

SRV1KRILRK – APC Easy UPS On-Line SRV Rack Mount 1000VA 230V

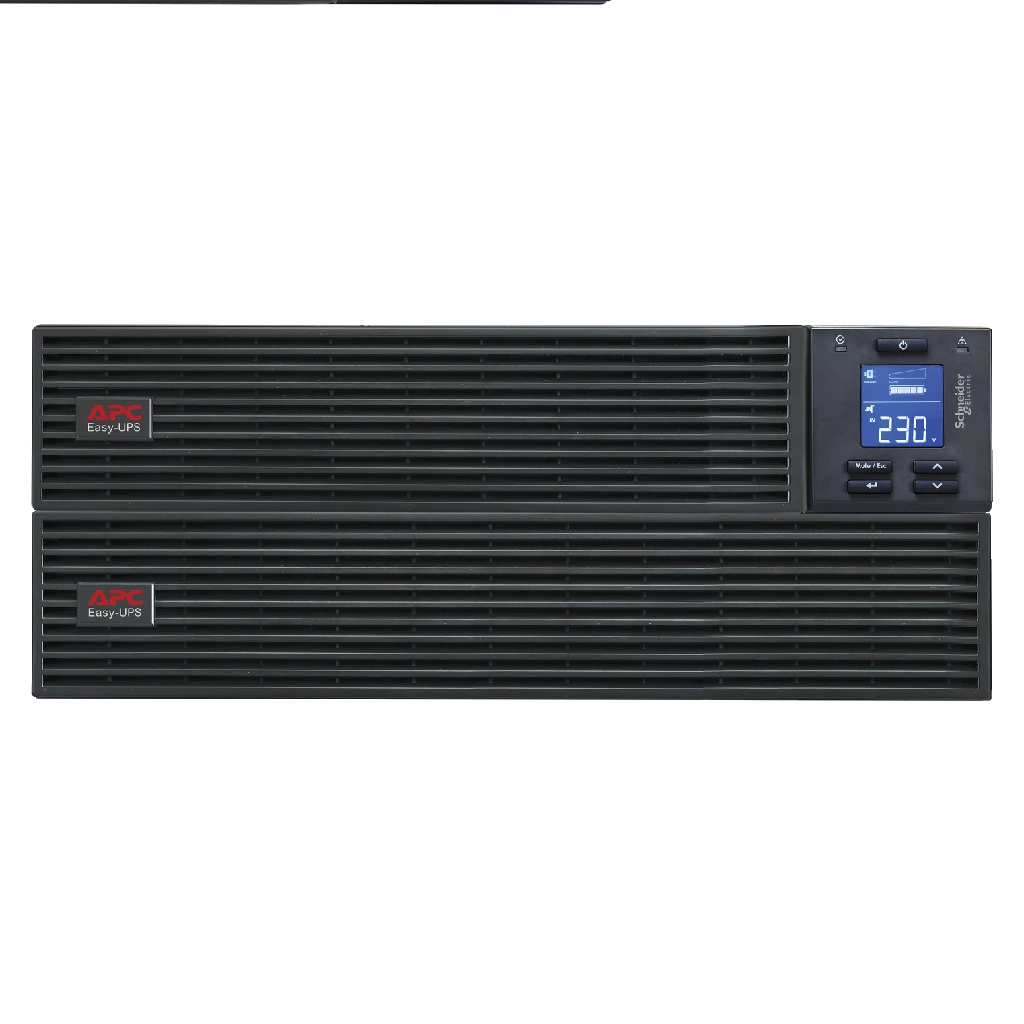

Front View :

1. UPS Power On/Off button 2. Status LED
3. LCD Display 4. Mute/Esc button
5. Enter button 6. Up / Down button
7. Alarm LED

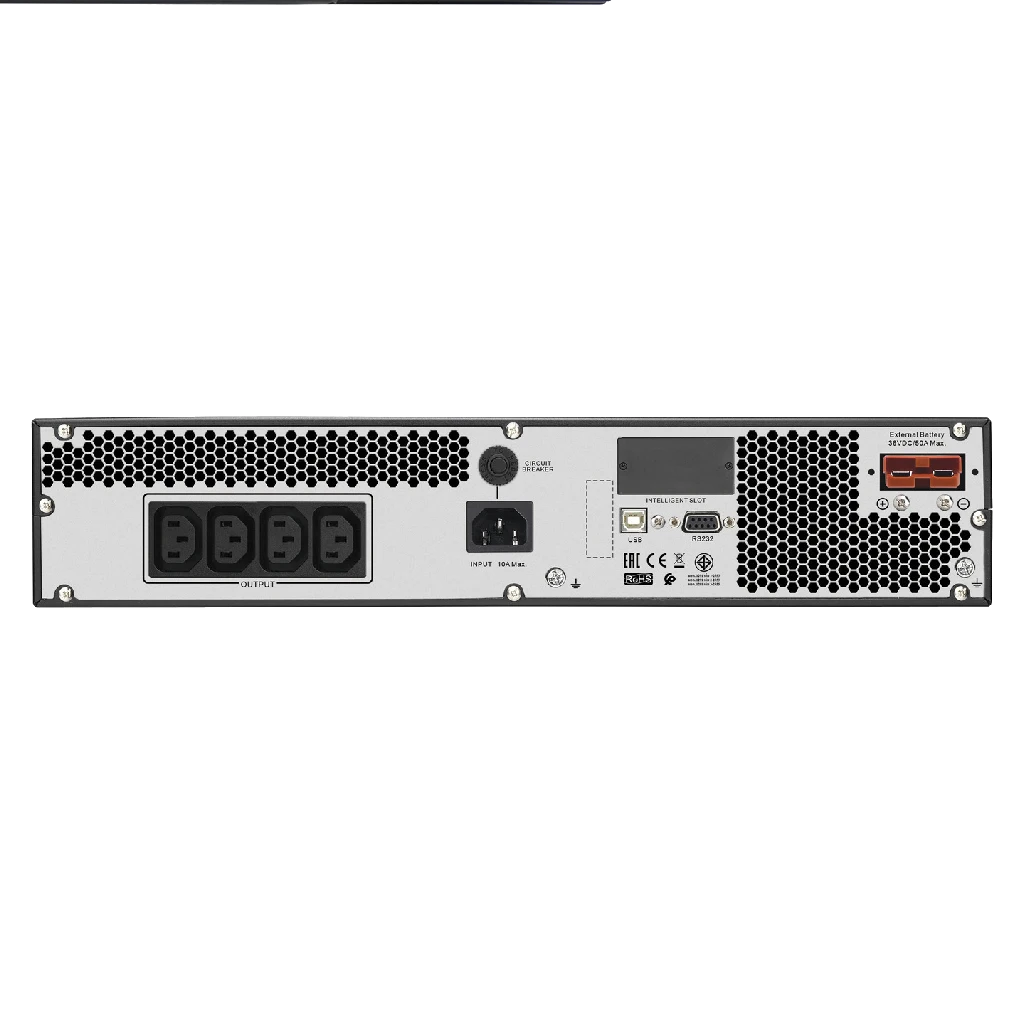

Rear View :

1. AC Input 2. Input Circuit Breaker
3. USB Port 4. RS-232
5. Intelligent Card Slot 6. Battery Connector
7. Outlet Group (refer to outlet type
and quantity in the left side)		 8. Ground Screw

Specification

Provided equipment: Basic UPS signalling RS-232 cable CD with software Rack mounting brackets Rack mounting support rails User manual USB cable
Number of tare power: 28 W
Number of power module free slots: 0
Number of power module filled slots: 0
Redundant: No
Number of rack unit: 4U
Depth: 41.2 cm
Network frequency: 40...70 Hz
Input voltage limits: 160...280 V
Inputvolt_other: 220 V
Rated power in W: 800 W
Maximum configurable power in W: 800 W
Battery type: Lead-acid battery
Number of battery filled slots: 0
Battery recharge time: 4 h
Additional information: Configurable for 220 : 230 or 240 nominal output voltage
Warranty: 2 years repair or replace

Media


Videos

Reference

APC Easy UPS On-Line SRV RM 1000VA – Datasheet
