SRT192BP2

+/- 192 V

Lead-acid battery

Stand alone battery stack

3 - 5 Years

Rack-mounted with kit

0 - 40°C

43.2 x 13.0 x 68.27cm

91.0 kg

2 Years repair or replace

Overview Features Specification Media Videos Reference

Overview

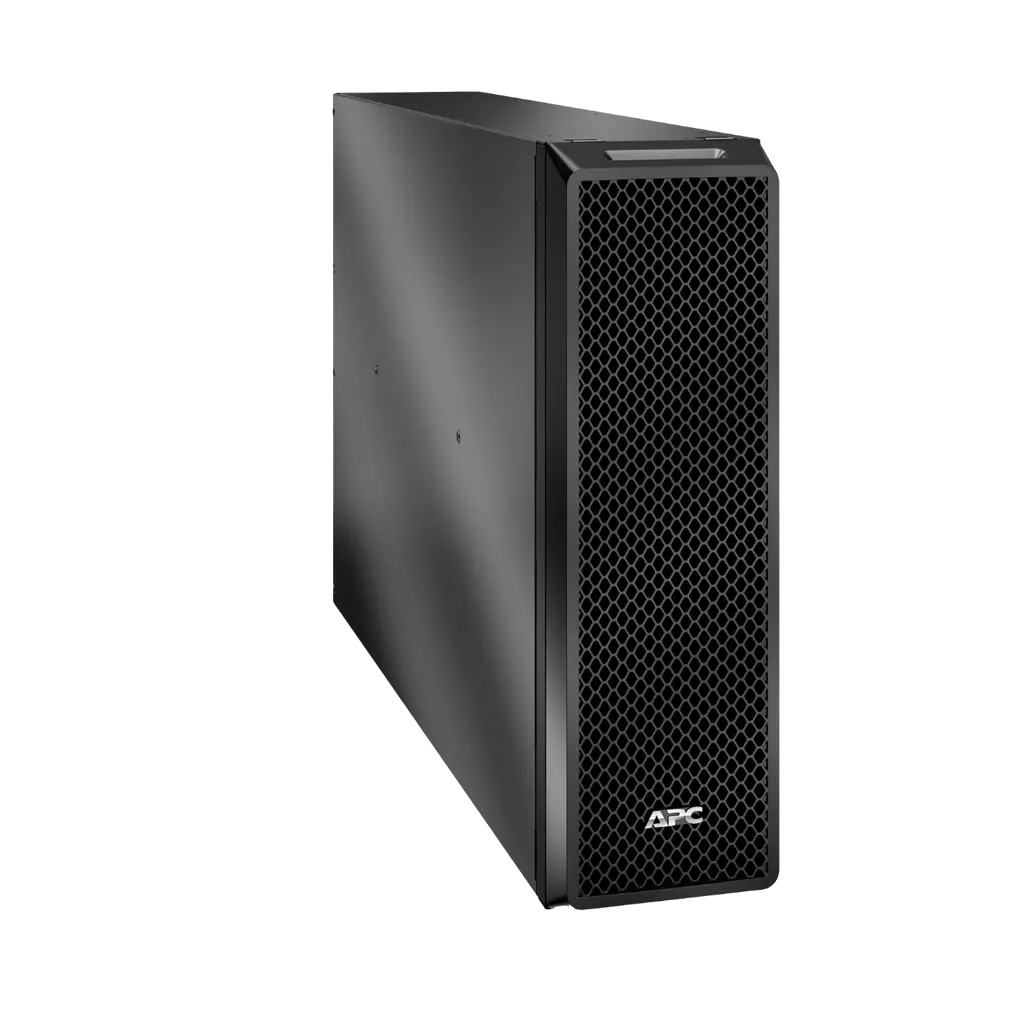

SRT192BP2 – APC Smart-UPS SRT 192V 8kVA and 10kVA Battery Pack

Remove Battery Modules

Rack-Mount Installation

1 : Secure two brackets to the XLBP. Use four screws in each bracket.

2 : Install two cage nuts.

3 : Rest the XLBP on the rail shelves. Slide the XLBP into the rack.

4 : Secure the XLBP to the rack. Use two screws in each bracket.

5 : Install four battery modules.

6 : Connect four battery modules.

7 : Reinstall the battery compartment doors. Tighten the thumbscrews to secure the doors.

8 : UPS models SRT5K or SRT6K with one XLBP Install one XLBP bezel and one UPS bezel.

Connect Ground and Battery Cables

Connect external battery pack cables

Connect ground cables

Features

Availability

Multiple battery pack configuration: Connect up to 10 battery packs for extended runtime applications.
Advanced battery management included: Embedded monitoring at the cell, module, and cabinet level provides a clear picture of battery runtime and health, with the added benefits of predictable, consistent runtime performance and stable cell health.

Specification

Battery Volt-Amp-Hour Capacity:	1920
Battery Type:	Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof
Battery mounting:	Stand alone battery stack
Battery mounting:	3 - 5
RBC Quantity:	2
Net Weight:	91.0 kg
Maximum Height:	432.0 mm
Maximum Width:	130.0 mm
Maximum Depth:	683.0 mm
Operating Environment:	0 - 40 °C
Storage Elevation:	0-15000 meters
Standard warranty:	2 years repair or replace

Media

Videos

Reference

APC Smart-UPS SRT 192V 8kVA 10kVA – Datasheet
