APC External Battery Pack – SRT192RMBP Models Features Overview Specification Media Videos Reference

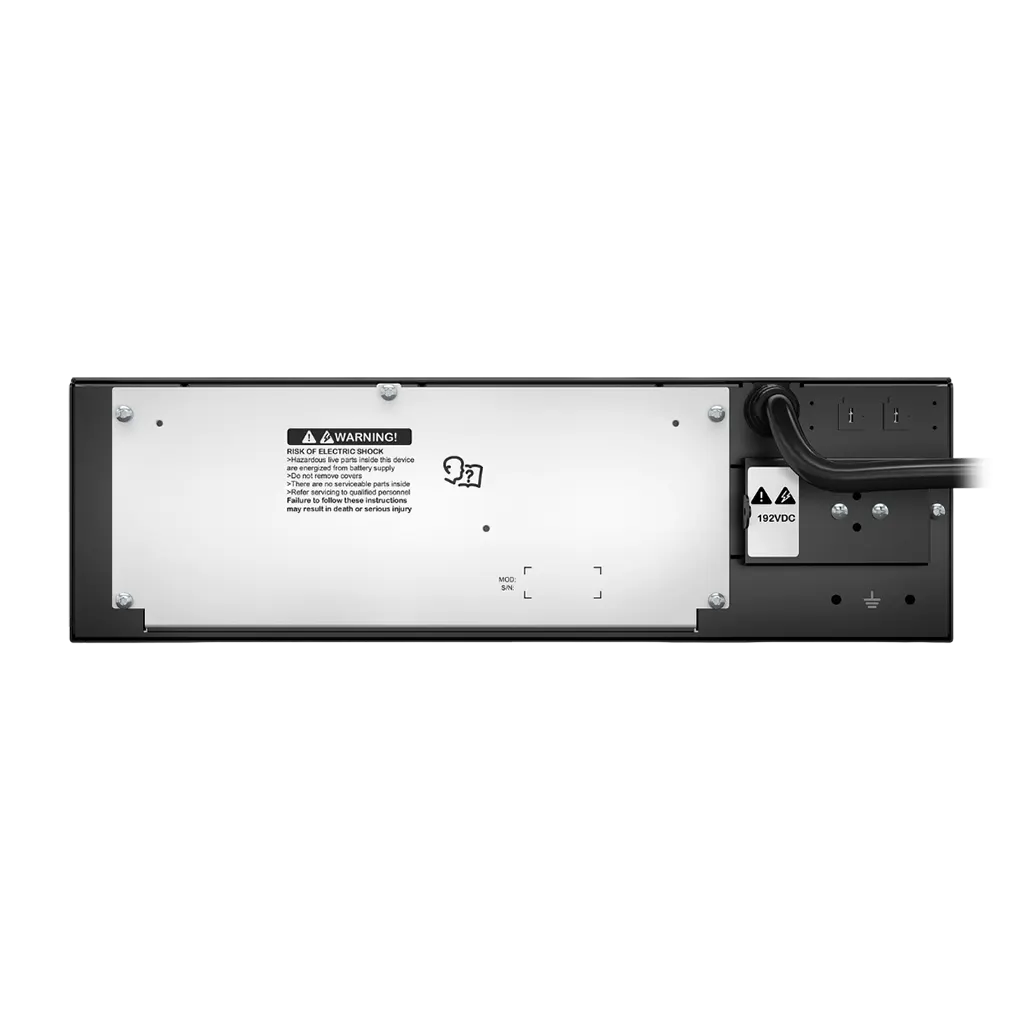

SRT192RMBP – APC Smart-UPS SRT 192V 5kVA and 6kVA RM Battery Pack in Dubai, UAE – Extended – Run battery systems provide flexible runtime to critical Smart – UPS applications.

Product Variants

Discover the streamlined product portfolio

SRT192RMBP
Output Voltage 192 V
Battery type Lead-acid battery
Battery mounting Stand alone battery stack
Battery Life 3 - 5 Years
Mounting mode Rack-mounted
Operating Temperature 0 - 40°C
Dimensions 13.0 x 43.2 x 68.27 cm
Weight 91.0 kg
Warranty 2 Years repair or replace
Action Get a Quote

Features

Availability
  • Multiple battery pack configuration: Connect up to 10 battery packs for extended runtime applications.
  • Advanced battery management included: Embedded monitoring at the cell, module, and cabinet level provides a clear picture of battery runtime and health, with the added benefits of predictable, consistent runtime performance and stable cell health.

Overview

SURT192RMBP - APC Smart-UPS RT192V RM Battery Pack 2 Rows

Rack-mount configuration

Install rack-mount brackets

Four flat head screws must be used to secure each rack-mount bracket to unit.

Install rail cleats

Two pan head screws must be used to secure each rail cleat to unit.

Install bezels

There is a single latch on each side of the UPS bezel.There are two latches on each side of the battery pack and XLBP bezels.

Install and connect battery modules

Connect all eight battery modules. Failure to do so may cause equipment damage

Install units in rack

Secure UPS, battery pack and XLBP in rack using cage nuts and ornamental screws included in package. Four ornamental screws and two cage nuts must be used to secure each unit. A cage nut must be used in the top hole of each rack-mount bracket when securing the unit in the rack. The bottom hole of each rack-mount bracket can be secured using an ornamental screw in the threaded hole.

Specification

Media

Videos

Reference

APC Smart-UPS SRT 192V 5kVA 6kVA RM – Datasheet
