Aruba Instant AP-515 (RW) Models Features Overview Specification Media Videos Reference

With an increasing number of mobile and Internet of Things (IOT) devices reliant on wireless access, networks must accommodate a diverse mixture of device types, applications and services.

Product Variants

Discover the streamlined product portfolio

Q9H62A
Input Voltage PoE / PoE+ or direct DC power
External I/O Ports HPE SmartRate RJ-45 port, 10/100/1000BASE-T
Connectivity IEEE 802.3af or 802.3
Interfaces HPE SmartRate port, 10/100/1000BASE-T Ethernet network interface, DC power interface, USB 2.0 host interface, Kensington security slot, Bluetooth 5 and Zigbee
Dimensions 46 x 200 x 200mm
Weight 810g
Warranty 1 Year
Action Get a Quote

Features

What’s New
  • The 510 series access points provide high performance Dual Radio 802.11ax AP with OFDMA and Multi-User MIMO (MU-MIMO).
  • Supports all mandatory and several optional 802.11ax features.
  • This series features maximum data rates of 4.8Gbps in the 5GHz band and 575Mbps in the 2.4GHz band (for an aggregate peak data rate of 5.4Gbps).
  • Includes Bluetooth Low Energy (BLE) and Zigbee radios for location and IoT use-cases.
Improved Efficiency
  • Aruba 510 Series Campus Access Points efficiently and simultaneously serve multiple clients, increasing data rates for both individual devices and as an overall system.
  • Multi-user transmission with downlink and uplink OFDMA increases user data rates and reduces latency, especially for large numbers of devices with short frames or low data-rate requirements, such as voice and IoT devices.
  • Multi-user capability with downlink multi-user MIMO improves network capacity by allowing multiple devices to transmit simultaneously.
  • As higher-performance 802.11ax access points drive more power consumption, the Aruba NetInsight GreenAP feature allows the 510 series access points to draw less power when it’s not being used, such as evenings when the buildings are empty.
High Performance
  • Aruba ClientMatch technology in the Aruba 510 Series Campus Access Point will automatically attempt to group 802.11ax capable devices onto available AP radios with equivalent capabilities.
  • Performance benefits of Orthogonal Frequency Division Multiple Access (OFDMA) are maximized. This means increased network performance and a boost in network capacity.
  • The 510 Series uses ArubaOS 8 AirMatch (machine learning technology) to automatically optimize the performance of a wireless network by tuning the radio frequencies (RF) of the access points.
  • The access points run on ArubaOS 8, delivering always-on networking via features like LiveUpgrade, Controller Clustering, and seamless fail-over.
IoT - ready
  • The Aruba 510 Series Campus Access Points helps make your network ready for the Internet of Things (IoT).
  • 802.11ax technology provides unique benefits for IoT devices ranging from dedicated channels in OFDMA that allows for simultaneous transmission of IoT connections with low latency, to power saving options with Target Wake Time (TWT) to saves battery life.
  • The 510 series supports an integrated Bluetooth Low-Energy (BLE) and Zigbee radio, as well as a USB port for maximum flexibility, providing secure and reliable connectivity for IOT devices and for implementing location services.

Overview

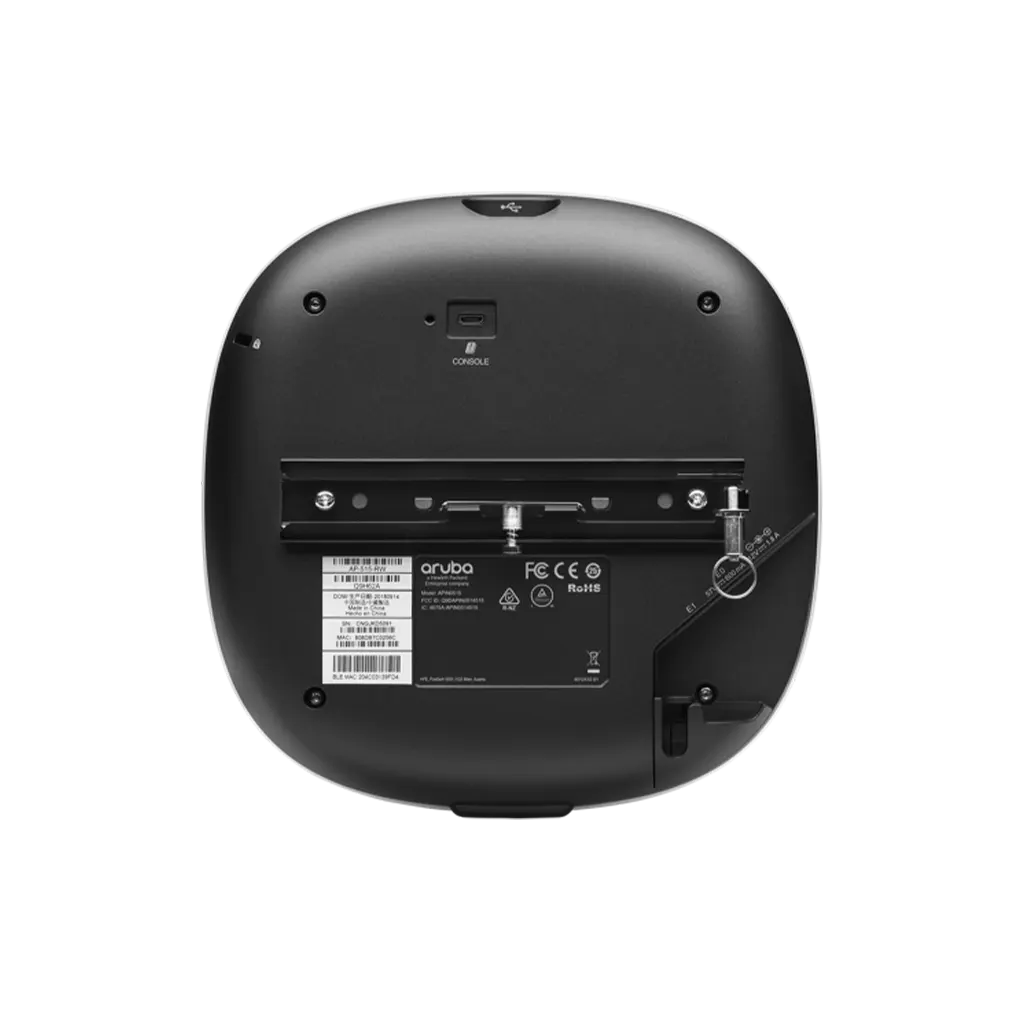

Aruba Instant AP-515 (RW) Access Points

With an increasing number of mobile and Internet of Things (IOT) devices reliant on wireless access, networks must accommodate a diverse mixture of device types, applications and services. The Aruba 510 Series Campus Access Points with 802.11ax technology efficiently deliver high-performance access to multiple clients and traffic types simultaneously in environments where density is an issue, increasing data rates for both individual devices and the overall system. The 510 Series supports maximum data rates of 4.8 Gbps in the 5 GHz band and 575 Mbps in the 2.4 GHz band, ideal for high-density environments such as schools, retail branches, hotels, and enterprise offices. In addition to 802.11ax standard capabilities, the 510 Series supports unique features like Aruba ClientMatch radio management and additional radios for location services and IOT applications, delivering an unsurpassed user experience in today’s all-wireless digital work environment.

Specification

Device Type: Radio access point
Ruggedized Design: Indoor
Width: 20 cm
Depth: 20 cm
Height: 4.6 cm
Weight: 810 g
Form Factor: In-ceiling
Connectivity Technology: Wireless
Data Transfer Rate: 4.8 Gbps
Line Coding Format: CCK, 64 QAM, 256 QAM, BPSK, QPSK, 16 QAM, OFDM, 1024 QAM, OFDMA
Data Link Protocol: IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, Bluetooth 5.0, IEEE 802.11ax (Wi-Fi 6)
Performance: Maximum data rate (2.4 GHz): 575 Mbps ¦ Maximum data rate (5 GHz): 4.8 Gbps ¦ Aggregate bandwidth: 5.4 Gbps
Capacity: Wireless clients per Wi-Fi radio: 256 ¦ OFDMA units: 16 ¦ BSSIDs per radio: 16

Media


Videos

Reference

Aruba Instant AP-515 (RW) – Datasheet
