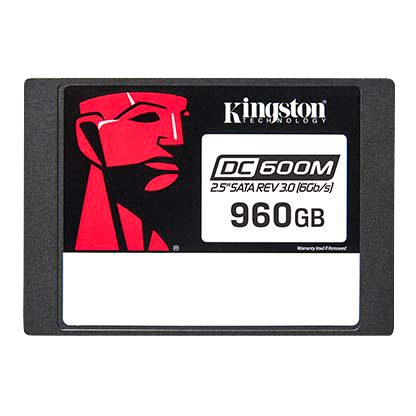

Kingston’s DC600M SSD is a fourth-generation data center SATA 3.0, 6Gbps SSD with 3D TLC NAND intended for “mixed use” workloads. The DC600M is suited for use in high-volume rack-mount servers and includes hardware-based on-board PLP.
| SEDC600M/7680G | SEDC600M/3840G | SEDC600M/1920G | SEDC600M/960G | SEDC600M/480G | |
|---|---|---|---|---|---|
| Capacity | 7680 GB | 3840 GB | 1920 GB | 960 GB | 480 GB |
| Read Speed | 560MBs | 560MBs | 560MBs | 560MBs | 560MBs |
| Write Speed | 530MBs | 530MBs | 530MBs | 530MBs | 470MBs |
| Interfaces | SATA | SATA | SATA | SATA | SATA |
| Form Factor | 2.5 inch | 2.5 inch | 2.5 inch | 2.5 inch | 2.5 inch |
| Dimensions | 69.9 x 100 x 7 mm | 69.9 x 100 x 7 mm | 69.9 x 100 x 7 mm | 69.9 x 100 x 7 mm | 69.9 x 100 x 7 mm |
| Weight | 92.34 g | 92.34 g | 92.34 g | 92.34 g | 92.34 g |
| Warranty | 5 year warranty | 5 year warranty | 5 year warranty | 5 year warranty | 5 year warranty |
| Action | Get a Quote Shop Now | Get a Quote Shop Now | Get a Quote Shop Now | Get a Quote Shop Now | Get a Quote Shop Now |
Optimised to meet the high demands of server RAID applications with low latency and IO consistency as the key design criteria.
Hardware-based PLP
Power loss capacitors to protect user data against unexpected power loss and enhance performance.
Delivers excellent quality of service (QoS)
Optimised performance predictability to meet service-level agreements (SLAs).
Capacities up to 7680GB
Upgrade and manage storage with capacities up to 7680GB.
Kingston’s DC600M SSD is a fourth-generation data center SATA 3.0, 6Gbps SSD with 3D TLC NAND intended for “mixed use” workloads. The DC600M is suited for use in high-volume rack-mount servers and includes hardware-based on-board PLP. Via power loss capacitors, DC600M protects data against unexpected power failure to reduce the possibility of data loss and ensure that the drive will successfully re-initialise on the next power-up of the system. DC600M is designed to deliver latency and IOPS consistency for system integrators, hyperscale data centers and cloud service providers.
| Form factor: | 2.5 Inch |
| Interface: | SATA Rev. 3.0 (6Gb/s) – with backwards compatibility to SATA Rev. 2.0 (3Gb/s) |
| Capacities: | 480GB, 960GB, 1920GB, 3840GB, 7680GB |
| NAND: | 3D TLC |
| DRAM Cache: | Yes |
| Sequential Read/Write: | 480GB – 560MBs/470MBs 960GB – 560MBs/530MBs 1920GB – 560MBs/530MBs 3840GB – 560MBs/530MBs 7680GB – 560MBs/530MBs |
| Steady State 4k Random Read/Write: | 480GB – 94,000/41,000 IOPS 960GB – 94,000/65,000 IOPS 1920GB – 94,000/78,000 IOPS 3840GB – 94,000/59,000 IOPS 7680GB – 94,000/34,000 IOPS |
| Hot-Plug Capable: | Static and Dynamic Wear Leveling |
| Enterprise SMART tools: | Reliability tracking, usage statistics, life remaining, wear leveling, temperature |
| Hardware-based Power Loss Protection Endurance: | 480GB – 876TBW, 1 DWPD (5 years), 1.66 DWPD (3 years) 960GB – 1752TBW, 1 DWPD (5 years), 1.66 DWPD (3 years) 1920GB – 3504TBW, 1 DWPD (5 years), 1.66 DWPD (3 years) 3840GB – 7008TBW, 1 DWPD (5 years), 1.66 DWPD (3 years) 7680GB – 14016TBW, 1 DWPD (5 years), 1.66 DWPD (3 years) |
| Power Consumption: | Idle: 1.30W Average: 1.45W Max Read: 1.6W Max Write: 3.6W |
| Storage temperature: | -40°C ~ 85°C |
| Operating temperature: | 0°C ~ 70°C |
| Dimensions: | 69.9mm x 100mm x 7mm |
| Weight: | 92.34g |
| Warranty/support: | Limited 5-year warranty with free technical support |
