The DC2000B is a PCIe 4.0 NVMe M.2 SSD for enterprise workloads, delivering up to ~7,000 MB/s read and ~5,000 MB/s write speeds. With power-loss protection, high endurance (DWPD), and thermal management, it’s ideal for cloud, AI, and data center use. Its M.2 2280 form factor ensures compact, high-performance storage with PCIe 4.0’s 2x bandwidth over PCIe 3.0.
| SEDC2000BM8/240G | SEDC2000BM8/480G | SEDC2000BM8/960G | |
|---|---|---|---|
| Capacity | 240GB | 480GB | 960GB |
| Read Speed | 4500 MB/s | 7000 MB/s | 7000 MB/s |
| Write Speed | 400 MB/s | 800 MB/s | 1300 MB/s |
| Interfaces | PCIe 4.0 x4 NVMe | PCIe 4.0 x4 NVMe | PCIe 4.0 x4 NVMe |
| Form Factor | M.2 2280 | M.2 2280 | M.2 2280 |
| Dimensions | 80mm x 22mm x 8.3mm | 80mm x 22mm x 8.3mm | 80mm x 22mm x 8.3mm |
| Weight | 9g | 10g | 11g |
| Warranty | 5 year warranty | 5 year warranty | 5 year warranty |
| Action | Get a Quote | Get a Quote | Get a Quote |
Utilises PCIe Gen 4x4 lanes for high-performance speeds.
Reduce the possibility of data loss and/or corruption due to unexpected power-off.
Firmware optimised to deliver low latency and IO consistency for high duty cycle workloads.
Optimised to meet the demands of server boot applications with low latency and IO consistency as the key design criteria.

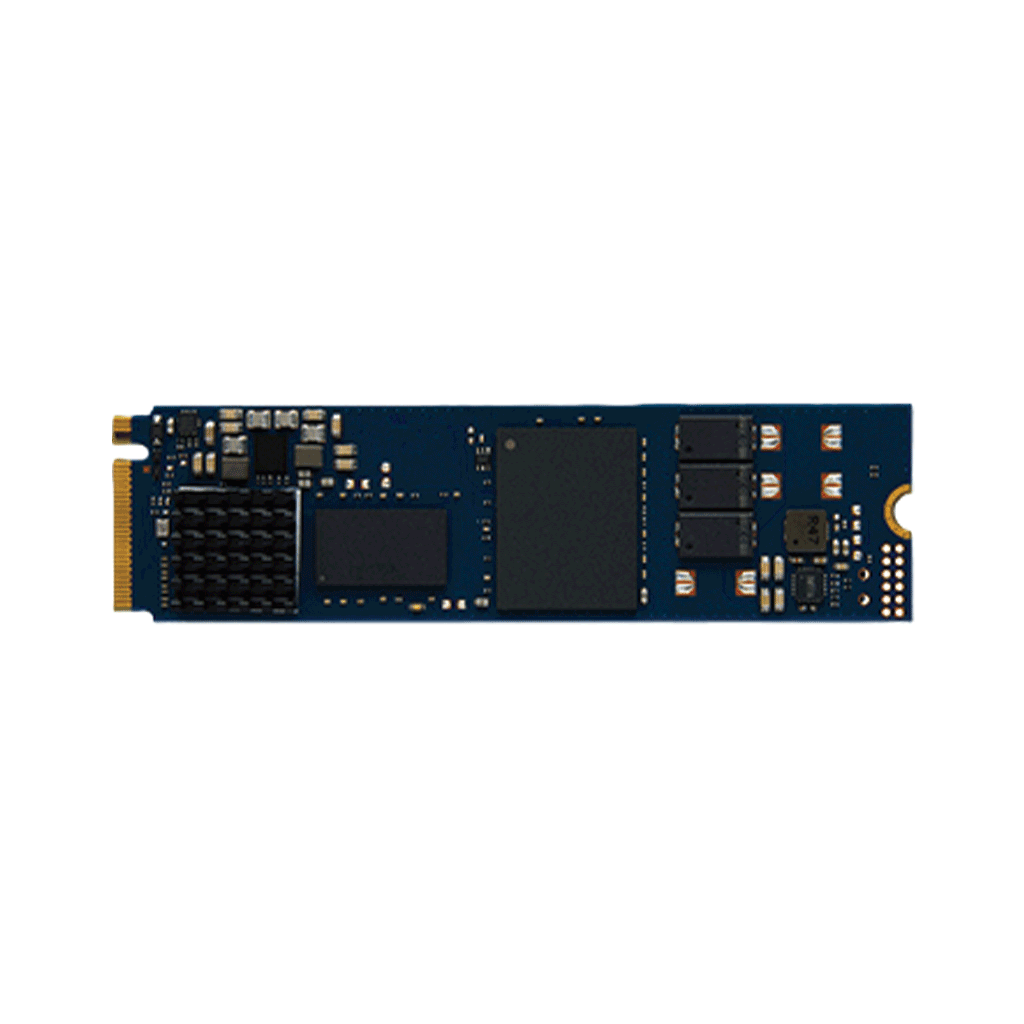

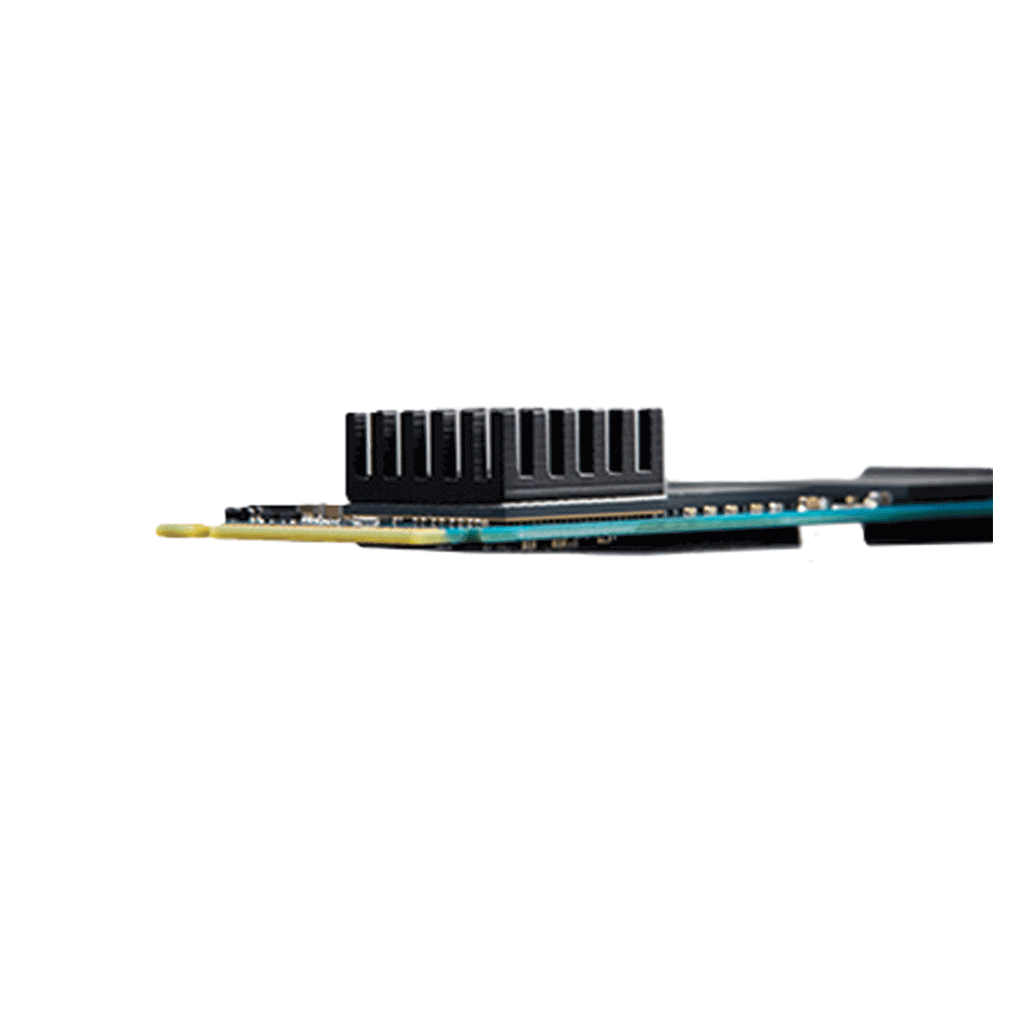

Kingston DC2000B is a high-performance PCIe 4.0 NVMe M.2 SSD that uses the latest Gen 4x4 PCIe interface with 112-layer 3D TLC NAND. Ideally suited for use in high-volume rack-mount servers as an internal boot drive(s) to preserve valuable front-loading drive bays, as well as for use in purpose-built systems where a high-performance M.2 SSD is needed that includes hardware-based on-board power loss protection (PLP). New for DC2000B is an integrated aluminium heatsink that offers broader thermal compatibility for a wide range of systems. DC2000B delivers low latency and excellent IO consistency to handle various workloads from boot drive applications to high-speed application caching. DC2000B is rated at 0.4 DWPD write endurance and carries a five-year warranty.
| Form factor: | M.2 2280 |
| Interface: | PCIe 4.0 x4 NVMe |
| Capacities: | 240GB, 480GB, 960GB |
| NAND: | 3D TLC |
| Sequential read/write: | 240GB – 4500/400 MBs 480GB – 7000/800 MBs 960GB – 7000/1300 MBs |
| Steady-state 4k read/write: | 240GB – 260000/18000 IOPS 480GB – 530000/32000 IOPS 960GB – 540000/47000 IOPS |
| Total bytes written (TBW): | 240GB – 175 TBW 480GB – 350 TBW 960GB – 700 TBW |
| Latency read (avg): | 240GB-960GB: 70µs |
| Latency write (avg): | 240GB – 53µs 480GB – 29µs 960GB – 20µs |
| Power loss protection (power caps): | Yes |
| Enterprise SMART tools: | Reliability tracking, usage statistics, SSD life remaining, wear levelling, temperature |
| Endurance: | 240GB — (0.4 DWPD/5yrs) 480GB — (0.4 DWPD/5yrs) 960GB — (0.4 DWPD/5yrs) |
| Power consumption: | 240GB: Average read: 2.97W Average write: 4.02W Max read: 3.01W Max write: 4.09W; 480GB: Average read: 3.22W Average write: 5.60W Max read: 3.29W Max write: 5.77W; 960GB: Average read: 3.26W Average write: 7.36W Max read: 3.36W Max write: 7.80W |
| Storage temperature: | -40°C ~ 85℃ |
| Operating temperature: | 0℃ ~ 70℃ |
| Dimensions: | 80mm x 22mm x 8.3mm |
| Vibration non-operating: | 20G peak (10-2,000Hz) |
| MTBF: | 2 million hours |
| Warranty/support: | Limited five-year warranty with free technical support |
