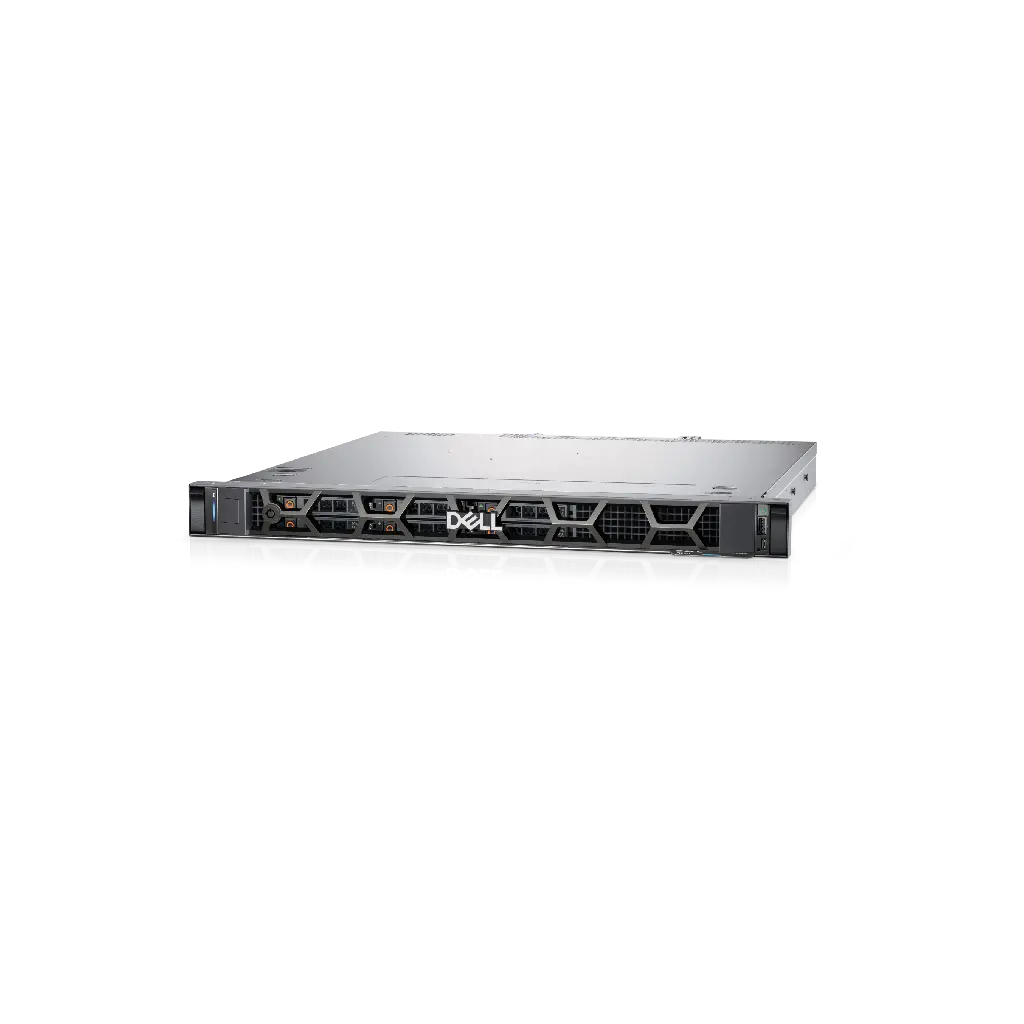

The Dell PowerEdge R260 is a robust and efficient 1U rack server designed for small to mid-sized businesses and remote office/branch office (ROBO) environments. It offers a balance of performance, scalability, and energy efficiency, making it ideal for tasks like collaboration, database management, and edge computing.
| 1100105714 | R260-H355-VPN-EMEA_PER260SPL2 | |
|---|---|---|
| Processor | Intel Xeon E-2414 | Intel Xeon E-2434 |
| Memory | 16GB DDR5 | 16GB DDR5 |
| Storage | 2TB | 600GB |
| Storage Controller | PERC H355 | PERC H355 |
| Power | 700 W | 700 W |
| Warranty | 3 Years Warranty | 3 Years Warranty |
| Action | Get a Quote Shop Now | Get a Quote Shop Now |
The Dell PowerEdge R260 is a 1U, single-socket short-depth server designed to address entry-level compute demands of Near-Edge, Remote Office / Branch Office (ROBO) and SMB.
Space-saving design tailored for Near-Edge and SMB customers
Tame the complexity of your IT environment with Dell Technologies OpenManage systems management portfolio which uses tools and solutions to discover, deploy, monitor, manage, update and secure your PowerEdge infrastructure.
Integrate tools across your portfolio with PowerEdge iDRAC, OpenManage Enterprise and CloudIQ solutions that help organisations automate their server lifecycles, optimise operations and scale efficiently.
Stay protected at every phase of the product lifecycle with the PowerEdge cyber resilient architecture that helps accelerate your adoption of a Zero Trust security strategy. From the silicon root of trust, secured component verification, signed firmware and drift detection to BIOS recovery and dynamic system lockdown, you can rest assured that your servers are secure.

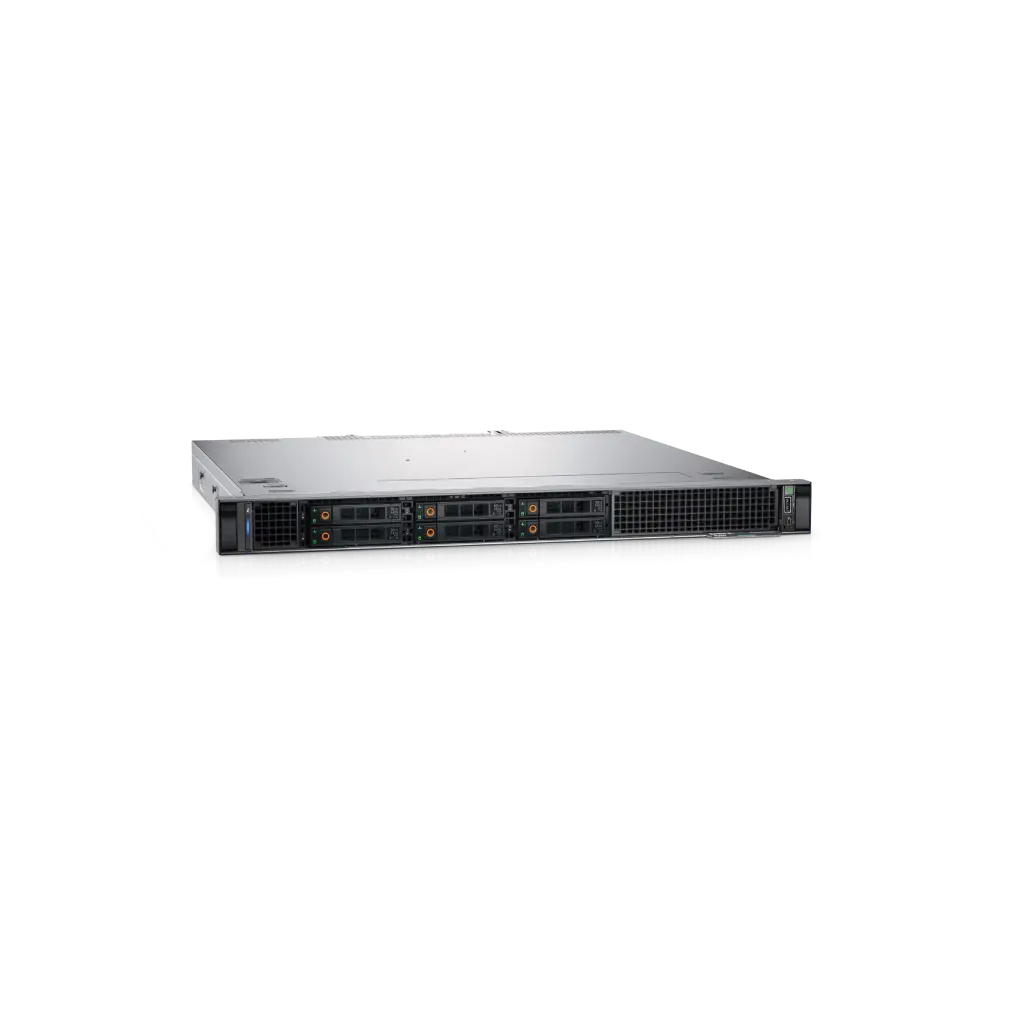

The 1U, single-socket PowerEdge R260 is an entry-level rack server for customers desiring versatility, affordability, and processing power.

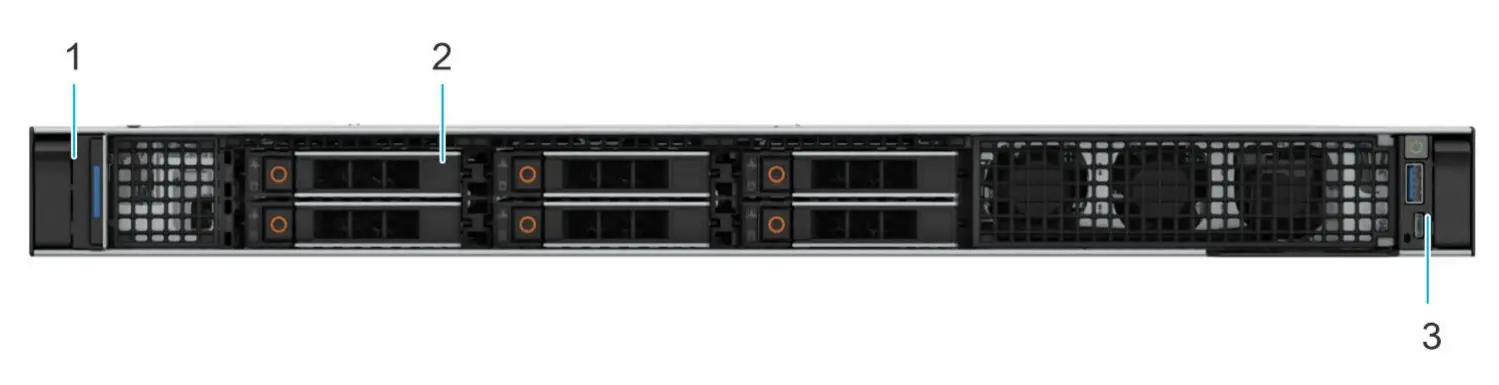

| 1. | Left control panel | 2. | 2.5-inch drive |
| 3. | Right control panel |

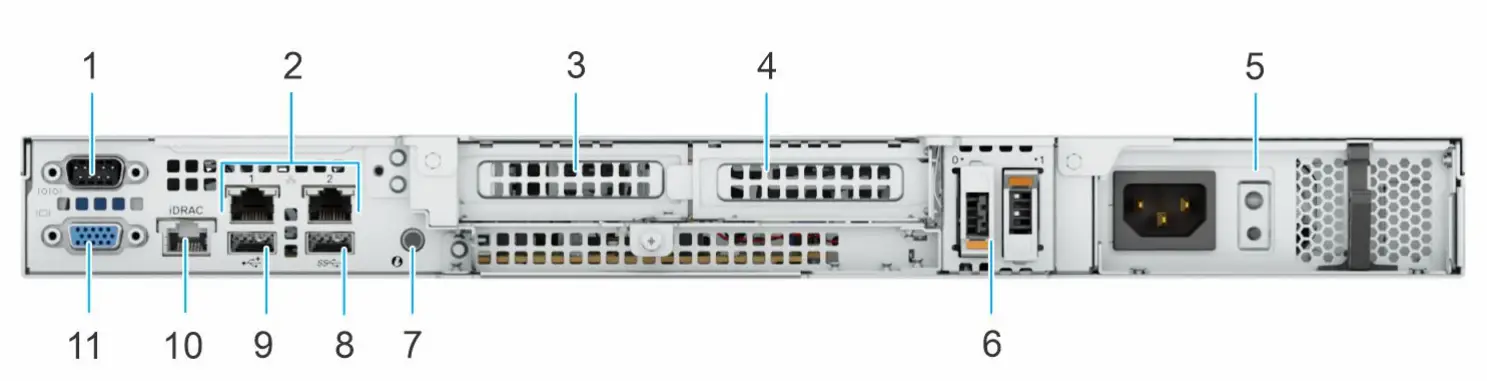

| 1. | Serial port | 2. | NIC ports |
| 3. | PCIe expansion riser card slot1 | 4. | PCIe expansion riser card slot2 |
| 5. | Power supply unit (PSU) | 6. | BOSS-N1 module | 7. | System Identification (ID) button |
| 8. | USB 3.2 Gen1 port | 9. | USB 2.0 port | 10. | Dedicated iDRAC Ethernet port |
| 11. | VGA port |
| Processor: | One Intel® Xeon® 6300 series or one Intel® Xeon® E-2400 series processor with up to 8 cores or One Intel® Pentium® G7400/G7400T processor with 2 cores |
| Memory: | 4 DDR5 DIMM slots, supports UDIMM 128 GB max, speeds up to 4400 MT/s ; Supports unregistered ECC DDR5 DIMMs only |
| Storage controllers: | Internal Controllers: HBA355i Adpt, PERC H355 Adpt, PERC H755 Adpt ; Internal Boot: Internal USB 3.0, or Boot Optimized Storage Subsystem (BOSS-N1) HWRAID 2 x M.2 SSDs ; External HBAs (non-RAID): HBA355e Adpt ; Software Controller: S160 |
| Drive Bays: | Front bays: Up to 2 x 3.5-inch cable SAS/SATA HDD, max 32 TB ; Up to 6 x 2.5-inch hot-plug SAS/SATA HDD/SSD, max 46.08TB |
| Power Supplies: | 450 W Platinum 100 — 240 VAC, non redundant ; 700 W Titanium 200 — 240 VAC or 240 VDC, non redundant |
| Cooling Options: | Air cooling |
| Dimensions: | Height – 42.8 mm (1.68 inches) ; Width – 482.0 mm (18.97 inches) ; Depth – 461.14 mm (18.15 inches) without bezel ; Depth – 496.8 mm (19.55 inches) with bezel ; Depth – 426.6 mm (16.80 inches) with cable PSU and without bezel |
| Fans: | Up to six cabled fans |
| Form Factor: | 1U rack server |
| Embedded Management: | iDRAC9 ; iDRAC Direct ; iDRAC RESTful API with Redfish ; iDRAC Service Manual |
| Bezel: | Security bezel or optional Filter bezel |
| OpenManage Software: | OpenManage Enterprise ; OpenManage Power Manager plugin ; OpenManage Service plugin ; OpenManage Update Manager plugin ; CloudIQ for PowerEdge plug in ; OpenManage Enterprise Integration for VMware vCenter ; OpenManage Integration for Microsoft System Center ; OpenManage Integration with Windows Admin Center |
| Mobility: | OpenManage Mobile |
| OpenManage Integrations: | BMC Truesight ; Microsoft System Center ; OpenManage Integration with ServiceNow ; Red Hat Ansible Modules ; Terraform Providers ; VMware vCenter and vRealize Operations Manager |
| Security: | Cryptographically signed firmware ; Data at Rest Encryption (SEDs with local or external key mgmt) ; Secure Boot ; Secured Component Verification (Hardware integrity check) ; Secure Erase ; Secured-core server ; Silicon Root of Trust ; System Lockdown (requires iDRAC9 Enterprise or Datacenter) ; TPM 2.0 FIPS, CC-TCG certified, TPM 2.0 China NationZ |
| Embedded NIC: | 2 x 1 GbE LOM |
| GPU Options: | N/A |
| PCIe: | Up to two PCIe Gen4 slots on the Gen4 Riser ; Slot 1: 1 x8 with x8 bandwidth, Half Length, Low Profile ; Slot 2: 1 x16 with x8 bandwidth, Half Length, Low Profile |
| Operating System and Hypervisors: | Canonical Ubuntu Server LTS ; Microsoft Windows Server with Hyper-V ; Red Hat Enterprise Linux ; SUSE Linux Enterprise Server ; VMware ESXi For specifications and interoperability details, see Dell.com/OSsupport. |
