The Dell PowerEdge R360 addresses evolving compute demands with an easy to manage rack server designed for businesses looking for affordable enterprise features. The PowerEdge R360 is a 1U, single-socket server designed to address evolving compute demands for SMBs, Remote Office / Branch Office (ROBO) and Near-Edge.
| PER360SPL1-251 | R360SPL-E2434-4TB | EMEA_PER360FLEXI1 | |
|---|---|---|---|
| Processor | Intel Xeon E-2414 | Intel Xeon E-2434 | Intel Xeon E-2414 |
| Memory | 16 GB DDR4 | 16 GB DDR4 | 16 GB DDR4 |
| Storage | 2TB Hard Drive SATA | 4TB Hard Drive SAS | 480 GB SSD SATA |
| Storage Controller | PERC H355 | PERC H355 | PERC H355 Adapter |
| Network Controller | On-Board LOM 1GBE Dual Port | On-Board LOM 1GBE Dual Port | On-Board LOM 1GBE Dual Port |
| Power Supply | 700 W | 600 W | 700 W |
| Warranty | 3 year Warranty | 3 year warranty | 3 year warranty |
| Action | Get a Quote Shop Now | Get a Quote | Get a Quote |
Powered by the latest Intel Xeon E-2400 processors, Dell PowerEdge R360 is designed for productivity and data intensive applications, making it ideal for your growing business. With 4400/MT DDR5 and advanced NVMe BOSS-N1, it supports reduced latency and seamless scalability to bring the computing capability to the next level. Beyond the computing power, the Dell PowerEdge R360 is equipped with energy-efficient power supply, hot-plug storages, air cooling fans to make it a reliable, responsible, and secure choice
The PowerEdge R360 supports NVIDIA A2 GPU to meet the growing demand in video and audio computing. It provides cost-effective solutions for ROBO and Near-Edge customers from retail, manufacturing, and logistics. This makes the PowerEdge R360 a powerful and versatile server for small to mid-sized businesses to enable a variety of workloads ranging from business-critical to cloud infrastructure. It is also widely used for point-of-sale transactions and enterprise level requirements for data analysis and virtualization
Security is integrated into every phase of the PowerEdge lifecycle, including protected supply chain and factory-to-site
integrity assurance. Silicon-based root of trust anchors end-to-end boot resilience while Multi-Factor Authentication
(MFA) and role-based access controls ensure trusted operations

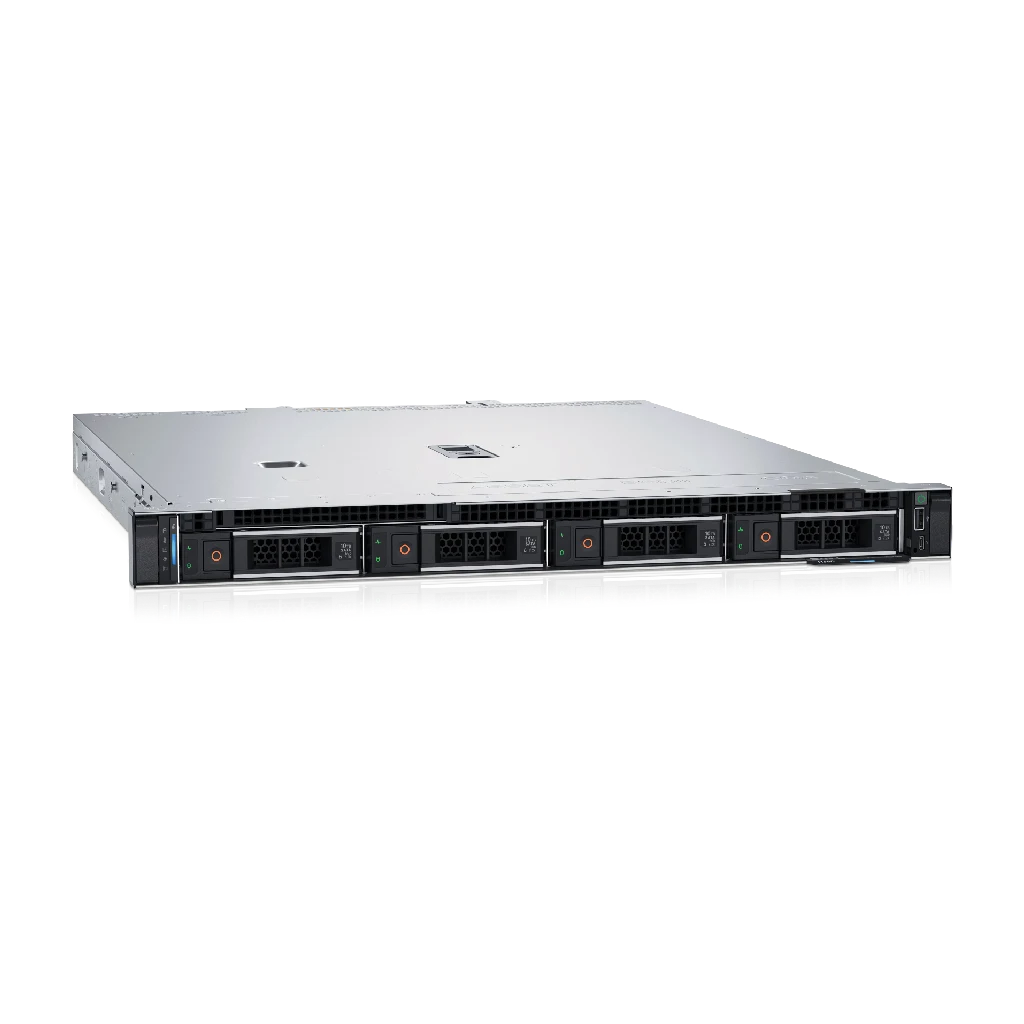

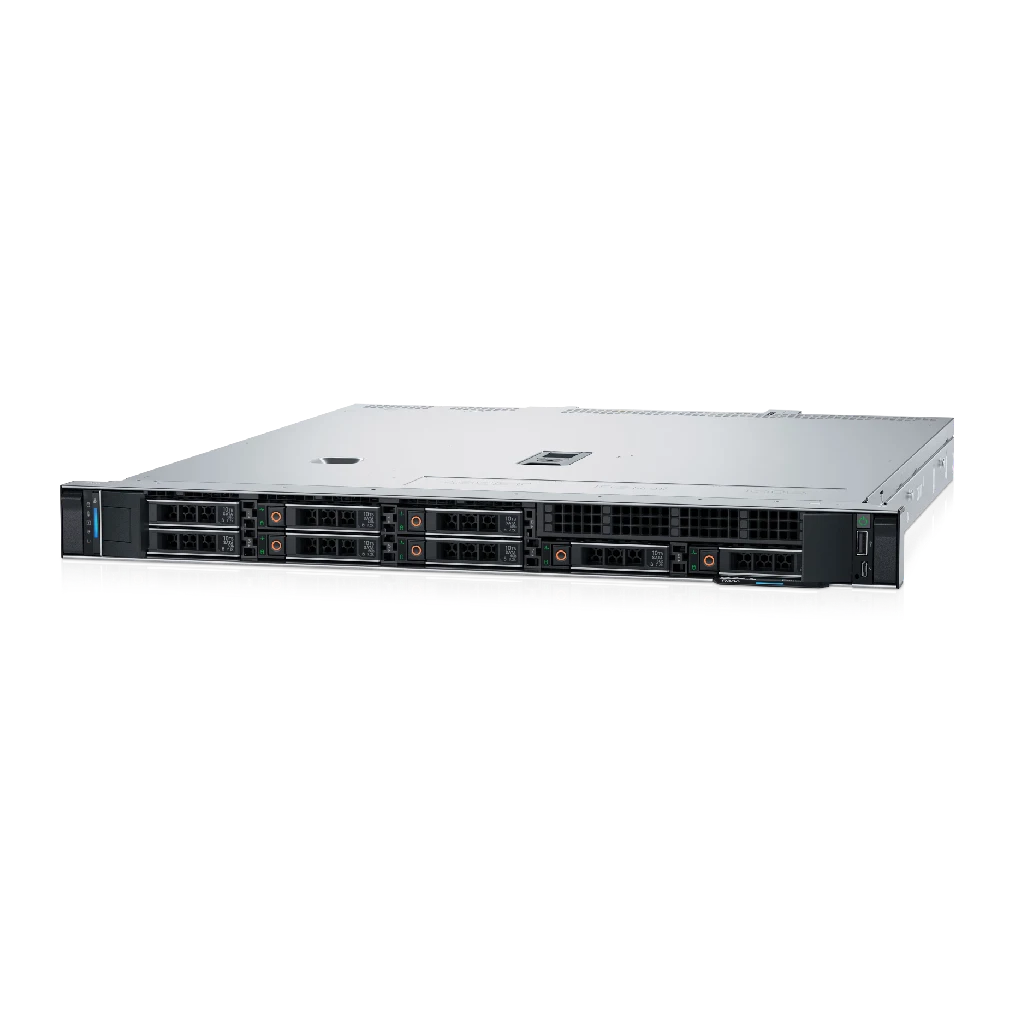

The 1U, single-socket PowerEdge R360 is an entry-level rack server for customers desiring versatility, affordability, and processing power.

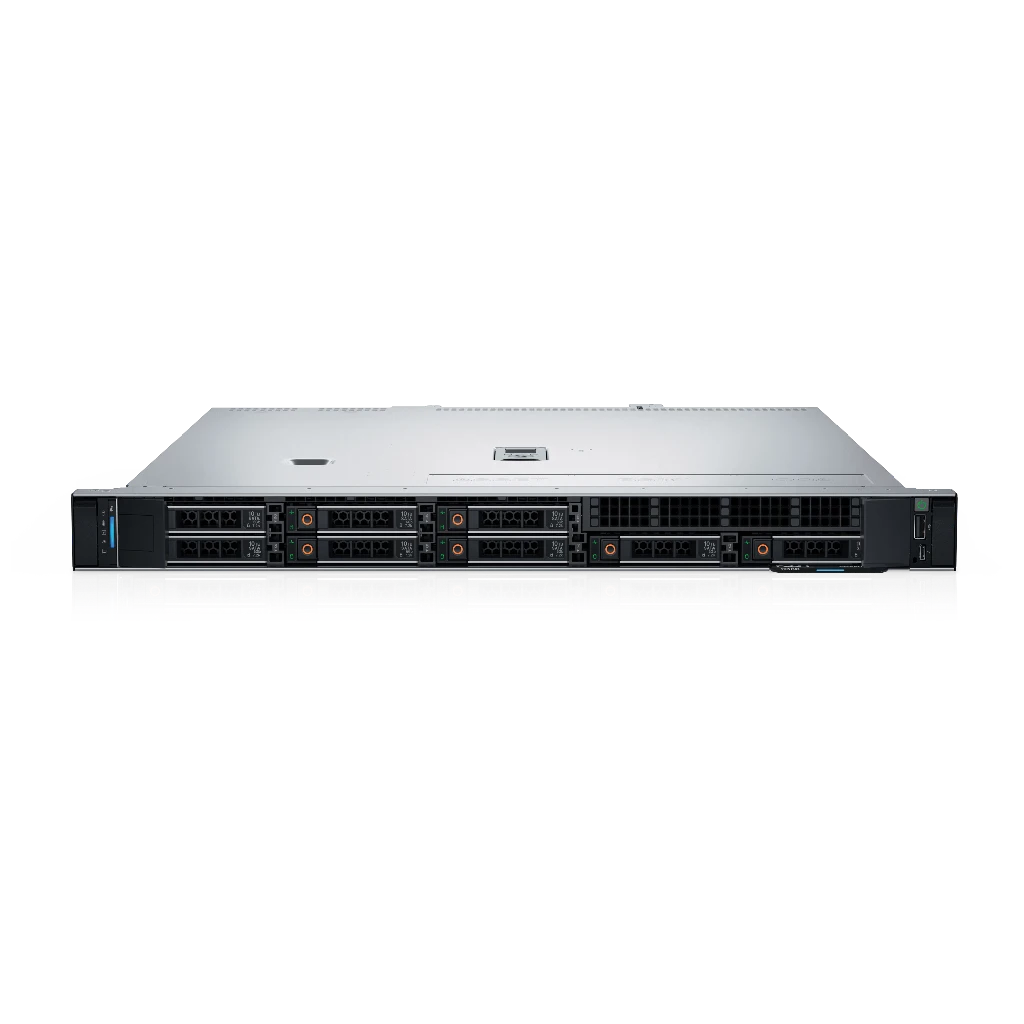

| 1. | Left control panel | 2. | 2.5-inch drive |
| 3. | Right control panel |
| 1. | Serial port | 2. | NIC ports |
| 3. | PCIe expansion riser card slot1 | 4. | PCIe expansion riser card slot2 |
| 5. | Power supply unit (PSU 1) | 6. | Power supply unit (PSU 2) | 7. | BOSS-N1 module |
| 8. | System Identification (ID)button | 9. | USB 3.2 Gen1 port | 10. | USB 2.0 port |
| 11. | Dedicated iDRAC Ethernet port | 12. | VGA port |
| Processor: | One Intel Xeon E-2400 series processor with up to 8 cores or One Intel Pentium G7400/G7400T processor with 2 cores |
| Memory: | • 4 DDR5 DIMM slots, supports UDIMM 128 GB max, speeds up to 4400 MT/s • Supports unregistered ECC DDR5 DIMMs only |
| Storage controllers: | • Internal Controllers: HBA355i Adpt, PERC H355 Adpt, PERC H755 Adpt, HBA355i front, H355 front, H755 front • Internal Boot: Internal USB 3.0, or Boot Optimized Storage Subsystem (BOSS-N1): HWRAID 2 x M.2 SSDs, USB • External HBAs (non-RAID): HBA355e Adpt • Software Controller: S160 |
| Drive Bays: | Front bays: • Up to 4 x 3.5-inch SAS/SATA (HDD/SSD) max 64 TB • Up to 8 x 2.5-inch SAS/SATA (SSD) max 61.44 TB |
| Power Supplies: | 600 W Platinum 100 — 240 VAC or 240 VDC, hot swap redundant • 700 W Titanium 200 — 240 VAC or 240 VDC, hot swap redundant |
| Cooling Options: | Air cooling |
| Dimensions: | Height – 42.8 mm (1.68 inches) • Width – 482.0 mm (18.97 inches) • Depth – 585.3 mm (23.04 inches) without bezel • Depth — 598.9 mm (23.57 inches) with bezel |
| Fans: | Up to 4 fans |
| Form Factor: | 1U rack server |
| Embedded Management: | • iDRAC9 • iDRAC Direct • iDRAC RESTful API with Redfish • iDRAC Service Manual |
| Bezel: | Security bezel or Optional Filter bezel |
| OpenManage Software: | OpenManage Enterprise • OpenManage Power Manager plugin • OpenManage Service plugin • OpenManage Update Manager plugin • CloudIQ for PowerEdge plug in • OpenManage Enterprise Integration for VMware vCenter • OpenManage Integration for Microsoft System Center • OpenManage Integration with Windows Admin Center |
| Mobility: | OpenManage Mobile |
| OpenManage Integrations: | BMC Truesight • Microsoft System Center • OpenManage Integration with ServiceNow • Red Hat Ansible Modules • Terraform Providers • VMware vCenter and vRealize Operations Manager |
| Security: | • Cryptographically signed firmware • Data at Rest Encryption (SEDs with local or external key mgmt) • Secure Boot • Secured Component Verification (Hardware integrity check) • Secure Erase • Secured-core server • Silicon Root of Trust • System Lockdown (requires iDRAC9 Enterprise or Datacenter) • TPM 2.0 FIPS, CC-TCG certified, TPM 2.0 China NationZ |
| Embedded NIC: | 2 x 1 GbE LOM |
| GPU Options: | 1 x 60 W single-width GPU |
| PCIe: | Up to two PCIe Gen4 slots on the Gen4 Riser • Slot 1: 1 x8 with x8 bandwidth, Half Length, Low Profile • Slot 2: 1 x16 with x8 bandwidth, Half Length, Low Profile • One dedicated PCIe x8 slot on the system board for internal PERC |
| Operating System and Hypervisors: | • Canonical Ubuntu Server LTS • Microsoft Windows Server with Hyper-V • Red Hat Enterprise Linux • SUSE Linux Enterprise Server • VMware ESXi |
