The Dell PowerEdge T160 is a compact, single-socket tower server designed mainly for Small and Medium-sized Businesses (SMBs) and near-edge computing environments. Its tower design makes it suitable for offices, branch locations, retail stores, workshops, and other places where space and server infrastructure may be limited. As a single-socket server, it uses one processor and provides sufficient computing capability for common business workloads such as file and data storage, business applications, databases, virtualization, backup, and local data processing.
| Processor Name | Intel Xeon 6 Performance 6315P |
| Processor Speed | 2.8G |
| Processor Core | 4 core |
| Processor Cache | 12 MB Smart Cache |
| Memory Type | RDIMM |
| Standard Memory | 16GB |
| Hard Drive | 1 x 2TB Hard Drive SATA |
| Power Supply Type | 300 W |
| Network Controller | Broadcom 5720 Dual Port |
| Weight (metric) | 11.64 kg |
| Product Dimensions (metric) | 332.50 x 132.50 x 408 mm |
| Warranty | 3 Year warranty |
| Price |
AED :
9,375.00
USD :
2,552.81
|
| Action | Get a Quote |
PowerEdge T160 tower server resources
Explore the PowerEdge T160 Spec Sheet, Technical Guide, and Hands-On Labs to gain a deeper understanding of the server’s capabilities, configurations, and deployment options. These resources provide useful technical information to help businesses evaluate the platform and plan their IT infrastructure effectively. Innovate where you never thought possible. The Dell PowerEdge server family is designed to bring powerful computing capabilities to a wide range of environments, including traditional data centers, offices, and near-edge locations. With modern processing capabilities, intelligent management, and security-focused technologies, these servers help organizations handle demanding workloads while maintaining reliable operations.
Your innovation engine
The Dell PowerEdge T160 is a one-socket, cutting-edge 3U, 17-liter chassis tower server designed to meet the evolving needs of small and medium-sized businesses (SMBs) and near-edge computing environments. It delivers a compact yet powerful platform for organizations looking to modernize their IT infrastructure and support future business growth. Built to provide reliable performance, scalability, and efficient management, the PowerEdge T160 is well suited for workloads such as file and print services, data sharing, virtualization, business applications, and edge computing. Its tower form factor makes it easy to deploy in offices and environments where space and simplicity are important.

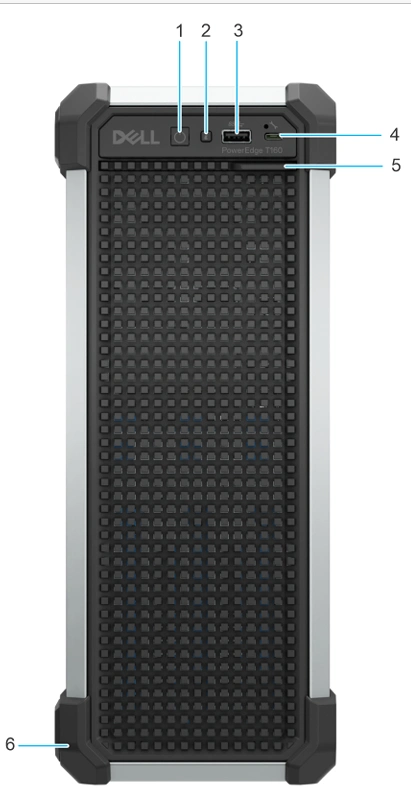

| 1. | Power button |
| 2. | Status LED indicators |
| 3. | USB 3.2 port |
| 4. | iDRAC Direct (Micro-AB USB) port |
| 5. | Express Service Tag |
| 6. | Rubber feet |

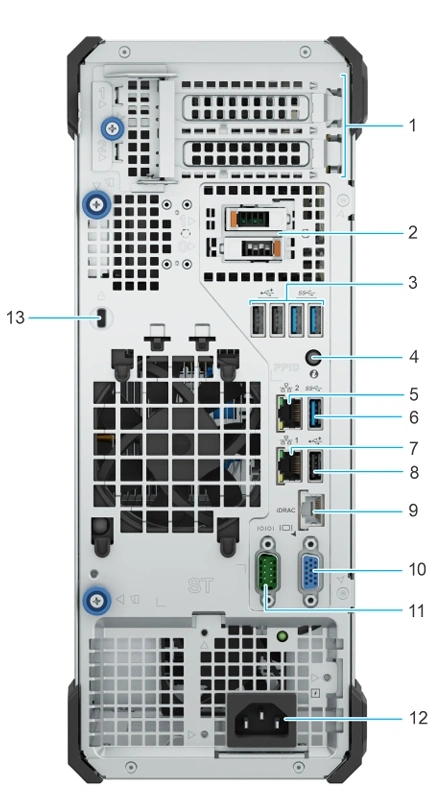

| 1. | PCIe expansion card slots | 2. | BOSS-N1 (optional) | 3. | 2 x USB 2.0 + 2 x USB 3.2 ports |
| 4. | System Identification (ID) button | 5. | Memory module sockets | 6. | Intrusion switch |
| 7. | NIC port (1) | 8. | USB 2.0 port | 9. | Dedicated iDRAC Ethernet port |
| 10. | USB 3.2 port | 11. | VGA port | 12. | Cabled power supply unit |
| 13. | Kensington lock slot |

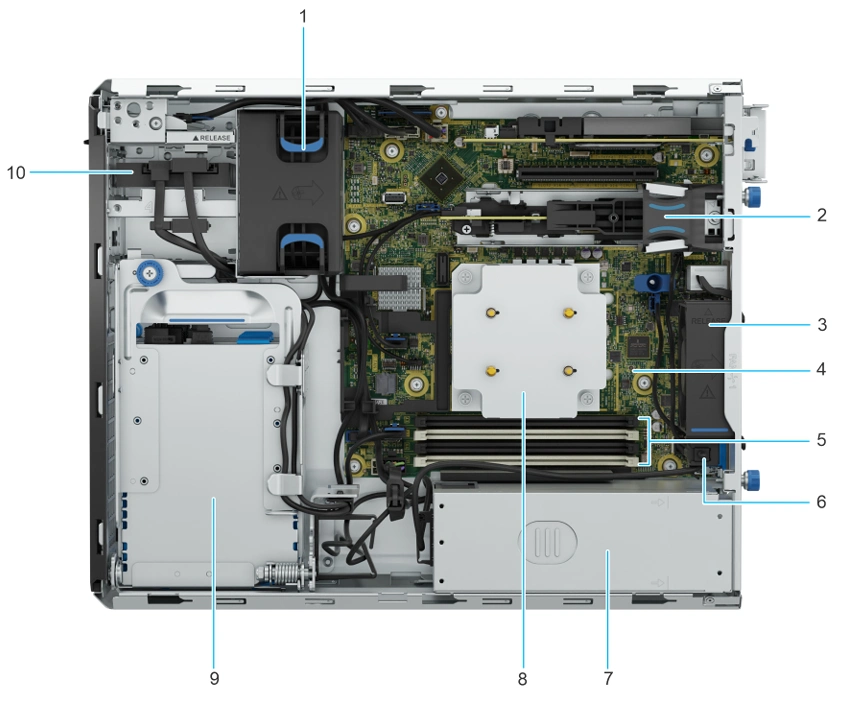

| 1. | High Performance (HPR) fan - Optional | 2. | BOSS N1 module |
| 3. | Cooling fan | 4. | System board |
| 5. | System board | 6. | Intrusion switch |
| 7. | Cabled PSU | 8. | Heat sink |
| 9. | 3.5-inch drive cage | 10. | 2.5-inch drive cage |
| Processor | One Intel Xeon 6300 series processor with up to twelve cores or Intel Xeon E-2400 series processor with up to eight cores or one Intel Pentium processor with up to two cores One Intel Pentium G7400/ G7400T processor with 2 cores |
| Memory | 4 DDR5 DIMM slots, supports UDIMM up to 128 GB per DIMM, speeds up to 4400 MT/s • |
| Storage Controller | Internal Controllers HBA355i Adapter, PERC H355 Adapter, PERC H755 Adapter |
| Drive Bays | Up to 3 x 3.5-inch cable SAS/SATA HDD/SSD, max 48 TB Up to 3 x 3.5-inch + 2 x 2.5-inch cable SAS/SATA HDD/SSD, max 63.36 TB Up to 3x3.5" Chip SATA+ 2x 2.5" NVMe, max 63.36 TB Up to 3x3.5" PERC SAS/SATA + 2x2.5" NVMe, max 63.36 TB. |
| Power Supplies | 300 W Bronze 100—240 V AC, cabled 500 W Platinum 100—240 V AC, cabled,2 x 1GbE LOM on Planar. |
| Fans | Up to two fans |
| Dimensions | Height 332.5 mm (13.09 inches) (with feet) 329.5 mm (12.97 inches)(without feet) Width 132.52 mm (5.21 inches) Depth 408.8 mm (16.09 inches) (with bezel) 403.8 mm (15.89 inches) (without bezel) Weight 11.64 kg (25.66 lbs.) maximum weight. |
| Form Factor | 3U tower server |
| Embedded Management | iDRAC9 iDRAC Direct ,iDRAC RESTful API with Redfish ,iDRAC Service Module |
| Bezel | Filter Bezel |
| OpenManage Software | BMC Truesight Microsoft System Center OpenManage Integration with ServiceNow RedHat Ansible Modules Terraform Providers VMware vCentez and vRealize Operations Manager |
| Mobility | OpenManage Mobile |
| Security | Cryptographically signed firmware Data at Rest Encryption (SEDs with local or external key mgmt) Secure Boot Secured Component Verification (Hardware integrity check) Secure Erase Secured-core server Silicon Root of Trust System Lockdown (requires iDRAC9 Enterprise or Datacenter) TPM 2.0 FIPS, CC-TCG certified, TPM 2.0 China NationZ |
| Operating System | Canonical Ubuntu Server LTS Microsoft Windows Server with Hyper-V RedHat Enterprise Linux SUSE Linux Enterprise Server VMware ESXi |
| Ports | Network Options 2 x 1GbE LOM on Planar Front Ports 1 x iDRAC Direct (Micro-AB USB) port 1 x USB 3.2 Gen1 Rear Ports 1 x Dedicated iDRAC (RJ-45) port 3 x USB 2.0 3 x USB 3.2 Gen1 1 x Serial 1 x VGA 2 x Ethernet ports Internal Ports 1 x USB 3.2 Gen1 |
| Storage | Up to 3 x 3.5-inch cable SAS/SATA HDD/SSD, max 48 TB Up to 3 x 3.5-inch + 2 x 2.5-inch cable SAS/SATA HDD/SSD, max 63.36 TB Up to 3x3.5" Chip SATA+ 2x 2.5" NVMe, max 63.36 TB Up to 3x3.5" PERC SAS/SATA + 2x2.5" NVMe, max 63.36 TB |
