A purpose-built office-friendly server, maximizing next-gen technologies with GPU options to achieve enterprise-level performance in remote or branch office locations. The Dell PowerEdge T560, powered by the 4th or 5th Generation Intel Xeon Scalable processors, is an enterprise-class tower server that offers advanced technologies with accelerators.
| Processor | Intel Xeon Silver 4410Y |
| Memory | 16GB DDR5 RDIMM |
| Storage | 1* 480GB SSD SATA |
| Storage controller | PERC H755 SAS Front |
| Optical Drive | No Internal Optical Drive |
| Power supply | (1+1), 700W |
| Network Card | Broadcom 5720 Dual Port 1Gb |
| Systems Management | iDRAC9 Enterprise 16G |
| Form Factor | 5U Tower |
| Warranty | 3 year warranty |
| Action | Get a Quote Shop Now |
Experience the powerful two-socket mainstream tower server that is truly enterprise-ready.
Experience balanced expandability and performance for enterprise-level workloads.
Tame the complexity of your IT environment with Dell Technologies OpenManage systems management portfolio which uses tools and solutions to discover, deploy, monitor, manage, update and secure your PowerEdge infrastructure.
Integrate tools across your portfolio with PowerEdge iDRAC, OpenManage Enterprise and CloudIQ solutions that help organisations automate their server lifecycles, optimise operations and scale efficiently.
Stay protected at every phase of the product lifecycle with the PowerEdge cyber resilient architecture that helps accelerate your adoption of a Zero Trust security strategy. From the silicon root of trust, secured component verification, signed firmware and drift detection to BIOS recovery and dynamic system lockdown, you can rest assured that your servers are secure.
The Dell PowerEdge T560, powered by the 4th or 5th Generation Intel Xeon Scalable processors, is an enterprise-class tower server that offers advanced technologies with accelerators.

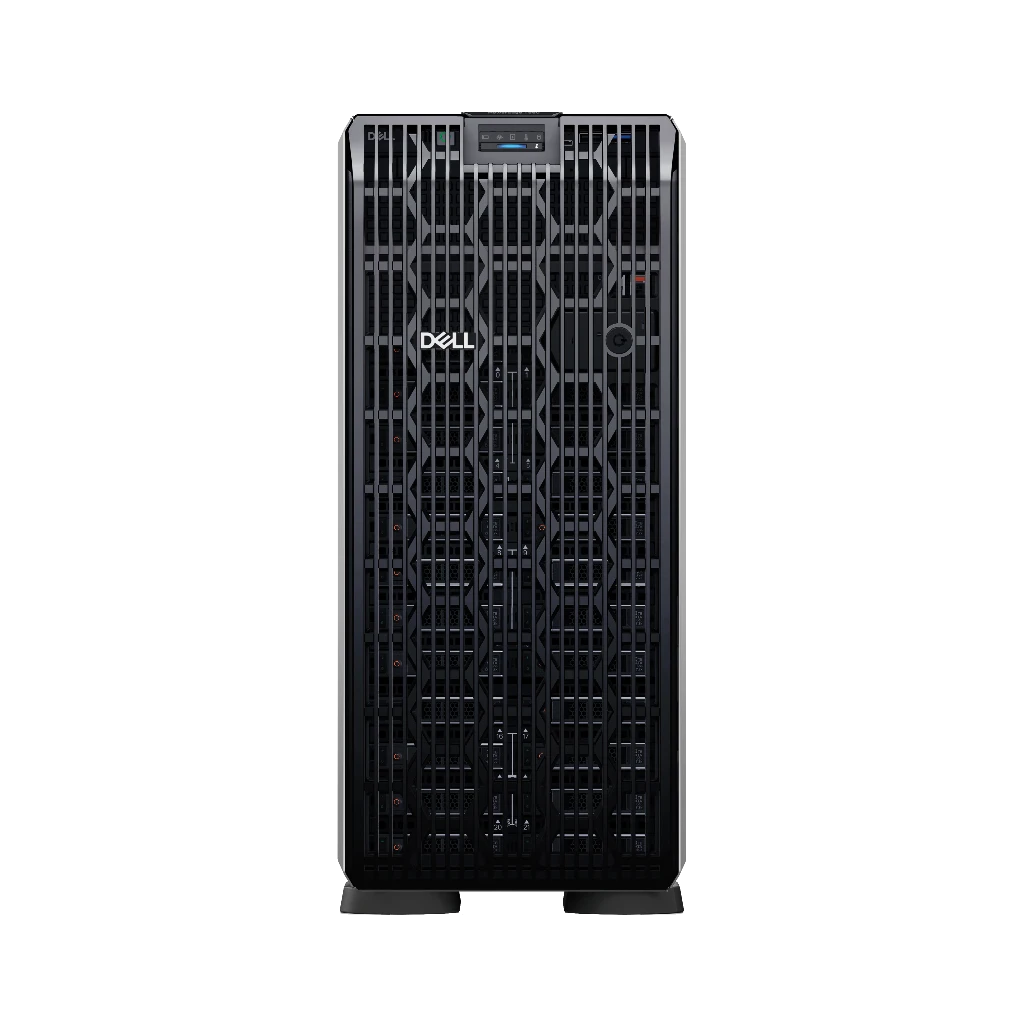

Front View
| 1. | Power button | 2. | System health and ID indicator |
| 3. | Express Service Tag | 4. | Status LED indicators |
| 5. | iDRAC Direct (Micro-AB USB) port | 6. | iDRAC status LED |
| 7. | USB 2.0 port | 8. | USB 3.0 port |
| 9. | Drive Bay |

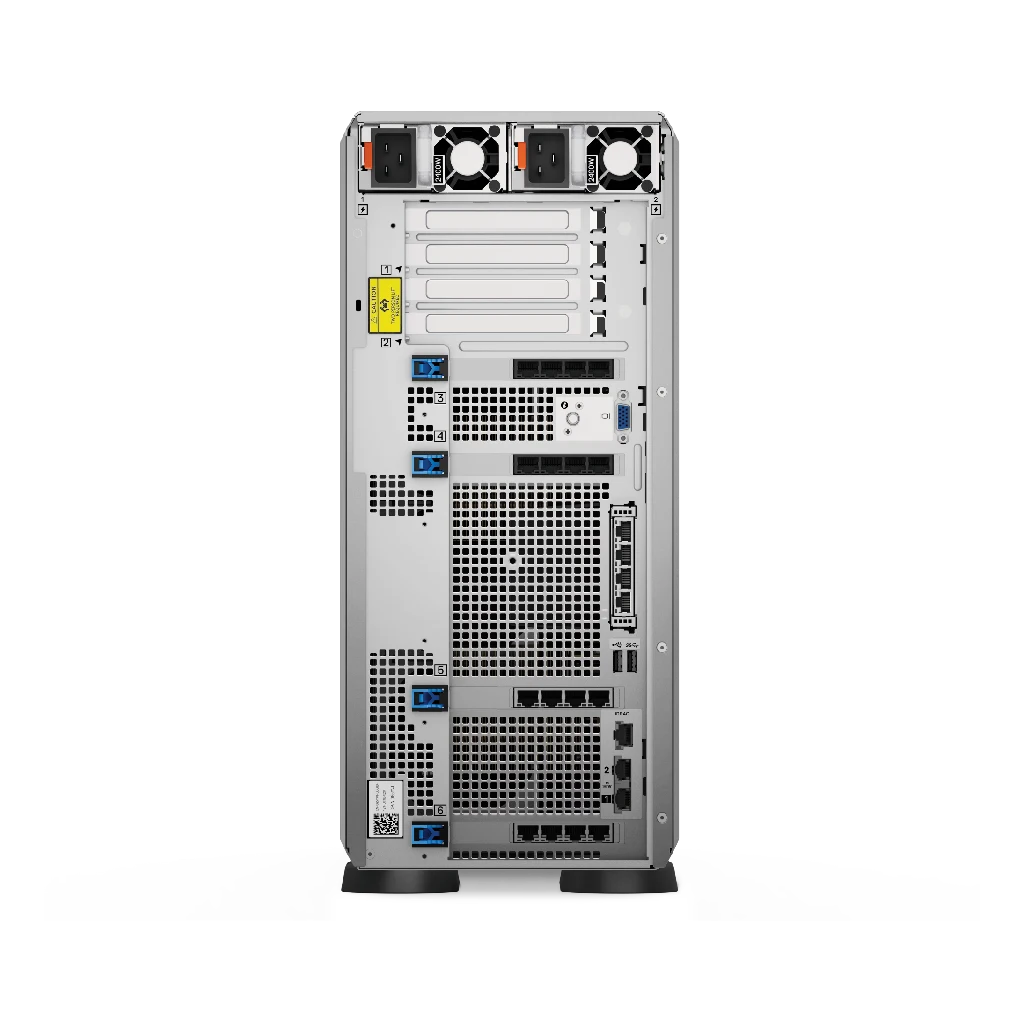

Rear View
| 1. | Power supply unit (PSU 1) | 2. | Power supply unit (PSU 2) |
| 3. | PCIe expansion card slots (4) | 4. | System identification button |
| 5. | VGA port | 6. | OCP NIC port (optional) |
| 7. | USB 2.0 | 8. | USB 3.0 |
| 9. | Dedicated iDRAC9 Ethernet port | 10. | NIC ports (2) |
| Processor: | Up to two 4th Generation Intel® Xeon Scalable processor, with up to 32 cores per processor Up to two 5th Generation Intel® Xeon Scalable processor, with up to 28 cores per processor |
| Memory: | • 16 DDR5 DIMM slots, supports RDIMM 1 TB max • Speeds up to 4800 MT/s on the 4th Generation Intel® Xeon Scalable processor • Speeds up to 5200 MT/s on the 5th Generation Intel® Xeon Scalable processor • Supports registered ECC DDR5 DIMMs only |
| Storage controllers: | Internal PERC: fPERC H965i, fPERC H755N, fPERC H755, fPERC H355, fPERC HBA355i, HBA465i fPERC • Internal Boot: Boot Optimized Storage Subsystem (BOSS-N1): HWRAID 2 x M.2 NVMe SSD drives, or USB • External HBA (non-RAID): PERC HBA355e • Software RAID: S160 (for NVMe drives only) |
| Drive Bays: | Front bays: • Up to 12 x 3.5-inch SAS/SATA HDD drives, max 180 TB • Up to 8 x 3.5-inch SAS/SATA HDD drives, max 120 TB • Up to 8 x 3.5-inch SAS/ SATA HDD + 8 x 2.5-inch NVMe SSD drives, max 240 TB • Up to 8 x 2.5-inch SAS/SATA HDD drives, max 120 TB • Up to 16 x 2.5-inch SAS/SATA HDD drives, max 240 TB • Up to 24 x 2.5-inch SAS/SATA HDD drives, max 360 TB |
| Power Supplies: | • 600 W Platinum 100-240 VAC/240 VDC • 700 W Titanium 200-240 VAC/240 VDC • 800 W Platinum 100-240 VAC/240 VDC • 1100 W Titanium 100-240 VAC/240 VDC • 1100 W DC/-48-(-60) V • 1400 W Platinum 100-240 VAC/240 VDC • 1400 W Titanium 100-240 VAC/240 VDC • 1400 W Titanium 277 VAC/336 VDC • 1800 W Titanium 200-240 VAC/240 VDC • 2400 W Platinum 100-240 VAC/240 VDC • 2800 W Titanium 200-240 VAC/240 VDC |
| Cooling Options: | Air cooling |
| Fans: | • Up to eight Standard (STD) fans or High performance (HPR) fans |
| Dimensions: | • Height — 464.0 mm (18.26 inches) (with feet) 508.8 mm (20.03 inches) (with caster wheels) 446.0 mm (17.60 inches) (without feet) • Width — 200.0 mm (7.87 inches) • Depth — 678.2 mm (26.70 inches) (with bezel) 660.6 mm (26 inches) (without bezel) |
| Form Factor: | 4.5U tower server |
| Embedded Management: | • iDRAC9 • iDRAC Direct • iDRAC RESTful API with Redfish • iDRAC Service Module • Quick Sync 2 wireless module |
| Bezel: | Optional security bezel |
| OpenManage Software: | • OpenManage Enterprise • OpenManage Power Manager plugin • OpenManage Service plugin • OpenManage Update Manager plugin • CloudIQ for PowerEdge plug in • OpenManage Enterprise Integration for VMware vCenter • OpenManage Integration for Microsoft System Center • OpenManage Integration with Windows Admin Center |
| Mobility: | OpenManage Mobile |
| OpenManage Integrations: | • BMC Truesight • Microsoft System Center • OpenManage Integration with ServiceNow • Red Hat Ansible Modules • Terraform Providers • VMware vCenter and vRealize Operations Manage |
| Security: | Cryptographically signed firmware • Data at Rest Encryption (SEDs with local or external key mgmt) • Secure Boot • Secure Erase • Secured Component Verification (Hardware integrity check) • Silicon Root of Trust • System Lockdown (requires iDRAC9 Enterprise or Datacenter) • TPM 2.0 FIPS, CC-TCG certified, TPM 2.0 China NationZ |
| Embedded NIC: | 2 x 1GbE LOM on Planar |
| Network Options: | 1 x OCP x8 card 3.0 Note: The system allows both LOM on planar and OCP card to be installed on the system |
| GPU Options: | Up to 2 x 300 W DW or 6 x 75 W SW |
| PCIe: | Up to six PCIe slots: • Slot 1: x16 Gen5 Full height, Full length • Slot 2: x16 Gen5 Full height, Full length • Slot 3: x16 Gen4 Full height, Half length • Slot 4: x16 Gen4 Full height, Half length • Slot 5: x16 (x8 lanes) Gen4 Full height, Half length • Slot 6: x16 Gen4 Full height, Half length |
| Operating System and Hypervisors: | • Canonical Ubuntu Server LTS • Microsoft Windows Server with Hyper-V • Red Hat Enterprise Linux • SUSE Linux Enterprise Server • VMware ESXi |
