Overview

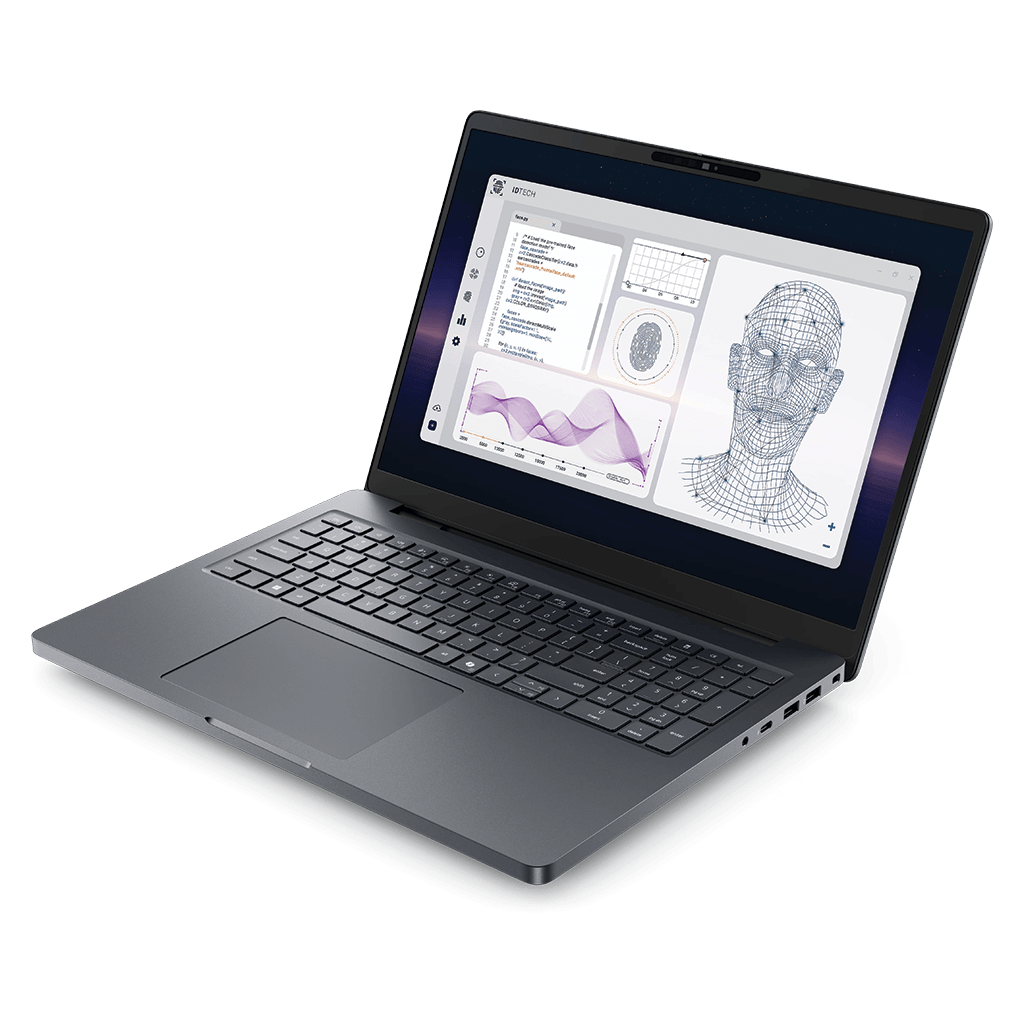

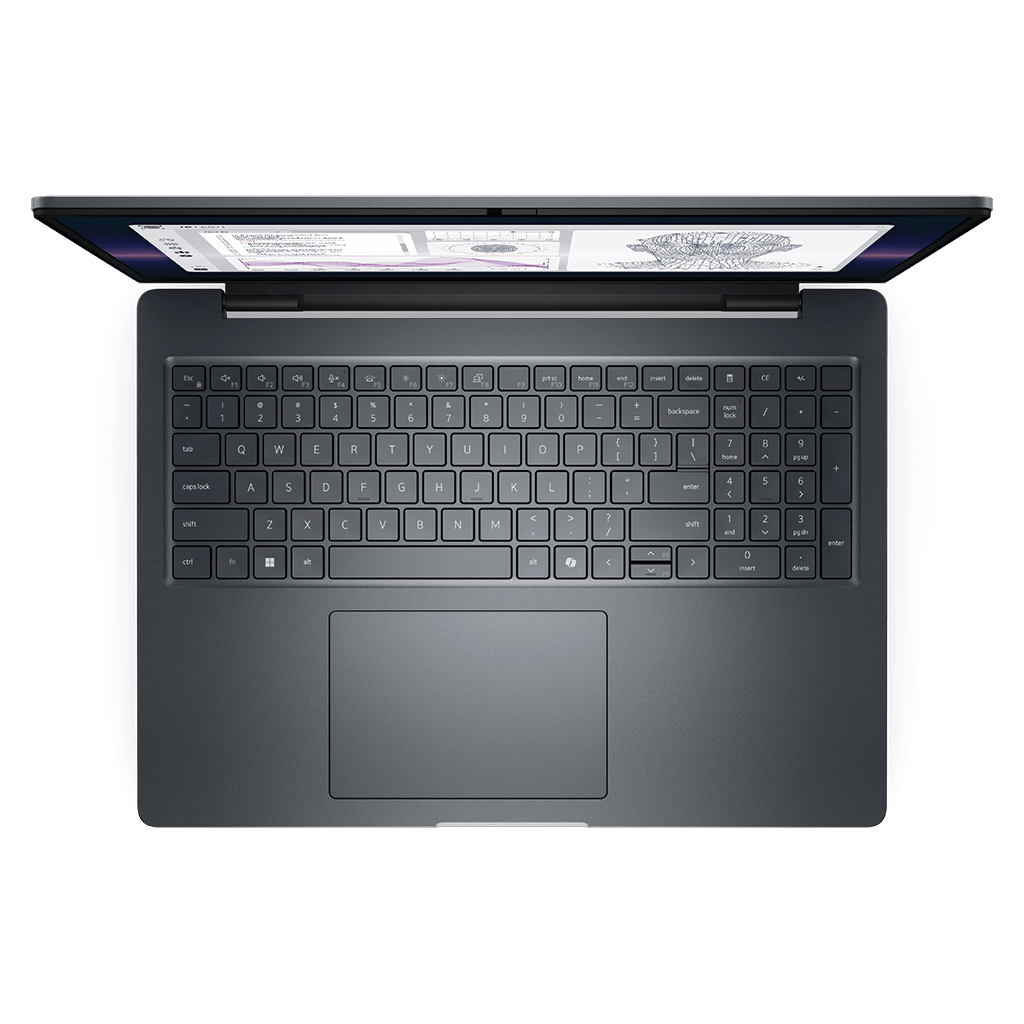

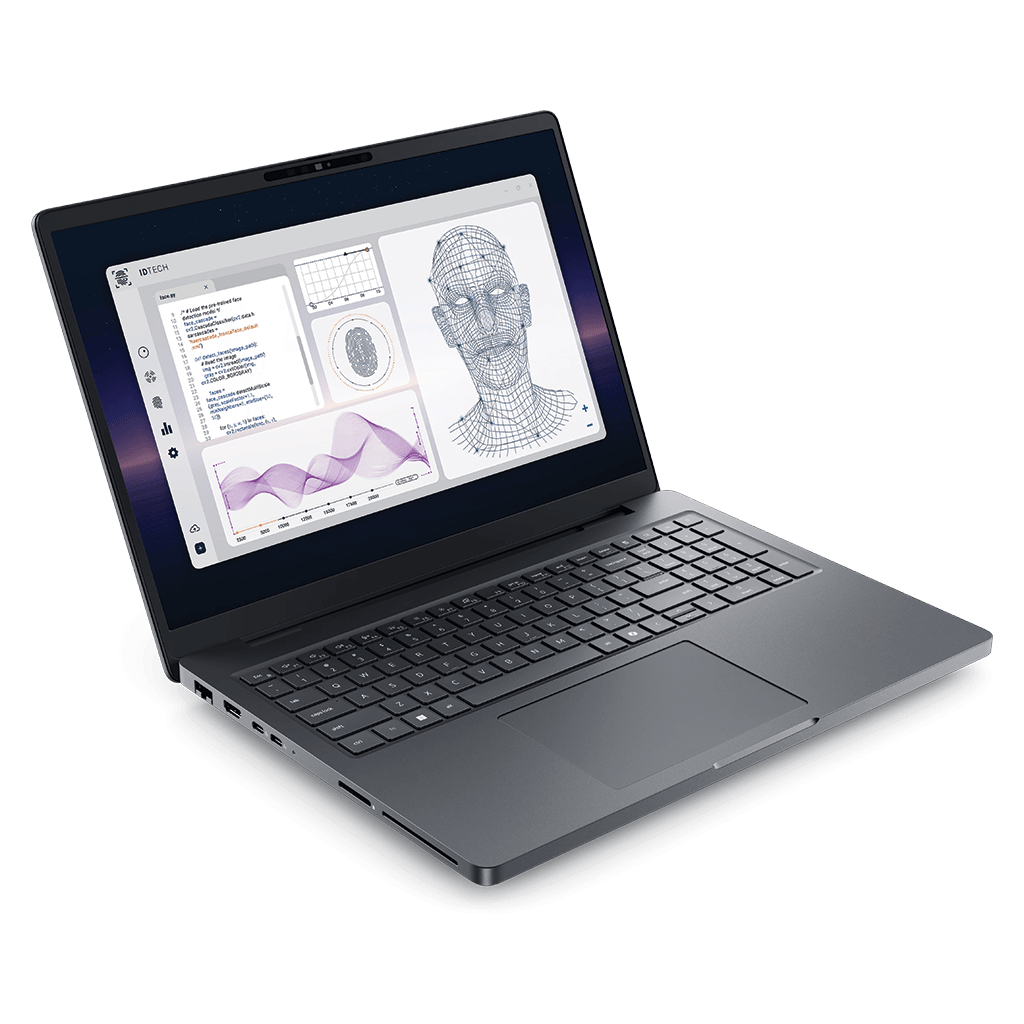

Dell Pro Max 16 Plus
| 1. | Audio jack |
| 2. | Thunderbolt 4 |
| 3. | (2) USB 3.2 Gen 1, one with PowerShare |
| 4. | Lock slot |
| 5. | RJ45 (2.5Gbps) | 6. | HDMI 2.1 |
| 7. | (2) Thunderbolt 5 with Power Delivery & DisplayPort 1.4 (USB Type-C) | 8. | SD Card Reader |
| 9. | Optional Smart Card Reader |
Features
Dell Pro Max 16 Plus – Power Meets Portability
The Dell Pro Max 16 Plus is a next-generation 16-inch mobile workstation
built for professionals who demand desktop-class performance on the move. Designed for
engineers, creators, and innovators, it combines cutting-edge power, durability, and
stunning visuals in one sleek package.
Key Highlights
Unmatched Processing Power
Powered by the latest Intel Core Ultra Series 2 HX processors, the Pro Max 16 Plus delivers the speed and efficiency you need to handle the most demanding workloads.
Professional-Grade Graphics
Equipped with NVIDIA Blackwell RTX PRO GPUs, this workstation is optimized for advanced graphics performance, AI workloads, 3D rendering, and complex simulations.
Durable, Professional Design
Built with MIL-STD-810H certification, the Pro Max 16 Plus is engineered to withstand tough environments without compromising on style or portability.
Brilliant Visual Experience
Featuring a 16-inch 4K UHD 120Hz OLED touchscreen, you’ll experience vibrant colors, sharp detail, and smooth responsiveness—perfect for design, editing, and immersive visuals.
Massive Memory & Storage
With support for up to 256GB DDR5 CAMM2 memory and up to 12TB of ultra-fast storage across three M.2 Gen5 slots, this workstation is ready for heavy multitasking and large projects.
Next-Gen Connectivity
Enjoy seamless connectivity with modular USB-C ports, Thunderbolt 5 support, and compact USB-C charging, ensuring compatibility with all your devices and peripherals.
AI-Powered Capabilities
The Dell Pro Max 16 Plus is more than just a workstation—it’s your **AI partner**.
With built-in AI acceleration and optimized hardware, it empowers professionals to
work smarter, faster, and more creatively.
AI Acceleration
Leverage dedicated AI cores to speed up machine learning, content creation, and real-time data analysis.
Smarter Workflows
Optimize productivity with intelligent automation for video editing, design, rendering, and predictive analytics.
Future-Ready AI
Designed for the future of AI computing, ensuring compatibility with the latest AI models, tools, and applications.
Specification
| Processor: | Intel Core Ultra 5 245HX (13 TOPS NPU, 14 cores, 14 threads, up to 5.1 GHz, 55 W); Intel Core Ultra 7 265HX (13 TOPS NPU, 20 cores, 20 threads, up to 5.3 GHz, 55 W); Intel Core Ultra 9 285HX (13 TOPS NPU, 24 cores, 24 threads, up to 5.5 GHz, 55 W) |
| Operating System: | Windows 11 Pro; Windows 11 Home; Ubuntu Linux 24.04 |
| Video Card: | Intel Graphics; NVIDIA RTX PRO 1000 Blackwell, 8 GB GDDR7; NVIDIA RTX PRO 2000 Blackwell, 8 GB GDDR7; NVIDIA RTX PRO 3000 Blackwell, 12 GB GDDR7; NVIDIA RTX PRO 4000 Blackwell, 16 GB GDDR7; NVIDIA RTX PRO 5000 Blackwell, 24 GB GDDR7 |
| Display: | 40.6cm (16"), Non-Touch, FHD+, 60Hz, WVA, 45% NTSC, 300 nits; 40.6cm (16"), Non-Touch, FHD+, 120Hz, WVA, 100% DCI-P3, 500 nits, Low Blue Light; 40.6cm (16"), Touch, UHD+, 120Hz, OLED, 100% DCI-P3, 500 nits, Low Blue Light, VESA HDR TrueBlack 1000 |
| Memory: | For computers shipped with CAMM2 modules (at RTS) : 64 GB: 1 x 64 GB, 6400 MT/s, CAMM2, dual-channel ; 128 GB: 1 x 128 GB, 6400 MT/s, CAMM2, dual-channel ; For computers shipped with CAMM2 modules (Post RTS) : 64 GB: 1 x 64 GB, 7200 MT/s, CAMM2, dual-channel ; 128 GB: 1 x 128 GB, 7200 MT/s, CAMM2, dual-channel ; 256 GB: 2 x 128 GB, 4400 MT/s or above, CAMM2, dual-channel ; For computers shipped with CSoDIMM modules (at RTS) : 16 GB: 1 x 16 GB, DDR5, 6400 MT/s, CSoDIMM, Non-ECC ; 32 GB: 2 x 16 GB, DDR5, 6400 MT/s, CSoDIMM, Non-ECC ; 64 GB: 2 x 32 GB, DDR5, 6400 MT/s, CSoDIMM, Non-ECC ; For computers shipped with CSoDIMM modules (Post RTS) : 96 GB: 2 x 48 GB, DDR5, 6400 MT/s, CSoDIMM, Non-ECC |
| Storage: | 512 GB, SSD, Gen4 ; 512 GB, SSD, Gen4, SED ; 1 TB, SSD, Gen4, SED ; 2 TB, SSD, Gen4, SED ; 4 TB, SSD, Gen4, SED ; 1 TB, SSD, Gen5, SED ; 2 TB, SSD, Gen5, SED ; |
| Support Services: | 1-year Basic Support Onsite Service; 2-years Basic Support Onsite Service; 3-years Basic Support Onsite Service; 4-years Basic Support Onsite Service; 5-years Basic Support Onsite Service; 1-year Parts Only Warranty; 2-years Parts Only Warranty; 3-years Parts Only Warranty; 4-years Parts Only Warranty; 5-years Parts Only Warranty; 1-year ProSupport Next Business Day Onsite Service; 2-years ProSupport Next Business Day Onsite Service; 3-years ProSupport Next Business Day Onsite Service; 4-years ProSupport Next Business Day Onsite Service; 5-years ProSupport Next Business Day Onsite Service; 1-year ProSupport Plus Same Business Service; 2-years ProSupport Plus Same Business Service; 3-years ProSupport Plus Same Business Service; 4-years ProSupport Plus Same Business Service; 5-years ProSupport Plus Same Business Service; |
| Accidental Damage Protection: | 1-year Accidental Damage Service; 2-years Accidental Damage Service; 3-years Accidental Damage Service; 4-years Accidental Damage Service; 5-years Accidental Damage Service; |
| Keyboard: | Magnetite English International backlit Copilot key keyboard with numeric keypad, 99-key ; Magnetite English International non-backlit Copilot key keyboard with numeric keypad, 99-key |
| Ports: | 1 Global headset port; 1 Thunderbolt™ 4 (40 Gbps) port with Power Delivery and DisplayPort; 1 USB 3.2 Gen 1 (5 Gbps) port with PowerShare; 1 USB 3.2 Gen 1 (5 Gbps) port; 1 RJ45 ethernet port (2.5 Gbps); 1 HDMI 2.1 port; 2 Thunderbolt™ 5 (80 Gbps) ports with Power Delivery and DisplayPort |
| Slots: | 1 Lock slot; 1 SD-card slot; 1 Smart Card Reader slot (optional) |
| Dimensions: | Height (maximum): 30.90 mm (1.22 in.) Height (front): 17.34 mm (0.68 in.) Height (rear): 18.97 mm (0.75 in.) Depth: 258.60 mm (10.18 in.) Width: 360.00 mm (14.17 in.) |
| Weight: | Starting weight: 2.55 kg (5.63 lb) |
| Touchpad: | Precision touchpad |
| Camera: | 1080p at 30 fps HDR FHD RGB camera, Dual-array microphones ; 8MP 30 fps HDR RGB+IR camera, Dual-array microphones, Ambient light sensor |
| Audio and Speakers: | Stereo speakers with Cirrus Logic CS42L43 Audio Controller, 2 W x 2 = 4 W total |
| Chassis: | Magnetite |
| Wireless: | WLAN : Intel Wi-Fi 7 BE200, 2x2, 802.11be, MU-MIMO, Bluetooth 5.4 wireless card ; WWAN : Qualcomm Snapdragon X72 Global 5G (DW5934e), eSIM |
| Primary Battery: | 6-cell, 96 Wh, Lithium Ion, ExpressCharge Boost, Standard ; 6-cell, 96 Wh, Lithium Ion, ExpressCharge Boost, LCL |
