PROCESSOR:
|
Intel Core Ultra 5 245HX (13 TOPS NPU, 14 cores, 14 threads, up to 5.1 GHz, 55 W); Intel Core Ultra 7 265HX (13 TOPS NPU, 20 cores, 20 threads, up to 5.3 GHz, 55 W); Intel Core Ultra 9 285HX (13 TOPS NPU, 24 cores, 24 threads, up to 5.5 GHz, 55 W); |
|
OPERATING SYSTEM:
|
Windows 11 Pro ; Windows 11 Home ; Ubuntu Linux 24.04 |
|
MEMORY:
|
For computers shipped with CAMM modules : 64 GB: 1 x 64 GB, 6400 MT/s, CAMM, dual-channel (post RTS), 128 GB: 1 x 128 GB, 6400 MT/s, CAMM, dual-channel ; For computers shipped with CAMM modules (Post RTS) : 64 GB: 1 x 64 GB, 7200 MT/s, CAMM, dual-channel, 128 GB: 1 x 128 GB, 7200 MT/s, CAMM, dual-channel , 256 GB: 2 x 128 GB, 4400 MT/s or above, CAMM, single-channel ; For computers shipped with CSoDIMM modules (at RTS) : 16 GB: 1 x 16 GB, DDR5, 6400 MT/s, CSoDIMM, Non-ECC, 32 GB: 2 x 16 GB, DDR5, 6400 MT/s, CSoDIMM, Non-ECC, 64 GB: 2 x 32 GB, DDR5, 6400 MT/s, CSoDIMM, Non-ECC, For computers shipped with CSoDIMM modules (Post RTS), 96 GB: 2 x 48 GB, DDR5, 6400 MT/s, CSoDIMM, Non-ECC |
|
PRIMARY HARD DISK DRIVE:
|
512 GB, SSD, Gen4 ; 512 GB, SSD, Gen4, SED ; 1 TB, SSD, Gen4, SED ; 2 TB, SSD, Gen4, SED ; 4 TB, SSD, Gen4, SED ; 1 TB, SSD, Gen5, SED ; 2 TB, SSD, Gen5, SED |
|
VIDEO CARD:
|
Intel Graphics ; NVIDIA RTX PRO 1000 Blackwell, 8 GB GDDR7 ; NVIDIA RTX PRO 2000 Blackwell, 8 GB GDDR7 ; NVIDIA RTX PRO 3000 Blackwell, 12 GB GDDR7; NVIDIA RTX PRO 4000 Blackwell, 16 GB GDDR7; NVIDIA RTX PRO 5000 Blackwell, 24 GB GDDR7; |
|
DISPLAY:
|
45.7cm (18”), Non-Touch, QHD+, 120Hz, WVA, 100% DCI-P3, 500 nits, Low Blue Light |
|
SECURITY SOFTWARE:
|
Trusted Platform Module (TPM) 2.0 security |
|
WARRANTY:
|
1Y Basic Hardware Services ; 2Y Basic Hardware Services ; 3Y Basic Hardware Services ; 4Y Basic Hardware Services ; 5Y Basic Hardware Services ; 1Y ProSupport Next Business Day Onsite Service ; 2Y ProSupport Next Business Day Onsite Service ; 3Y ProSupport Next Business Day Onsite Service ; 4Y ProSupport Next Business Day Onsite Service ; 5Y ProSupport Next Business Day Onsite Service ; 1Y ProSupport Plus Same Business Service ; 2Y ProSupport Plus Same Business Service ; 3Y ProSupport Plus Same Business Service ; 4Y ProSupport Plus Same Business Service ; 5Y ProSupport Plus Same Business Service |
|
ACCIDENTAL DAMAGE SERVICES:
|
1-year Accidental Damage Service ; 2-year Accidental Damage Service ; 3-year Accidental Damage Service ; 4-year Accidental Damage Service ; 5-year Accidental Damage Service |
|
TOUCHPAD:
|
Precision touchpad |
|

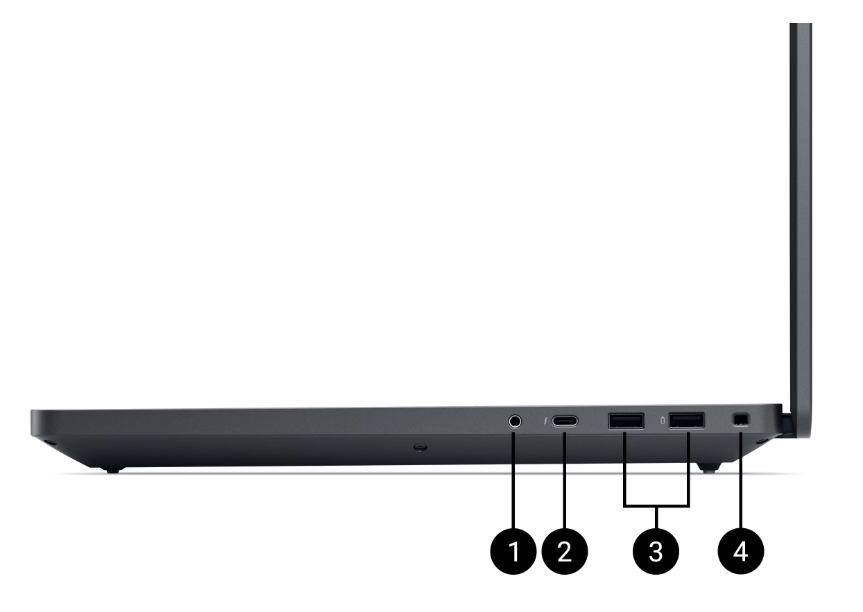

PORTS:
|
2 Thunderbolt 5 (80 Gbps) ports with Power Delivery and DisplayPort; 1 Thunderbolt 4 (40 Gbps) port with Power Delivery and DisplayPort ; 1 USB 3.2 Gen 1 (5 Gbps) port with PowerShare ; 1 USB 3.2 Gen 1 (5 Gbps) port; 1 HDMI 2.1 port ; 1 RJ45 ethernet port (2.5 Gbps) ; 1 Global headset port |
|
SLOTS:
|
1 SD-card slot ; 1 smart card reader slot ; 1 noble lock slot |
|
DIMENSIONS:
|
Height (rear): 19.56 mm (0.77 in.) Height (peak): 31.70 mm (1.25 in.) (Peak height includes Quick Access Door (30.2 mm without this door)) Height (front): 17.92 mm (0.71 in.) Width: 402 mm (15.83 in.) Depth: 279.95 mm (11.02 in.) |
|
WEIGHT:
|
Weight (minimum): 3.25 kg (7.17 lb) |
|
CAMERA:
|
1080p at 30 fps HDR FHD RGB camera, Dual-array microphones ; 8MP 30 fps HDR RGB+IR camera, Dual-array microphones, Ambient light sensor |
|
AUDIO AND SPEAKERS:
|
Stereo speakers with Cirrus Logic CS42L43 Audio Controller, 2 W x 2 = 4 W total |
|
CHASSIS:
|
Magnetite |
|
PRIMARY BATTERY:
|
6-cell, 96 Wh, Lithium Ion, ExpressCharge Boost, Standard ; 6-cell, 96 Wh, Lithium Ion, ExpressCharge Boost, LCL |
|
POWER:
|
165 W AC adapter, USB Type-C ; 280 W AC adapter, USB Type-C |
|
CHIPSET:
|
Intel® ARL-HX WM880 |
