Overview

Name: Dell Pro Max Micro workstation
Brand: HP

Dell Pro Max Micro Workstation

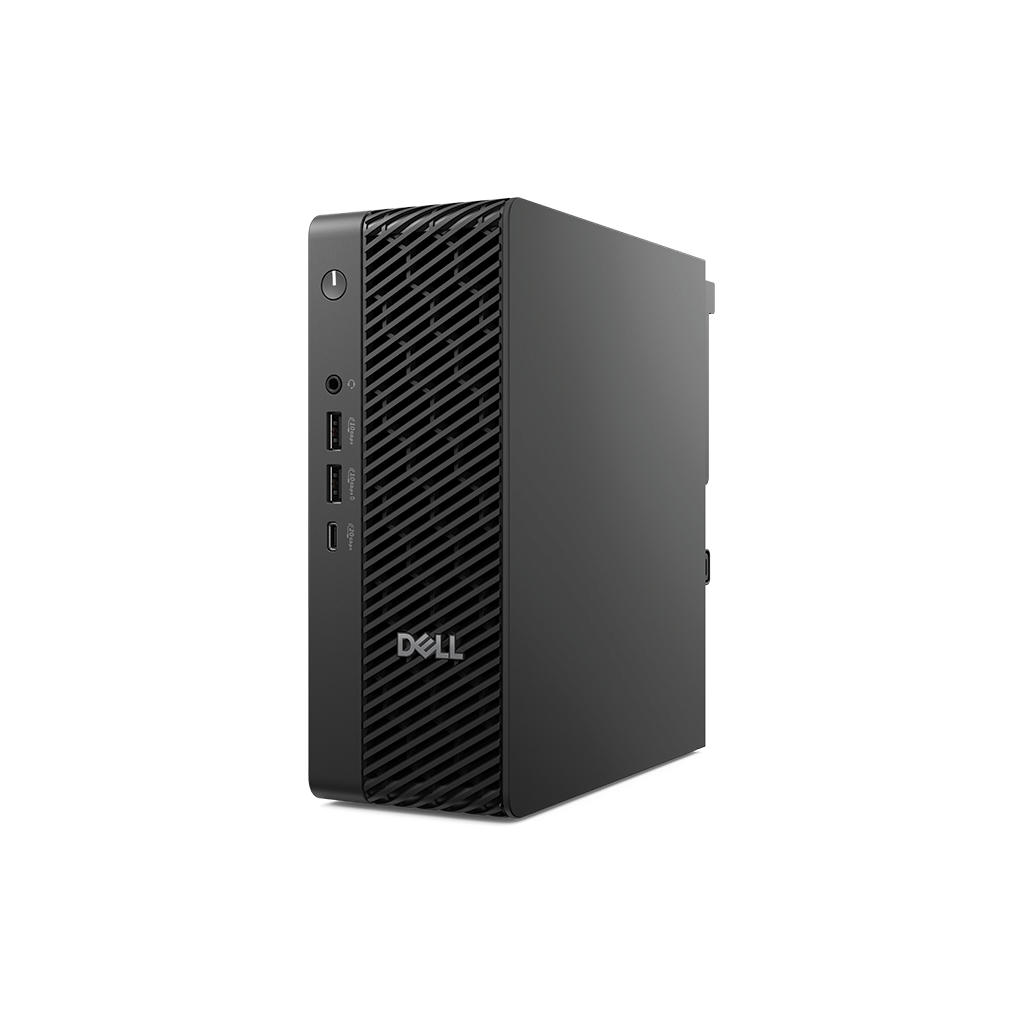

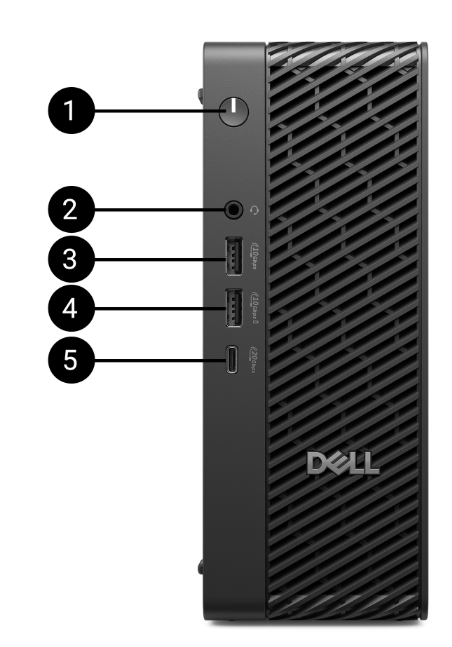

Front View :

1.	Power button
2.	Universal audio port
3.	USB 3.2 Gen 2 (10Gbps)
4.	USB 3.2 (10Gbps) with PowerShare
5.	USB-C 3.2 Gen 2x2 (20Gbps)

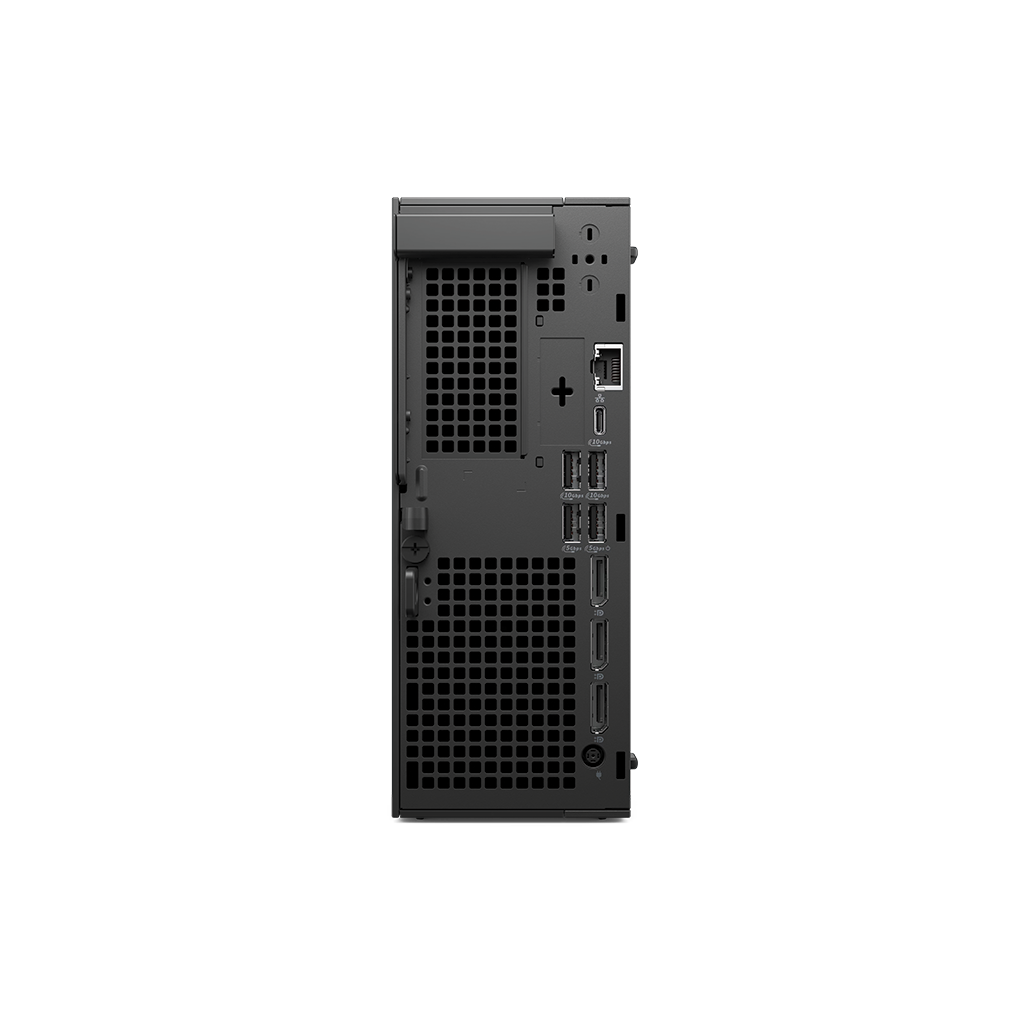

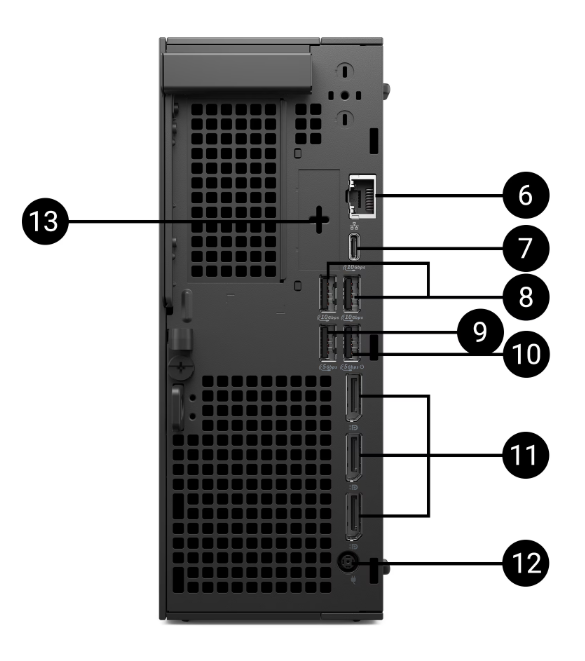

Rear View :

6.	RJ-45 Ethernet (10/100/1000 Mbps)	7.	USB-C 3.2 Gen 2 (10Gbps)
8.	(2) USB 3.2 Gen 2 (10Gbps)	9.	USB 3.2 (5 Gbps)
10.	(1) USB 3.2 (5 Gbps) with Smart Power On	11.	(3) DisplayPort
12.	Power connector Optional port module (choose one): -VGA -HDMI 2.1 FRL -DisplayPort™ 2.1 (UHBR20) -Serial/PS2	13.	-USB 3.2 Gen 2 (10Gbps) Type-C with DisplayPort Alt Mode port -(2) USB-A 3.2 Gen 2 (10Gbps) -TBT4 (40Gbps) + USB-C (10Gbps) -5G Optical Fiber -5GbE LAN NIC

Features

Exceptional performance

Features Intel Core Ultra processors with a dedicated NPU, allowing apps using AI to run faster and smoother

Enhanced power

Supporting 65W CPU running at 85W, enabled by a new thermals solution.

Next-level professional graphics

Up to NVIDIA RTX™ 4000 SFF Ada graphics

Gen over gen chassis consistency

Compact form factor for uncompromised performance in the smallest of spaces

Streamline your setup

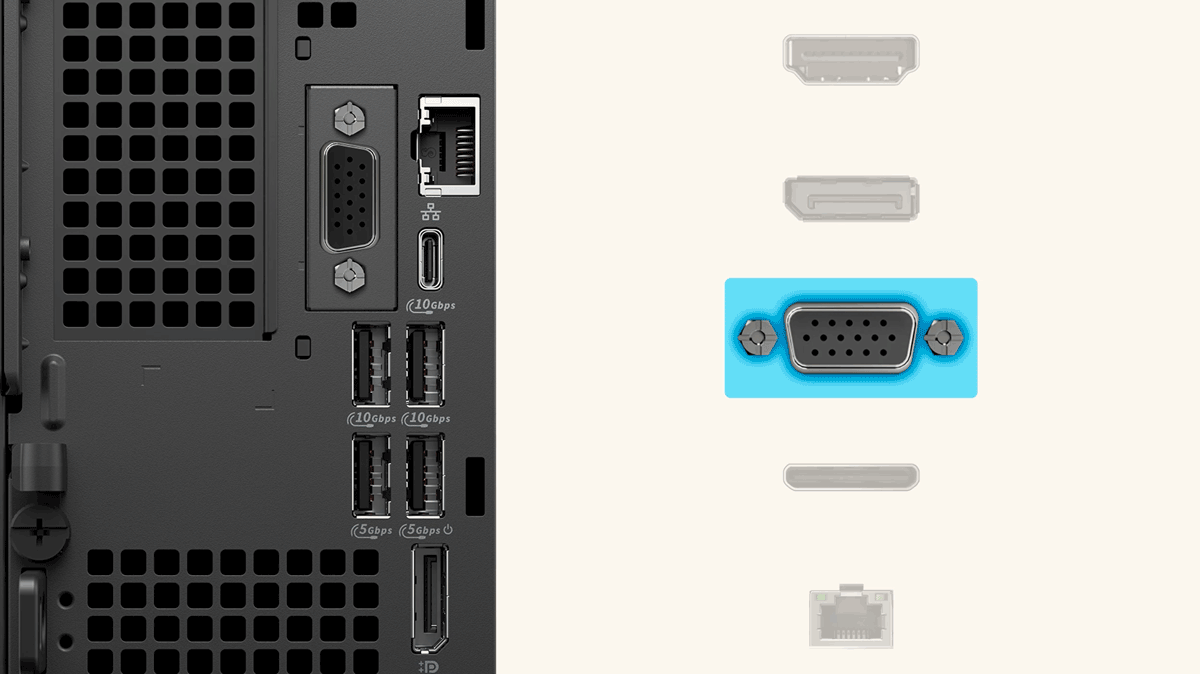

Optional module, featuring 9 different port options in a unified design for increased versatility.

Enhanced workspace productivity

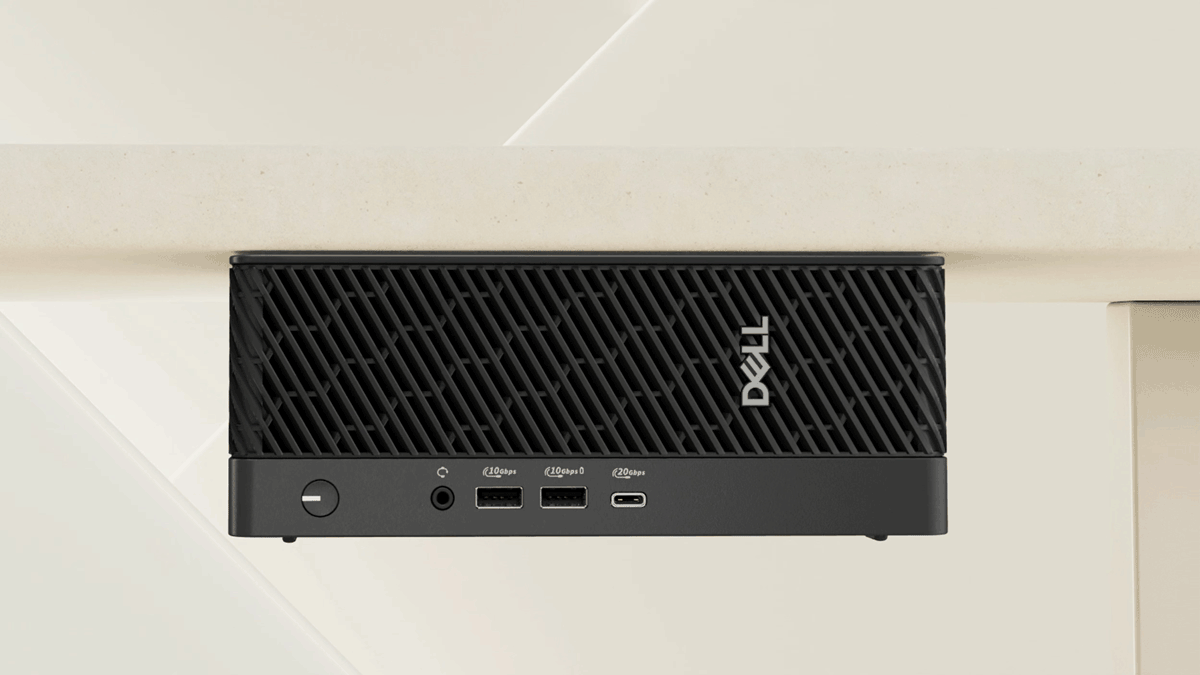

Multiple mounting options including AIO stand, hypershelf and wall & under desk mounts.

Peace of mind reliability

Tested and certified by Independent Software Vendors to ensure industry leading software run reliably and with the best possible performance.

Optimize your performance

Up to 64GB DDR5 memory with ECC options and 8TB of SSD storage.

Keep your AI PC running smoothly

Reliable Memory Technology Pro works with Error Correction Code (ECC) memory to identify bad memory sectors and mapthem out, so they are not accessed.

Easily manageable commercial PCs

Helps your IT Admins save time, money, and resources when managing a fleet of PCs.

Sustainable materials

The Dell Pro Max Micro Workstation Designed with sustainable materials like post-consumer recycled plastic, closed loop ITE derived plastic and recycled ocean-bound plastic.

Specification

Processor:	Intel Core Ultra 9 285 vPro; Intel Core Ultra 7 265 vPro; Intel Core Ultra 5 245 vPro; Intel Core Ultra 5 235 vPro;
Operating System:	Windows 11 Home, 64-bit; Windows 11 Pro, 64-bit; Windows 11 Pro National Education, 64-bit; Windows 11 Pro for Workstations; Red Hat Linux 9.4 Enterprise; Ubuntu Linux 24.04 LTS, 64-bit
Video Card:	Intel Graphics; NVIDIA RTX A400, 4 GB GDDR6; NVIDIA RTX A1000, 8 GB GDDR6; NVIDIA RTX 2000 Ada, 16 GB GDDR6; NVIDIA RTX 4000 SFF Ada, 20 GB GDDR6
Memory:	8 GB: 1 x 8 GB, DDR5, 5600 MT/s, single-channel; 16 GB: 1 x 16 GB, DDR5, 5600 MT/s, single-channel; 16 GB: 2 x 8 GB, DDR5, 5600 MT/s, dual-channel; 32 GB: 1 x 32 GB, DDR5, 5600 MT/s, single-channel; 32 GB: 2 x 16 GB, DDR5, 5600 MT/s, dual-channel; 64 GB: 2 x 32 GB, DDR5, 5600 MT/s, dual-channel; 8 GB: 1 x 8 GB, DDR5, 6400 MT/s, single-channel; 16 GB: 1 x 16 GB, DDR5, 6400 MT/s, single-channel; 16 GB: 2 x 8 GB, DDR5, 6400 MT/s, dual-channel; 32 GB: 1 x 32 GB, DDR5, 6400 MT/s, single-channel; 32 GB: 2 x 16 GB, DDR5, 6400 MT/s, dual-channel; 64 GB: 2 x 32 GB, DDR5, 6400 MT/s, dual-channel
Storage:	256 GB, M.2 2230, TLC Gen4 PCIe NVMe, SSD, Class 35; 512 GB, M.2 2230, TLC Gen4 PCIe NVMe, SSD, Class 35; 1 TB, M.2 2230, TLC Gen4 PCIe NVMe, SSD, Class 35; 512 GB, M.2 2280, TLC Gen4 PCIe NVMe, SSD, Self-Encrypting Opal 2.0, Class 40; 1 TB, M.2 2280, TLC Gen4 PCIe NVMe, SSD, Self-Encrypting Opal 2.0, Class 40; 2 TB, M.2 2280, TLC Gen4 PCIe NVMe, SSD, Self-Encrypting Opal 2.0, Class 40
WARRANTY:	1Y Basic Hardware Warranty Service with Onsite Service after Remote Diagnosis; 2Y Basic Warranty Extension ; 3Y Basic Warranty Extension ; 4Y Basic Warranty Extension ; 5Y Basic Warranty Extension ; 1Y ProSupport with Next Business Day Onsite service; 2Y ProSupport with Next Business Day Onsite service ; 3Y ProSupport with Next Business Day Onsite service ; 4Y ProSupport with Next Business Day Onsite service ; 5Y ProSupport with Next Business Day Onsite service ; 1Y ProSupport Plus for Client with Next Business Day Onsite service; 2Y ProSupport Plus for Client with Next Business Day Onsite service; 3Y ProSupport Plus for Client with Next Business Day Onsite service; 4Y ProSupport Plus for Client with Next Business Day Onsite service; 5Y ProSupport Plus for Client with Next Business Day Onsite service;
WIRELESS:	Intel Wi-Fi 7 BE200, 2x2, 802.11be, MU-MIMO, Bluetooth 5.4 wireless card, Puck antenna (optional); Qualcomm FastConnect 7800 DBS, Wi-Fi 7, 802.11be, Bluetooth 5.4 wireless card, Puck antenna (optional)
Ports:	Front: 1 USB 3.2 Gen 2x2 (20 Gbps) Type-C port , 1 USB 3.2 Gen 2 (10 Gbps) with PowerShare port, 1 USB 3.2 Gen 2 (10 Gbps) port, 1 headset (headphone and microphone combo) port ; Rear: 1 USB 3.2 Gen 2 (10 Gbps) Type-C port, 2 USB 3.2 Gen 2 (10 Gbps) ports, 1 USB 3.2 Gen 1 (5 Gbps) port with Smart Power On, 1 USB 3.2 Gen 1 (5 Gbps) port, 3 DisplayPort 1.4a (HBR3 support) ports, 1 RJ45 (10/100/1000 Mbps) Ethernet port, 1 power-adapter port, 1 optional module port (VGA/HDMI 2.1 FRL/DisplayPort™ 2.1 (UHBR20)/Serial/PS2/USB Type C® with DisplayPort™ Alt Mode/2 USB Type-A/Thunderbolt 4 + USB Type-C®/5G Optical Fiber/5GbE LAN NIC)
Slots:	1 Kensington security-cable slot; 1 Padlock ring; 2 PCIe Gen4 x8 slot (x8 and x1 electrically); 1 M.2 2280 Gen4 PCIe NVMe single-sided SSD; 1 M.2 2280 Gen5 PCIe NVMe single-sided SSD; 1 M.2 2230 slot for Wi-Fi and Bluetooth card
Dimensions & Weight:	Height: 206.00 mm (8.11"); Width: 79.30 mm (3.12"); Depth: 178.00 mm (7.00"); Weight (maximum): 2.54 kg (5.59 lb); Weight (minimum): 2.34 kg (5.15 lb)
Power:	180 W AC adapter, 7.4mm barrel; 280 W AC adapter, 7.4mm barrel

Media

Videos

Reference

Dell Pro Max Micro datasheet
