Overview

Dell Pro Max Slim

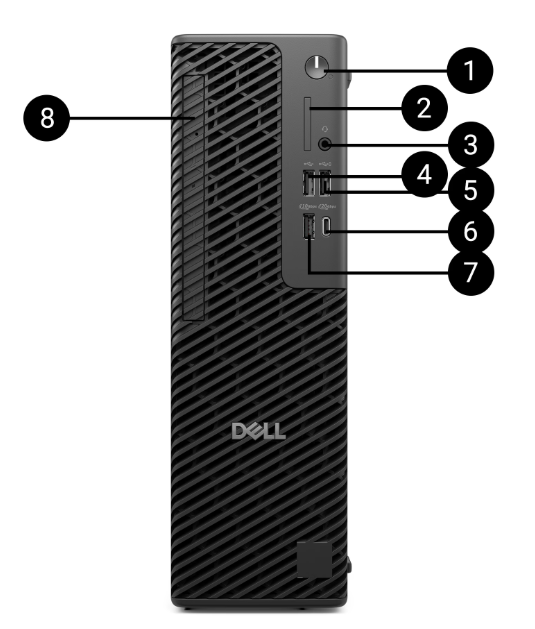

Front View :

1.	Power switch with LED
2.	SD card reader (optional)
3.	Universal audio port
4.	USB 2.0 (480 Mbps)
5.	USB 2.0 (480 Mbps) with PowerShare On
6.	USB-C 3.2 Gen 2x2 (20Gbps)
7.	USB 3.2 Gen 2 (10Gbps)
8.	Optional Optical disk drive

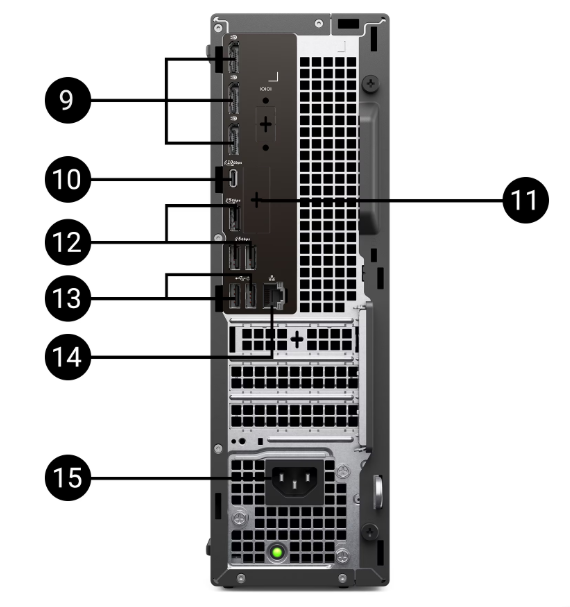

Rear View :

9.	(3) DisplayPort 1.4a	10.	USB-C 3.2 Gen 2 (10Gbps) Optional port module (choose one): -Serial Module -VGA -HDMI 2.1 FRL -DisplayPort™ 2.1 (UHBR20)
11.	-(2) USB-A 3.2 Gen 2 (10Gbps) -USB 3.2 Gen 2 (10Gbps) Type-C with DisplayPort Alt Mode port -TBT4 (40Gbps) + USB-C (10Gbps) -5G Optical Fiber -5Gbe LAN	12.	(3) USB 3.2 Gen 1 (5Gbps)
13.	(2) USB 2.0 (480 Mbps) with PowerShare	14.	RJ-45 Ethernet (10/100/1000 Mbps)
15.	Power Connector

Features

Exceptional performance

Features Intel Core Ultra processors with a dedicated NPU, allowing apps using AI to run faster and smoother.

Enhanced power

Supporting up to 125W CPU, including 65W CPU running at 85W.

Next-level professional graphics

Up to NVIDIA RTX™ 4000 SFF Ada graphics

Space-saving design

Versatile desktop PC that delivers balanced and reliable performance in a small size.

Streamline your setup

Optional module, featuring up to 8 different port options in a unified design for increased versatility.

More expandability

Three PCIe slots and up to 360W power supply options.

Peace of mind reliability

Tested and certified by Independent Software Vendors to ensure industry leading software run reliably and with the best possible performance.

Optimize your performance

Up to 128GB DDR5 memory with ECC options, up to 8.5TB of SSD, up to 8TB of HDD storage.

Keep your AI PC running smoothly

Reliable Memory Technology Pro works with Error Correction Code (ECC) memory to identify bad memory sectors and mapthem out, so they are not accessed.

Easily manageable commercial PCs

Helps your IT Admins save time, money, and resources when managing a fleet of PCs.

Recycled materials

Designed with post-consumer recycled plastic and closed loop ITE derived plastic.

Specification

Processor:	Intel Core Ultra 5 235; Intel Core Ultra 5 245; Intel Core Ultra 5 245K; Intel Core Ultra 7 265; Intel Core Ultra 7 265K; Intel Core Ultra 9 285; Intel Core Ultra 9 285K
Operating System:	Windows 11 Home; Windows 11 Pro; Windows 11 Pro, National Academic; Windows 11 Enterprise; Ubuntu Linux 24.04 LTS
Video Card:	NVIDIA RTX A400, 4 GB GDDR6; NVIDIA RTX A1000, 8 GB GDDR6; NVIDIA RTX 2000 Ada-next, 16 GB GDDR6; NVIDIA RTX 4000 SFF Ada-next, 20 GB GDDR6
Memory:	8 GB, DDR5, 5600 MT/s, UDIMM, Non-ECC, single-channel; 16 GB, DDR5, 5600 MT/s, UDIMM, Non-ECC, single-channel; 8 GB, DDR5, 5600 MT/s, UDIMM, Non-ECC, dual-channel; 32 GB, DDR5, 5600 MT/s, UDIMM, Non-ECC, single-channel; 16 GB, DDR5, 5600 MT/s, UDIMM, Non-ECC, dual-channel; 8 GB, DDR5, 4800 MT/s, UDIMM, Non-ECC, dual-channel; 16 GB, DDR5, 4800 MT/s, UDIMM, Non-ECC, dual-channel; 32 GB, DDR5, 5600 MT/s, UDIMM, Non-ECC, dual-channel; 32 GB, DDR5, 4400 MT/s, UDIMM, Non-ECC, dual-channel; 16 GB, DDR5, 5600 MT/s, UDIMM, ECC, single-channel; 32 GB, DDR5, 5600 MT/s, UDIMM, ECC, single-channel; 16 GB, DDR5, 5600 MT/s, UDIMM, ECC, dual-channel; 16 GB, DDR5, 4800 MT/s, UDIMM, ECC, dual-channel; 32 GB, DDR5, 5600 MT/s, UDIMM, ECC, dual-channel; 32 GB, DDR5, 4400 MT/s, UDIMM, ECC, dual-channel
Storage:	Solid-state drives : 256 GB, M.2 2230, PCIe NVMe Gen4, SSD, Class 35; 512 GB, M.2 2230, PCIe NVMe Gen4, SSD, Class 35; 512 GB, M.2 2280, PCIe NVMe Gen4 x4, SSD, Self-Encrypting Opal 2.0, Class 40; 1 TB, M.2 2280, PCIe NVMe Gen4 x4, SSD, Self-Encrypting Opal 2.0, Class 40; 2 TB, M.2 2280, PCIe NVMe Gen4 x4, SSD, Self-Encrypting Opal 2.0, Class 40; 4 TB, M.2 2280, PCIe NVMe Gen4 x4, SSDSelf-Encrypting Opal 2.0, Class 40; Hard drives : 4 TB, 3.5-inch, 5400 RPM, SATA, HDD; 512 GB, 3.5-inch, 7200 RPM, SATA, HDD; 2 TB, 3.5-inch, 7200 RPM, SATA, HDD; 4 TB, 3.5-inch, 7200 RPM, SAS, Enterprise HDD; 8 TB, 3.5-inch, 7200 RPM, SAS, Enterprise HDD
Support Services:	3Y basic warranty with on-site service after remote diagnostics; 4Y basic warranty extension; 5Y basic warranty extension; 1Y ProSupport with Next Business Day on-site service; 2Y ProSupport with Next Business Day on-site service; 3Y ProSupport with Next Business Day on-site service; 4Y ProSupport with Next Business Day on-site service; 5Y ProSupport with Next Business Day on-site service; 1Y ProSupport Plus for Client with Next Business Day on-site service; 2Y ProSupport Plus for Client with Next Business Day on-site service; 3Y ProSupport Plus for Client with Next Business Day on-site service; 4Y ProSupport Plus for Client with Next Business Day on-site service; 5Y ProSupport Plus for Client with Next Business Day on-site service
Ports:	Front: 1 USB 3.2 Gen 2 (10Gbps) port, 1 USB 3.2 Gen 2x2 Type-C (20Gbps) port, 1 USB 2.0 (480Mbps) with PowerShare port, 1 USB 2.0 (480Mbps) ports, 1 Global headset jack ; Rear: 1 RJ45 port 10/100/1000 Mbps, 3 USB 3.2 Gen 1 (5Gbps) ports, 1 USB 3.2 Gen 2 Type-C (10Gbps) port, 2 USB 2.0 (480Mbps) with PowerShare port, 3 DisplayPort 1.4a (HBR3 support) ports, 1 Optional port (VGA, HDMI 2.1 FRL, DisplayPort 2.1 UHBR20, USB 3.2 Gen 2 (10Gbps), USB 3.2 Gen 2 (10Gbps) Type-C with DisplayPort Alt Mode port, Thunderbolt 4 port, Type-C® Data only Gen 2x1 (10Gbps) port, LC Fiber optic port), 1 Legacy serial port (optional), 1 RJ45 (5GbE) Ethernet port (optional)
Optical Drive:	8x DVD-ROM, 9.5 mm, 8x DVD+/-RW, 9.5 mm, 6x Slimline Blu-Ray Writer
Slots:	1 SD-card 4.0 slot (optional), 1 half-height Gen4 PCIe x16 slot, 1 half-height Gen3 PCIe x4 slot, 1 half-height Gen3 PCIe x1 slot, 2 SATA 3.0 slots for 3.5-inch HDD and slim optical drive, 1 M.2 2230 slot for Wi-Fi and Bluetooth combo card, 1 M.2 2230/2280 slots for solid-state drive, 1 M.2 2280+2230 (without bracket) slot for solid-state drive, 1 M.2 2230 slot for solid-state drive
Dimensions &:	Height: 303.50 mm (11.95 in.), Width: 95.00 mm (3.74 in.), Depth: 293.00 mm (11.53 in.)
Weight:	Starting weight: 3.97 kg (8.75 lb)
Wireless:	Intel BE200 Wi-Fi 7, 2x2, WiFi 802.11be, MIMO, Bluetooth 5.4 wireless card; Qualcomm FastConnect 7800, 2x2 MIMO, 5,760 Mbps, 2.4/5/6 GHz, Wi-Fi 7 (WiFi 802.11be) DBS, and Bluetooth 5.4 wireless card
Power:	260 W internal power supply unit (80PLUS Bronze Certified); 360 W internal power supply unit (80PLUS Platinum Certified)

Media

Videos

Reference

Dell Pro Max Slim datasheet
