Get incredible high performance packed into an insanely petite Z2 Mini G1i AI workstation to tackle 3D design, real-time rendering, and basic model development. Fitting on a desk or behind a monitor, conveniently access ports. When your demands change, you have impressive expandability to upgrade.
| C85MTES | |
|---|---|
| Processor | Intel Core Ultra 7 265K |
| OS | Windows 11 Pro |
| Memory | 16 GB DDR5 |
| Graphics | 4 GB NVIDIA A400 |
| Storage | 1 TB SSD |
| Power | 280 W |
| Action | Get a Quote Shop Now |

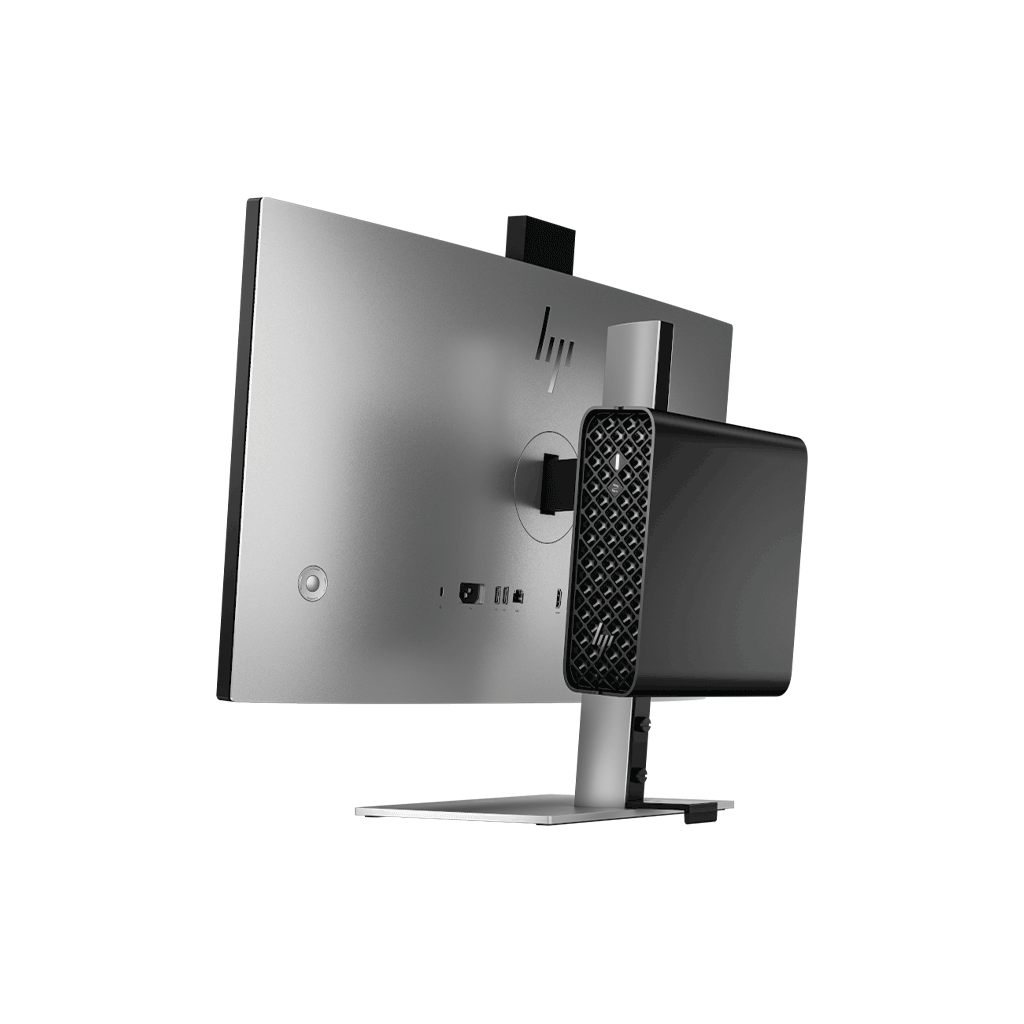

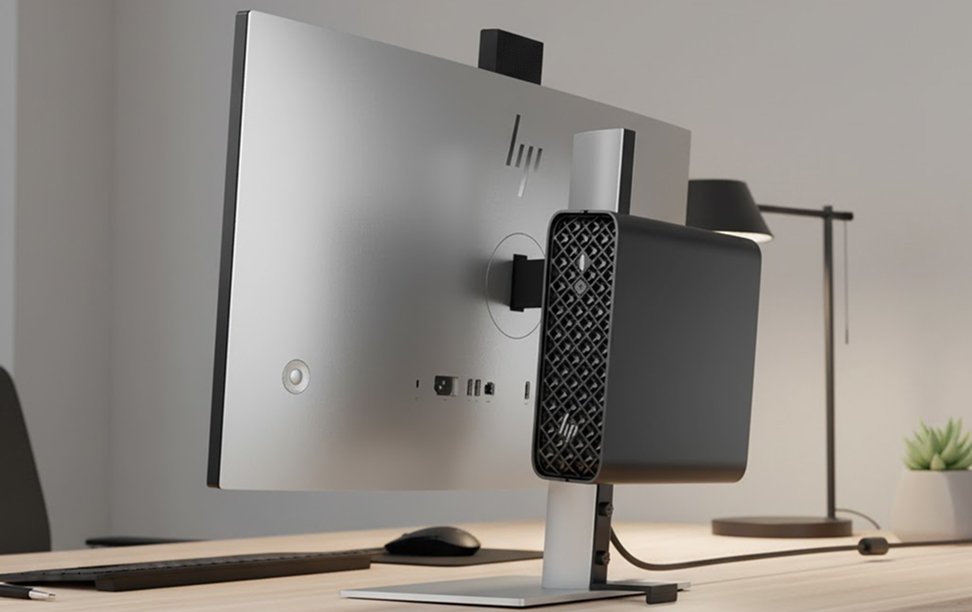

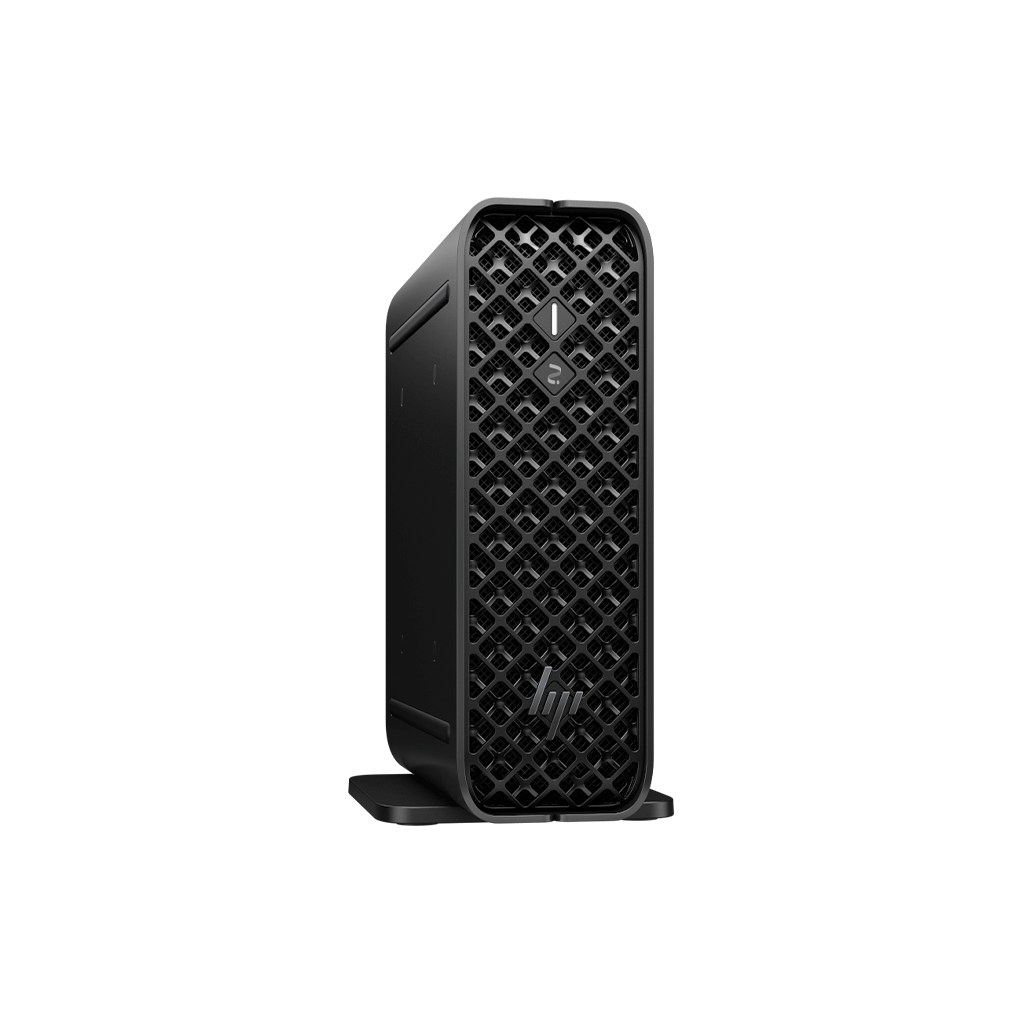

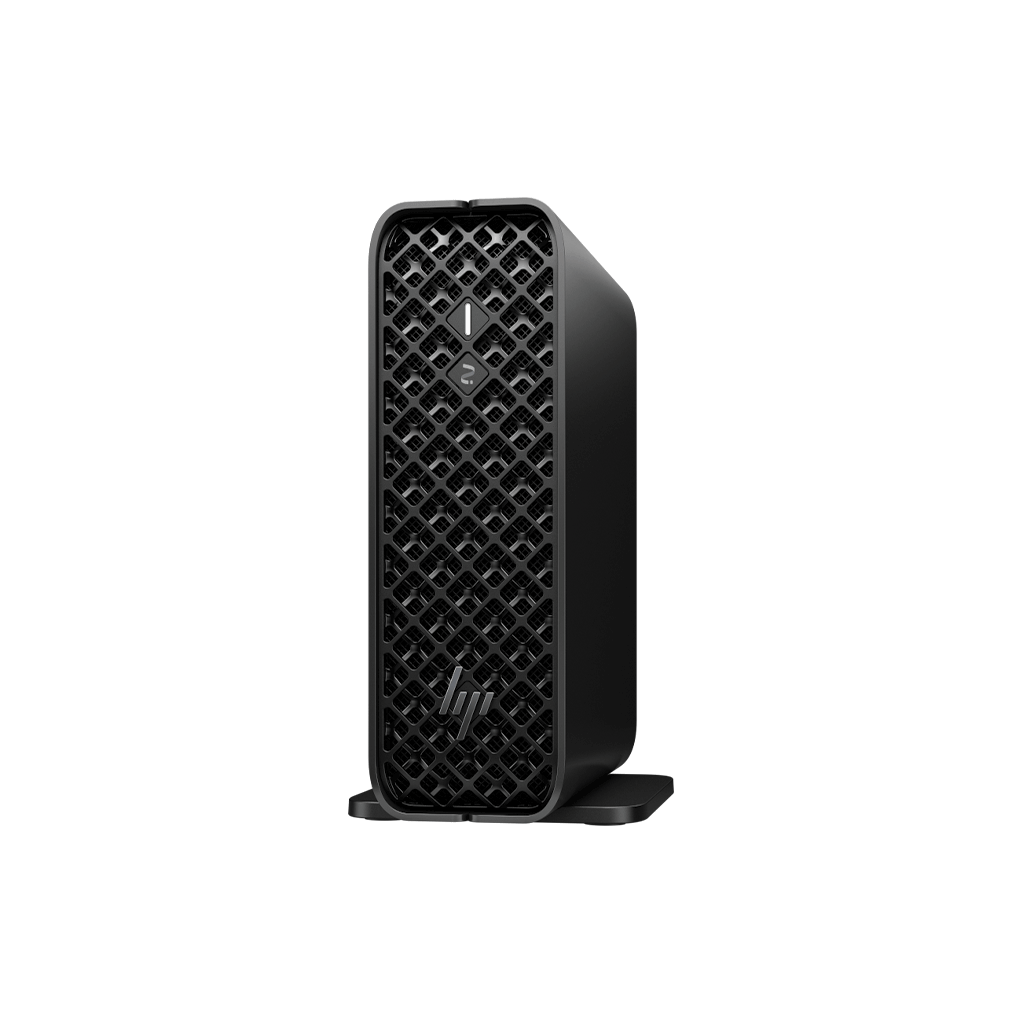

The Z2 Mini can be positioned horizontally or vertically. Set it on a desk, mount it behind a monitor or attach it under a desk.
Accelerate AI workflows with the Z2 Mini G1i AI workstation. Iterate and problem solve faster locally with up to an NVIDIA RTX™ 4000 SFF Ada Generation GPU that delivers up to 307 AI TOPS. A built-in NPU3 efficiently takes on productivity tasks.
The HP Z2 Mini G1 is designed to boost your workflow with its compact size and expanded connectivity. With more ports and powerful performance, it lets you work smoothly, connect more devices, and stay productive all day.
The Z2 Mini can be positioned horizontally or vertically. Set it
on a desk, mount it behind a monitor or attach it under a
desk.

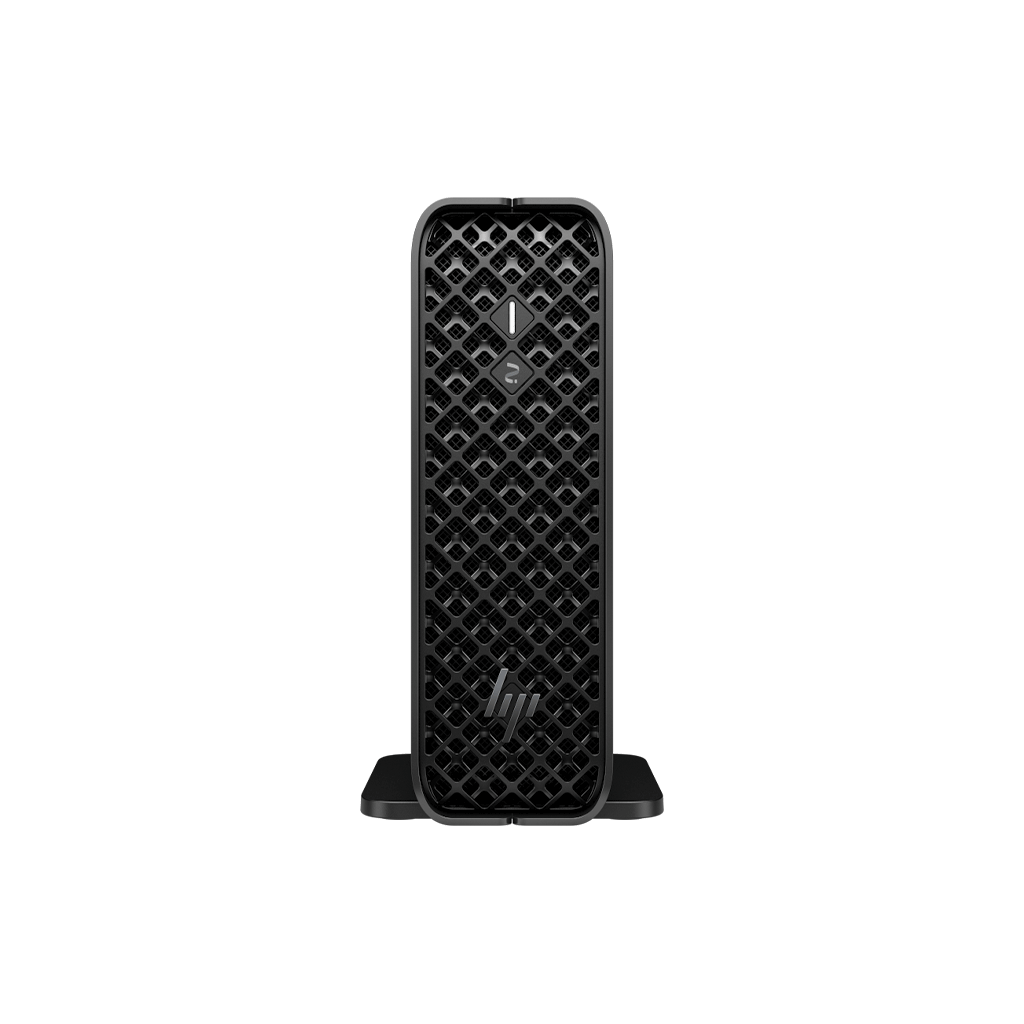

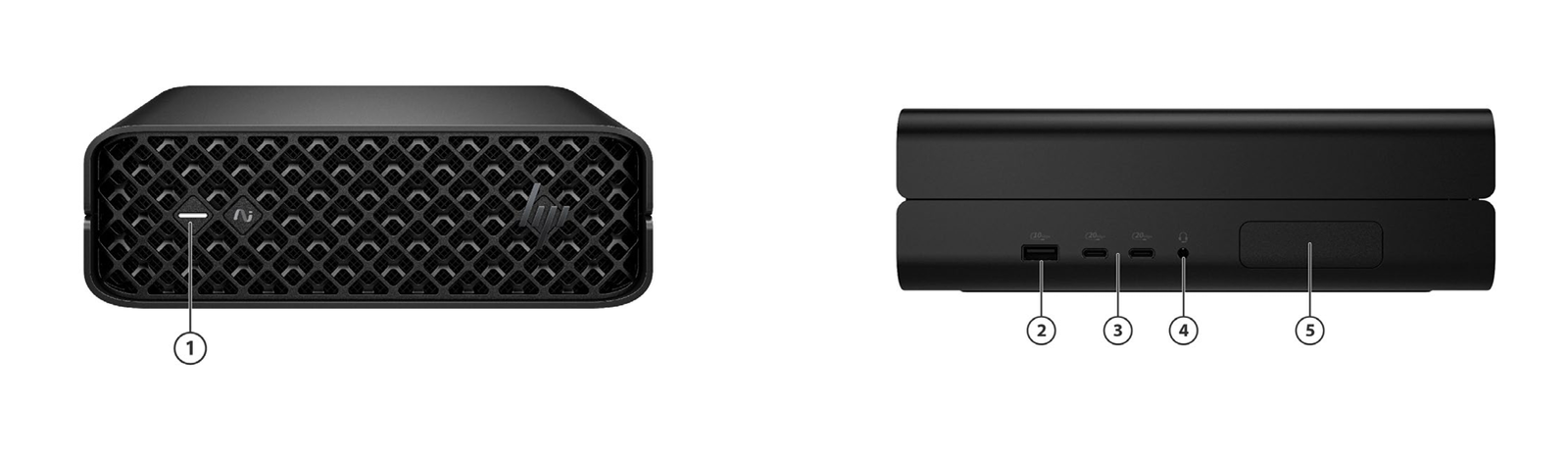

Front View
| 1. | Power button | 2. | 1 SuperSpeed USB Std-A 10Gbps (charge supports up to 5V/2.1A) |
| 3. | 2 SuperSpeed USB Type-C® 20Gbps (charge supports up to 5V/3A) | 4. | headphone/microphone combo |
| 5. | headphone/microphone combo |

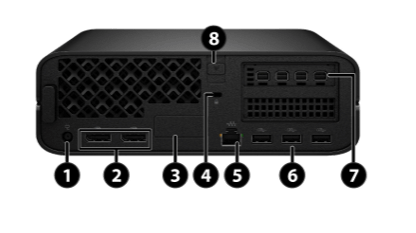

| 1. | Power connector | 2. | 2 DisplayPort™ 1.4 |
| 3. | Flex IO, choice of : 1 Dual SuperSpeed USB Std-A 5Gbps port, 1 SuperSpeed USB Type-C® 10Gbps port (Alt Mode DisplayPort™1.4 with 15W Output) 1, 1 Dual SuperSpeed USB Type-C® 10Gbps port 1, 1 Thunderbolt™ 4 port (40Gbps) 1, HP Remote System Controller, 1) 1GbE NIC, (1) 1Gbps Fiber LC NIC, (1) 2.5GbE NIC1, (1) 10GbE NIC1, | ||
| 4. | Security cable slot | ||
| 5. | 1 RJ-45 | 6. | 3 SuperSpeed USB Std-A 10Gbps | 7. | PCIe, choose of: 1 Dual SuperSpeed USB Std-A 10Gbps, Graphic cards, Serial port |
| 8. | Cover release latch | ||||
| Available Operating Systems: | Windows 11 Pro, Linux Ready, Ubuntu 24.04 LTS |
| Processor family: | Intel Core Ultra 9 processor; Intel Core Ultra 7 processor; Intel Core Ultra 5 processor |
| Available Processors: | Intel Core Ultra 9 285K with Intel Graphics (8 P-cores and 16 E-cores, 24 threads); Intel Core Ultra 9 285 with Intel Graphics (8 P-cores and 16 E-cores, 24 threads); Intel Core Ultra 7 265K with Intel Graphics (8 P-cores and 12 E-cores, 20 threads); Intel Core Ultra 7 265 with Intel Graphics (8 P-cores and 12 E-cores, 20 threads); Intel Core Ultra 5 245K with Intel Graphics (6 P-cores and 8 E-cores, 14 threads); Intel Core Ultra 5 245 with Intel Graphics (6 P-cores and 8 E-cores, 14 threads); Intel Core Ultra 5 235 with Intel Graphics (6 P-cores and 8 E-cores, 14 threads); Intel Core Ultra 5 225 with Intel Graphics (6 P-cores and 4 E-cores, 10 threads) |
| Chipset: | Intel W880 |
| Form factor: | Mini |
| Maximum memory: | 96 GB DDR5-5600 MT/s ECC; 96 GB DDR5-5600 MT/s non-ECC Transfer rates up to 6400 MT/s. |
| Memory slots: | 2 SODIMM |
| Internal storage: | 512 GB up to 4 TB PCIe NVMe M.2 SSD |
| Available Graphics: | Intel Graphics, NVIDIA RTX 4000 Ada Generation, NVIDIA RTX 2000 Ada Generation, NVIDIA RTX A1000, NVIDIA A400 |
| Audio: | Realtek ALC3205 codec, universal audio jack with CTIA and OMTP headset support |
| Expansion slots: | 1 M.2 2230 for WLAN; 2 M.2 2280 PCIe 5 x4; 1 PCIe® 5 x8 electrical (x16 mechanical, low profile connector) |
| Communications: | LAN: Integrated Intel® I219-LM PCIe® GbE; WLAN: Intel® Wi-Fi 6E AX211 (2x2) and Bluetooth® 5.3 wireless card; Intel® Wi-Fi 7 BE200 (2x2) and Bluetooth® 5.4 wireless card, non-vPro |
| Power: | 280 W external power adapter, up to 89% average efficiency, active PFC |
| Dimensions: | 8.3 x 8.6 x 2.7 in; 21.1 x 21.8 x 6.9 cm; (Standard desktop orientation.) |
| Weight: | Starting at 5.29 lb; Starting at 2.4 kg; Starting at 11.9 lb; Starting at 5.4 kg (Package) ; (Exact weights depend upon configuration (System weight only)) |
