The HPE ProLiant DL320 Gen11 is a 1U 1P server with a unique compact design and workload-driven modular design that is purpose-built for edge computing delivering exceptional performance at 1P economics and an excellent choice for both virtualized and containerized workloads. Powered by 4th and 5th Gen Intel Xeon Scalable Processors with up to 60 cores, 270W, increased memory capability (up to 2 TB 5600 MT/s), and high-speed PCIe Gen5 supporting up to four single-wide GPUs (or two double-wide), the HPE ProLiant DL320 Gen11 server is a perfect lowcost, 1U 1P, performance solution. The HPE ProLiant Gen11 servers are engineered to optimize IT at the edge with a cloud operating experience, built-in security, and optimized performance for workloads to drive your business forward.
| P78092-425 | P78088-425 | P80510-425 | P80510-425 | |
|---|---|---|---|---|
| Model | DL320 Gen11 | DL320 Gen11 | P80510-425 | DL320 Gen11 |
| Processor | Intel Xeon Gold 5416S | Intel Xeon Gold 6530 | Intel Xeon Silver 4514Y | Intel Xeon Silver 4510 |
| Dual Processor | Not Support | Not Support | Not Support | Not Support |
| Memory | 64 GB DDR5 RDIMM | 128 GB DDR5 RDIMM | 64 GB DDR5 RDIMM | 64 GB DDR5 RDIMM |
| Storage | 3x 2.4TB SAS HDD | 3x 2.4TB SAS HDD | 2x 480GB SATA SSD | 2x 480GB SATA SSD |
| HDD Drive Bay | 8 SFF | 8 SFF | 8 SFF | 8 SFF |
| Storage Controller | MR416i‑o | MR416i‑o | MR408i‑o | MR408i‑o |
| Network Controller | 1Gb 2-Port Adapter | 1Gb 2-Port Adapter | 1Gb 2-Port Adapter | 1Gb 2-Port Adapter |
| Power Supply | Dual 1000W | Dual 1000W | Dual 1000W | Dual 1000W |
| Redundancy Power Supply | Supported | Supported | Supported | Supported |
| Form Factor | 1U Rack | 1U Rack | 1U Rack | 1U Rack |
| Warranty | 3 year Warranty | 3 year Warranty | 3-year | 3-year |
| Action | Get a Quote | Get a Quote | Get a Quote | Get a Quote |
• HPE ProLiant DL320 Gen11 servers are engineered for your hybrid world. The HPE ProLiant DL320 Gen11 servers simplify the way you control your business’s compute—from edge to cloud—with a cloud operating experience.
• Transform business operations and pivot your team from reactive to proactive with global visibility and insight through a self-service console.
• Automate tasks for efficiency in deployment, instant scalability, and seamless, simplified support and lifecycle management reducing tasks and shortening maintenance windows.
•These experiences are engineered and built into all HPE ProLiant Gen11 servers, whether purchased as physical servers or consume as-a-service using HPE GreenLake as your compute and storage demands grow.
•Simplify and secure server management from edge to cloud with HPE GreenLake for Compute Ops Management. HPE GreenLake for Compute Ops Management is an as-a-service compute management experience that delivers greater simplicity, agility, and speed across your entire compute landscape, globally.
• The HPE ProLiant DL320 Gen11 server is tied into the silicon root of trust and the 4th and 5th Gen Intel® Xeon® Scalable Processor, a dedicated security processor embedded in the Intel Xeon system on a chip (SoC), to manage secure boot, memory encryption, and secure virtualization.
• HPE ProLiant Gen11 servers use the silicon root of trust to anchor the firmware of an HPE ASIC, creating an immutable fingerprint for the Intel® Xeon® Processor that must be matched exactly before the server will boot. This ensures malicious code is contained and healthy servers are protected.
• HPE ProLiant Gen11 servers continuously protect healthy servers by providing rapid detection of security-compromised servers, even to the point of not allowing them to boot if it identifies and contains malicious code, and secure servers at the edge with IDevID certificates installed by default.
• HPE ProLiant Gen11 servers provide automated recovery from a security event, including restoration of validated firmware, and facilitating recovery of the operating system, application, and data connections, providing the fastest path to bring a server back online and into normal operations.
•From silicon to software, from factory to cloud, and from generation to generation, HPE ProLiant Gen11 is engineered with a fundamental security approach to defend against increasingly complex threats through an uncompromising commitment to constant security advancements that are built into our DNA.
•The HPE ProLiant DL320 Gen11 server is an excellent choice for virtualized workloads such as software-defined compute, CDN, and VDI, and secure edge apps that require balancing processor, memory, and network bandwidth.
•Harness major computer performance. The HPE ProLiant DL320 Gen11 server is powered by 4th and 5th Gen Intel® Xeon® Scalable Processors with modern 5nm technology that support up to 60 cores and 270W TDP.
•Enjoy advanced data transfer rates and higher network speeds from the PCIe Gen5 serial expansion bus, with up to 2x16 PCIe Gen5 and 1 OCP slots to improve I/O throughput and reduce latency.
•Utilize 16 DIMM channels per processor for up to 2 TB total DDR5 memory with increased memory bandwidth and performance, and lower power requirements.
•Benefit from real-time operational feedback on server performance plus recommendations for fine-tuning BIOS settings to customize for changing business needs.
•The HPE ProLiant DL320 Gen11 server is supported by HPE GreenLake to simplify IT. With 24x7 monitoring and management, our experts do the heavy lifting to manage your environment with services built into consumption-based solutions.
•Hewlett Packard Enterprise provides customers choice in how they acquire and consume IT. Beyond traditional financing and leasing, HPE offers options that free trapped capital, accelerate infrastructure updates and provide for on-premises pay-per-use consumption with HPE GreenLake.
•Rapidly deploy a broad portfolio of cloud services such as, containers, compute, virtual machines (VMs), accelerated storage, data protection, and more. Workload-optimized, preconfigured solutions can be quickly on-boarded, accelerating your agility
•Benefit from real-time operational feedback on server performance plus recommendations for fine-tuning BIOS settings to customize for changing business needs.
| 1. | Optical Drive (optional - shown) | 2. | Serial number/iLO information pull tab |
| 3. | Quick removal access panel | 4. | Option Display Port & USB 2.0 port bundle kit (blank 10. Unit ID Button/LED shown) |
| 5. | USB 3.2 Gen1 port | 6. | iLO Service Port | 7. | Power On / Standby button and system power LED |
| 8. | Health LED | 9. | NIC Status | 10. | Unit ID Button/LED |
| 11. | SAS/SATA drive bays | 12. | Drive support label |
| 1. | Quick removal access panel | 2. | Serial number/iLO information pull tab |
| 3. | Display Port (optional – shown) | 4. | Universal Media Bay (optional) |
| 5. | USB 3.2 Gen1 port (optional – shown) | 6. | Optical Drive (optional– shown) | 7. | iLO Service Port |
| 8. | Power On / Standby button and system power LED | 9. | Health LED | 10. | NIC Status |
| 11. | Unit ID Button/LED | 12. | USB 3.2 Gen1 port | 13. | Drive bays; backplanes options |
| 14. | Drive support label |

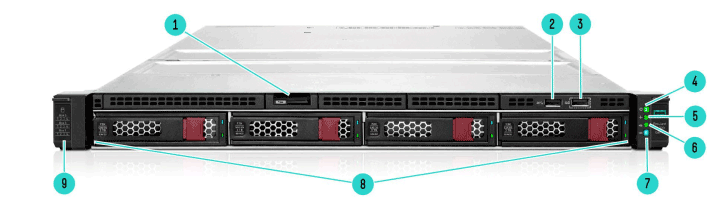

| 1. | Serial number/iLO information pull tab | 2. | Serial number/iLO information pull tab |
| 3. | iLO Service Port | 4. | Power On/Standby button and system power LED |
| 5. | Health LED | 6. | NIC Status | 7. | Unit ID Button/LED |
| 8. | SAS/SATA drive bays | 9. | Drive support label |
| 1. | Drive Bays | 2. | Serial number/iLO information pull tab |
| 3. | Quick removal access panel | 4. | GPU Front Cage |
| 5. | iLO Service Port | 6. | Power On/Standby button and system power LED |
Front View – GPU CTO Server
| 7. | Health LED | 8. | NIC Status | 9. | Unit ID Button/LED |
| 10. | USB 3.2 Gen1 Port | 11. | Drive support label |

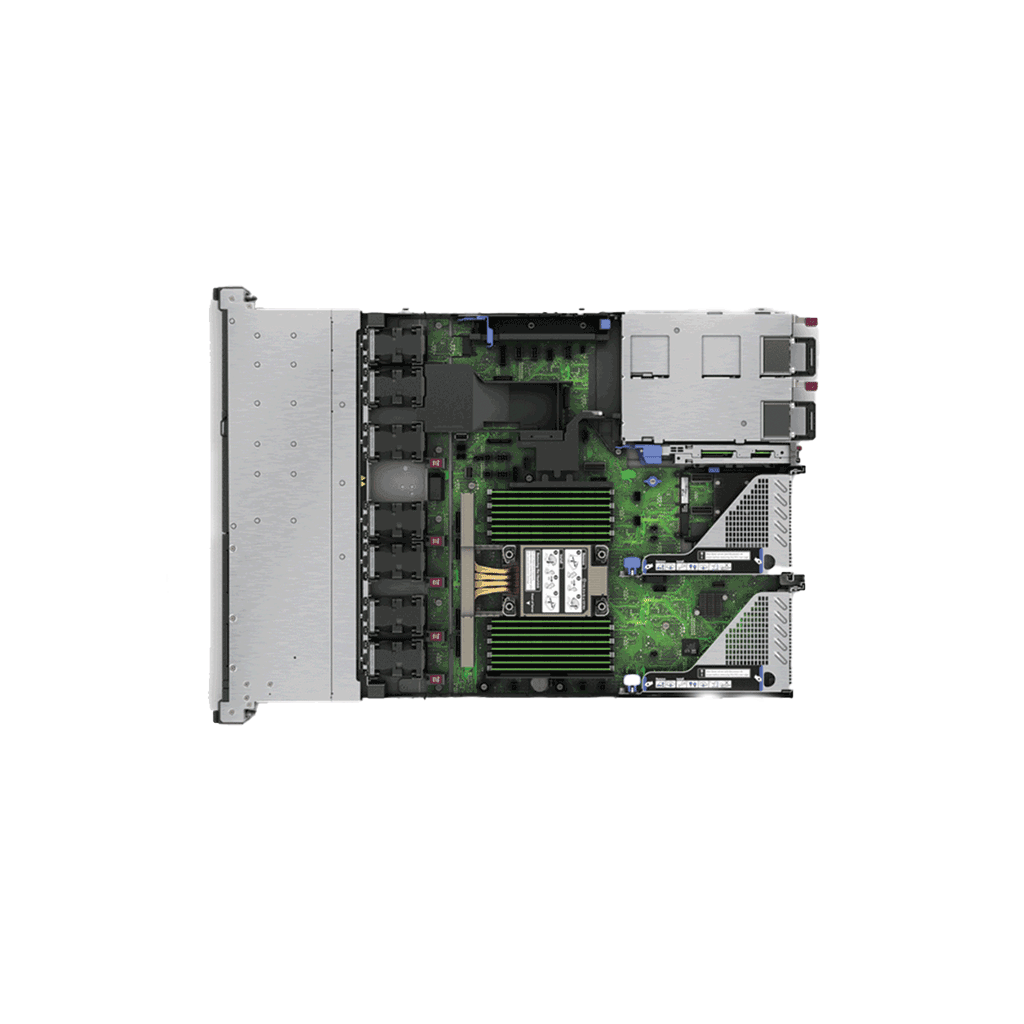

| 1. | Up to 7 Hot Plug Fans | 2. | Two (2) M.2 module connectors (under the air baffle- not 6. Slot-1 PCIe5 x16 FHHL (Primary Riser) visible) |
| 3. | Redundant Power Supply (1 & 2 as shown) | 4. | HPE NS204i-u NVMe Hot Plug Boot Optimized Storage Device (optional – shown) |
| 5. | Slot-2 PCIe5 x16 FHHL (Secondary Riser) | 6. | Slot-1 PCIe5 x16 FHHL (Primary Riser) | 7. | 16 DDR5 DIMM slots (shown) |
| 8. | Heat Sink | 9. | Drive Cage |

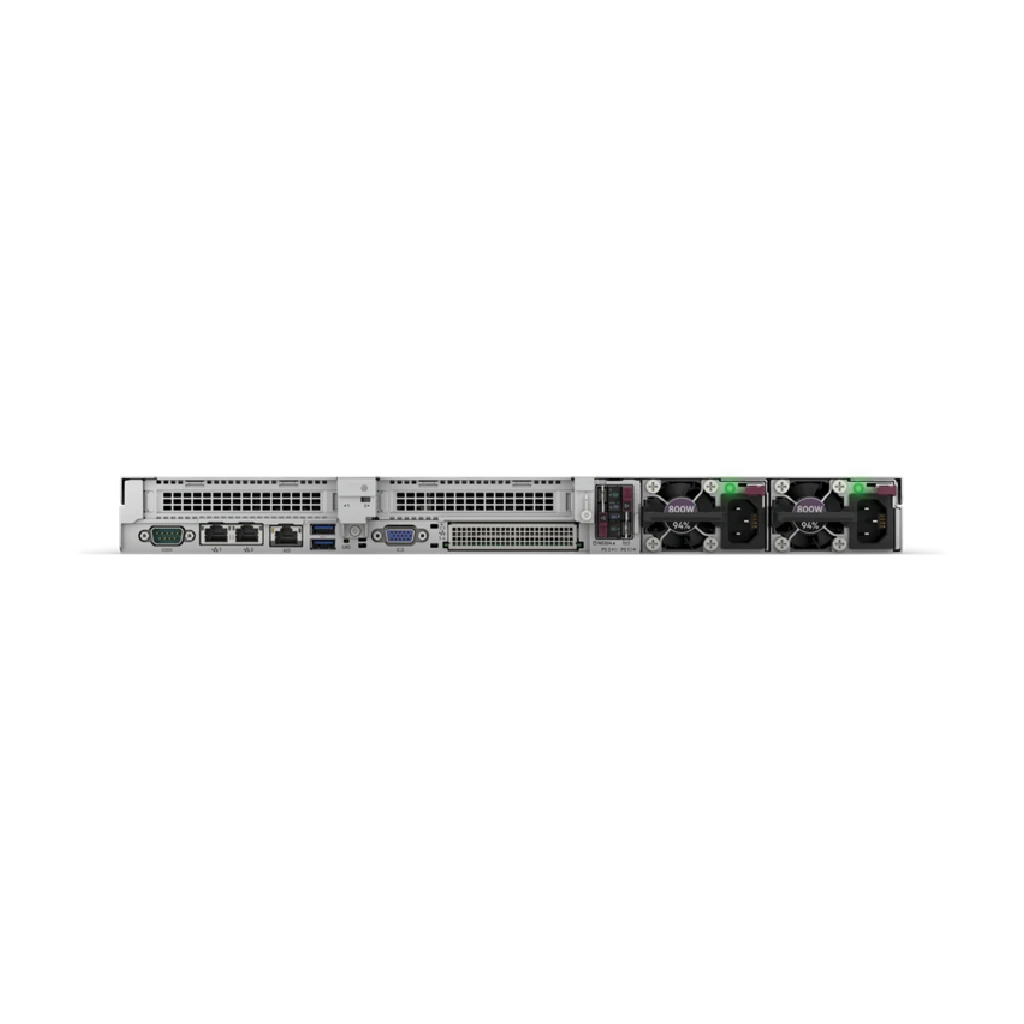

| 1. | Slot-1 & 2 PCIe5 x16 FHHL (Primary and Secondary Riser) | 2. | HPE NS204i-u NVMe Hot Plug Boot Optimized Storage Device (optional – shown) |
| 3. | Hot-plug Power Supply 1 and 2 (1 +1 Redundancy) | 4. | OCP 3.0 Slot: x16 PCIe 5.0 /td> |
| 5. | Video (VGA) port | 6. | UID Indicator LED |
Rear View – Standard for all DL320 Gen11
| 7. | Two (2) USB 3.2 Gen1 ports | 8. | Dedicated iLO management port | 9. | Embedded 1GbE x2 network port |
| 10. | Serial port (optional) |
| Processor type: | Intel |
| Processor family: | 5th Gen Intel® Xeon® Scalable Processors and 4th Gen Intel® Xeon® Scalable Processors |
| Processor core available: | 8 to 60 core, depending on processor. |
| Processor cache: | 22.50 - 300 MB L3, depending on processor. |
| Processor number: | 1 |
| Processor speed: | 3.9 GHz maximum, depending on processor. |
| Maximum memory: | 2.0 TB per socket, one socket only, when populated with 128 GB DDR5 Memory. |
| Memory slots: | 16 DIMM slots per socket, one socket only |
| Memory type: | HPE DDR5 Smart Memory |
| Memory protection features: | HPE Fast Fault Tolerant Memory Advanced ECC Memory Online Spare Memory Mirrored Memory |
| Drive supported: | Up to 8+2 SFF SAS/SATA HDDs or SATA/SAS/NVMe U.2 or U.3 SDDs, depending on model; Up to 12 LFF SAS/SATA HDDs or SSDs, depending on the model; Up to 8 EDSFF E3.s 1T, depending on model; Optional embedded 2 M.2 Boot SSD; Optional RAID 1 NVMe M.2 Boot device (Internal or external accessible from rear wall with 2x NVMe M.2 incorporated). |
| Optical drive type: | None included, optional HPE 9.5mm SATA DVD-RW Optical Drive or HPE Mobile USB DVD-RW Drive |
| Security: | UEFI Secure Boot and Secure Start support. Intel® Software Guard Extensions (SGX) support. Immutable Silicon Root of Trust. Optional Trusted Supply Chain, iLO Security modes, TPM, Chassis Intrusion detection and Bezel Locking kits. |
| Infrastructure management: | Included - HPE Compute Ops Management, HPE iLO Standard with Intelligent Provisioning (embedded), HPE OneView Standard (requires download). Optional - HPE iLO Advanced, and HPE OneView Advanced. |
| Power supply type: | HPE 500W Flex Slot Platinum Hot Plug Power Supply, HPE 800W Flex Slot Platinum Hot Plug Power Supply, HPE 1000W Flex Slot Titanium Power Supply, HPE 1600W Flex slot Platinum Hot Plug Power Supply, HPE 1800-2000W Flex Slot Titanium Hot Plug Low Halogen Power Supply Kit depending on model. |
| Expansion slots: | Maximum, 2 PCIe Gen5 & 1 OCP 3.0 PCIe Gen5, for detail descriptions please refer to the QuickSpecs. |
| Network controller: | Wide range of speeds, cabling, chipsets and form factors (PCIe stand-up adapter and OCP3.0). Please refer to the QuickSpecs for network card choices. |
| Storage controller: | Included - Embedded SATA controller (AHCI or Intel SATA software RAID controller) Optional - HPE Smart Array Gen11 Storage Controller in Variety of protocols - including NVMe-, port count, array utilities, and form factors (PCIe stand-up adapter and OCP3.0). Please refer to the QuickSpecs for storage controllers selection. |
| System fan features: | Standard Fan Kit or High Performance Fan Kit, depending on model. |
| Form factor: | 1U Rack |
| Warranty: | 3/3/3: Server Warranty includes three years of parts, three years of labor, and three years of onsite support coverage. Additional information regarding worldwide limited warranty and technical support is available at: https://h20564.www2.hpe.com/hpsc/wc/public/home. Additional HPE support and service coverage, to supplement the product warranty, is available. |
