The HPE ProLiant DL345 Gen11 server is a scalable 2U 1P solution that delivers exceptional compute performance and large capacity storage options at 1P economics. Powered by 4th and 5th Generation AMD EPYC™ Processors with up to 160 cores, increased memory bandwidth (up to 3 TB), high-speed PCIe Gen5 I/O and EDSFF storage, up to 20LFF/ 34SFF/ 36EDSFF, and up to 4 GPUs at the front, this server is a superb single-socket 2U solution for your data-intensive workloads. Enhanced security features with the HPE silicon root of trust are built into the firmware, creating a digital fingerprint for the AMD Secure Processor to validate safe operation before boot. The HPE DL345 Gen11 server provides impressive storage performance and options for data-intensive workloads like software-defined storage, video transcoding, and virtualized apps.

Product Variants

Discover the streamlined product portfolio

P81839-425
Model DL345 Gen11
Processor AMD EPYC 9115
Dual Processor Not Support
Memory 64 GB DDR4 RDIMM
Storage 2x 960GB SATA SSD
HDD Drive Bay 8 SFF
Storage Controller MR416i‑p
Network Controller 1Gb 4-Port Adapter
Power Supply Dual 1000W
Redundancy Power Supply Supported
Form Factor 2U Rack
Action Get a Quote

Features

Intuitive Cloud Operating Experience: Simple, Self-service, and Automated

HPE ProLiant DL345 Gen11 servers are engineered for your hybrid world. The HPE ProLiant Gen11 servers simplify the way you control your business’s compute—from edge to cloud—with a cloud operating experience.
Automate tasks for efficiency in deployment and instant scalability for seamless, simplified support and lifecycle management, reducing tasks and shortening maintenance windows. These experiences are engineered and built into all HPE ProLiant Gen11 servers, whether purchased as physical servers or consumed as-a-service using HPE GreenLake as your compute and storage demands grow. Simplify and secure server management from edge to cloud with HPE Compute Ops Management HPE Compute Ops Management is an as-a-service compute management experience that delivers greater simplicity, agility, and speed across your entire compute landscape, globally.

Trusted Security by Design: Uncompromising, Fundamental, and Protected

The HPE ProLiant DL345 Gen11 server is tied into the silicon root of trust and the AMD Secure Processor, a dedicated security processor embedded in the AMD EPYC™ system on a chip (SoC), to manage secure boot, memory encryption, and secure virtualization. HPE ProLiant Gen11 servers use the silicon root of trust to anchor the firmware of an HPE ASIC, creating an immutable fingerprint for the AMD Secure Processor that must be matched exactly before the server will boot. This helps ensure malicious code is contained, and healthy servers are protected. HPE ProLiant Gen11 servers continuously protect healthy servers at the edge by providing rapid detection of security-compromised servers, even to the point of not allowing them to boot if it identifies and contains malicious code, with IDevID certificates installed by default. HPE ProLiant Gen11 servers provide automated recovery from a security event, including restoration of validated firmware, and facilitating recovery of the operating system, application, data connections, and providing a fast path to bring a server back online and into normal operations. From silicon to software, from factory to cloud, and from generation to generation, HPE ProLiant Gen11 is engineered with a fundamental security approach to defend against increasingly complex threats through an uncompromising commitment to constant security advancements that are built into our DNA.

Customized Performance for your Workloads: Accelerated, Open, and Efficient

The HPE ProLiant DL345 Gen11 server is an excellent choice for data-intensive workloads such as software-defined storage, video transcoding, and such, and virtualized apps that require large storage capacity, and high I/O and memory bandwidth. Harness major computer performance. The HPE ProLiant DL345 Gen11 server is powered by the 4th and 5th Generation AMD EPYC™ Processors with 5nm technology that supports up to 160 cores, 400W, and 1150 MB of L3 cache. Advanced data transfer rates and higher network speeds from the PCIe Gen5 serial expansion bus, with up to 6x16 PCIe Gen5 and two OCP slots, improve I/O throughput and reduce latency. Increase memory bandwidth and performance, and lower power requirements with 12 DIMM channels per processor for up to 3 TB total DDR5 6400 MT/s memory. Provide real-time operational feedback on server performance plus recommendations for fine-tuning BIOS settings to customize for changing business needs.

Overview

HPE ProLiant DL345 Gen11

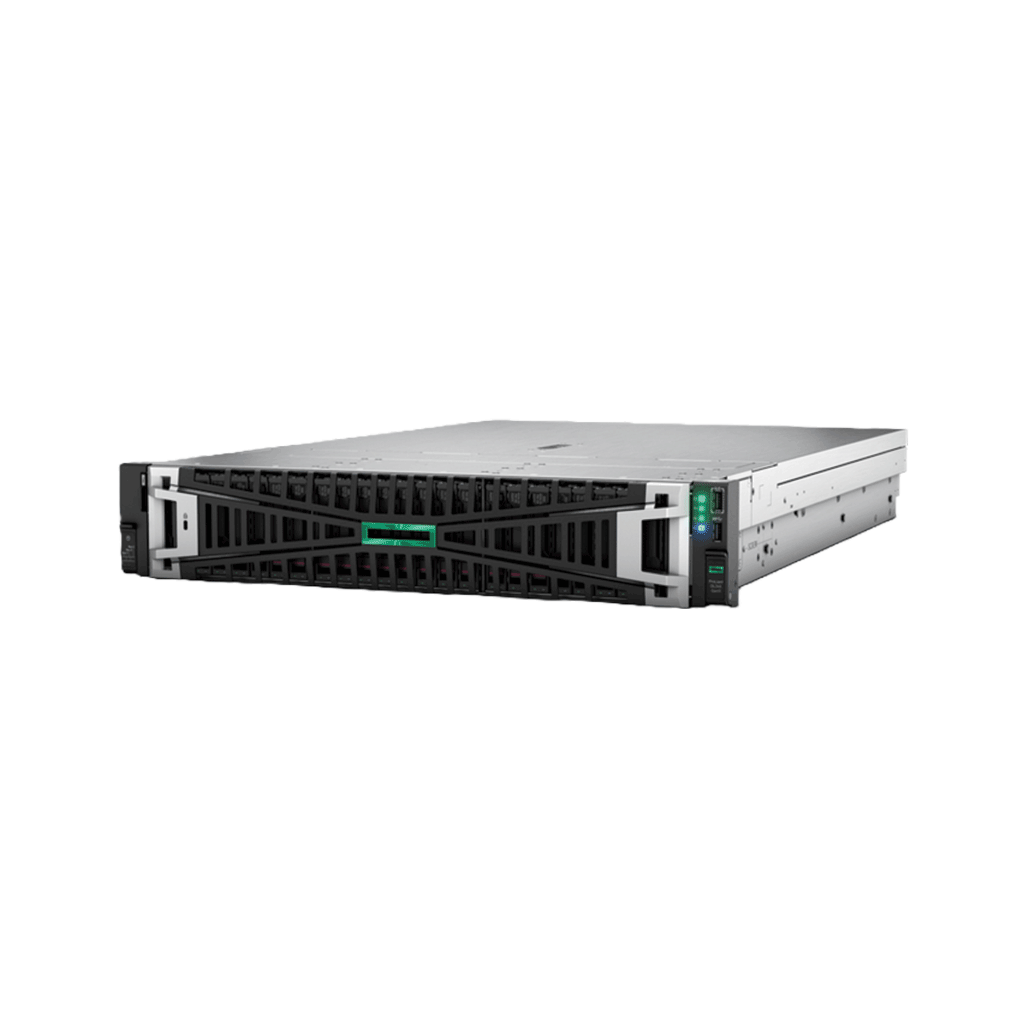

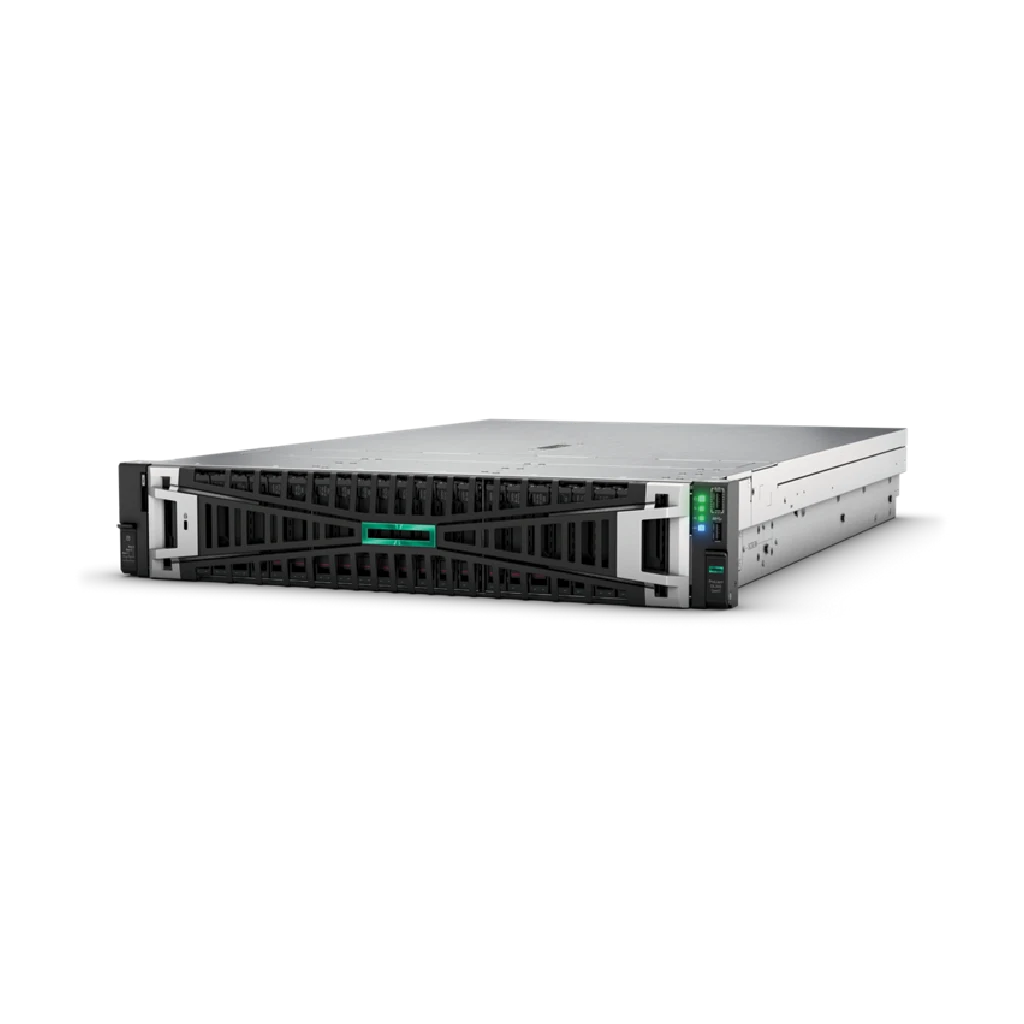

Front View - 24 SFF chassis shown

1. Quick removal access panel 2. Health LED
3. Power On/Standby button and system power LED 4. iLO service port

5. NIC status LED 6. USB 3.2 Gen1 Port 7. Unit ID button/ LED
8. Box 3 - 8 SFF Drive Cage Bay 9. Box 2 - 8 SFF Drive Cage Bay 10. Box 1 - 8 SFF Drive Cage Bay
11. Serial number pull tab

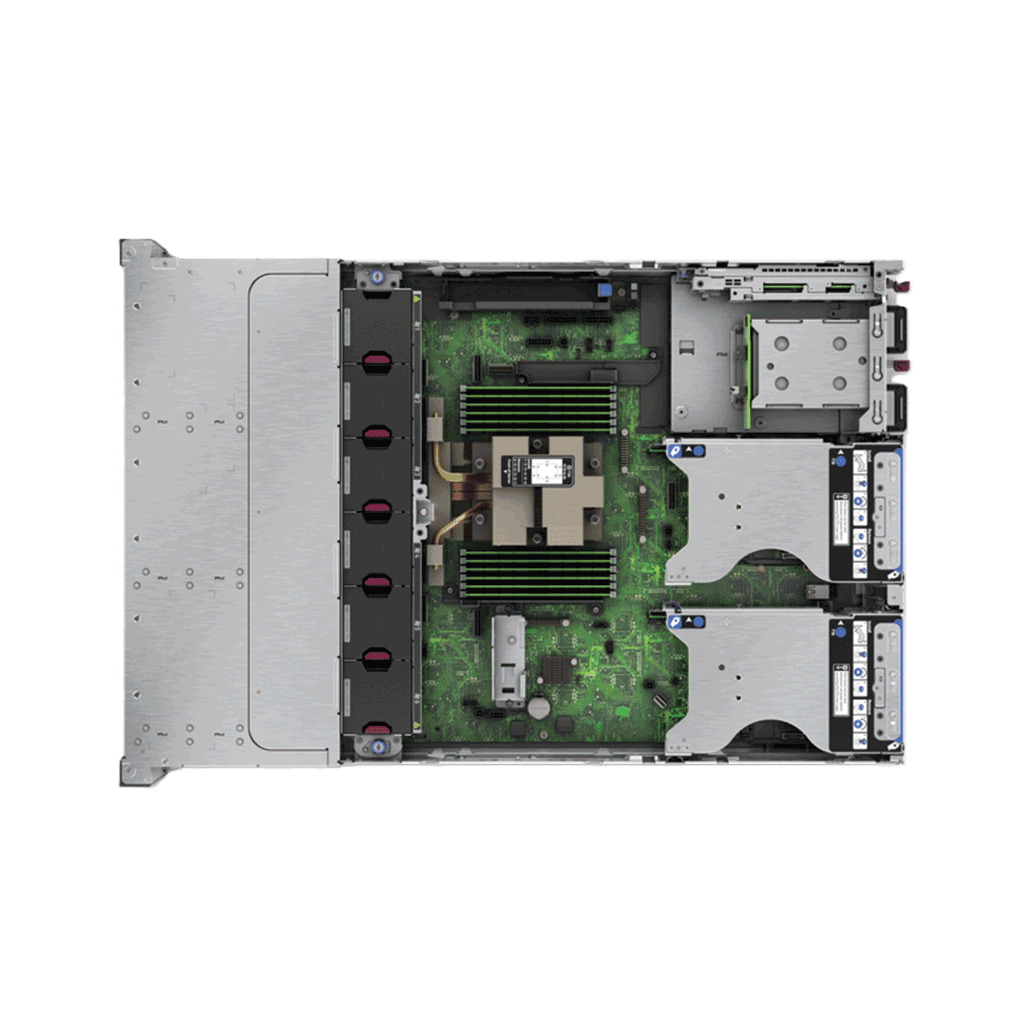

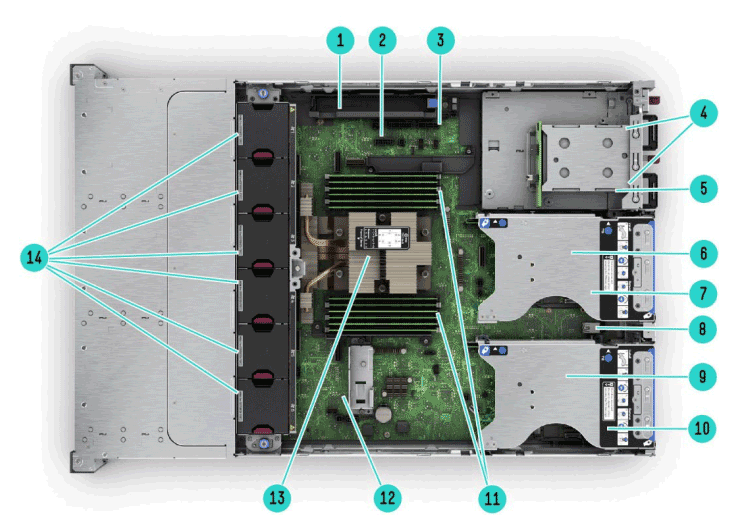

Internal View – 2SFF rear cage shown

1. Megacell Battery holder 2. Hard drive backplane power connectors
3. Chassis intrusion detection connector 4. Up to 2 Hot Plug redundant HPE Flexible Slot Power supplies
5. Rear 2 SFF Cage Bay (Optional) 6. Secondary PCIe 5.0 risers, slot 4,5,6
7. OCP 3.0 Slot 22 (Under) 8. Internal Dual USB 3.2 Gen1 port
9. Primary PCIe 5.0 risers, slot 1,2,3 10. OCP 3.0 Slot 21 (Under)

11. DDR5 DIMM slots 12. FHFL PCIe card holder 13. Up to 1 Processor shown with performance heat sink
14. Hot-plug fans

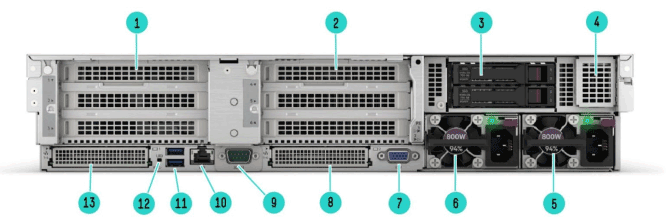

Rear View - 2SFF rear cage shown

1. Primary PCIe 5.0 Riser 2. Secondary PCIe 5.0 Riser
3. Optional Rear Drive Cage (2SFF SAS/SATA/NVMe) 4. Optional NS204i-u hot-plug NVMe boot device
5. Hot-plug Power Supply 1 6. Hot-plug Power Supply 2 (Optional)
7. Video (VGA) port 8. OCP 3.0 slot 22 9. Optional Serial port
10. Dedicated iLO management port 11. 2 USB 3.2 Gen1 port 12. Unit ID LED
13. OCP 3.0 slot 21

Specification

Processor type: AMD
Processor family: Processor family
Processor number: 1
Processor core available: Up to 160, depending on processor
Processor speed: 5.0 GHz maximum, depending on processor
Processor cache: Up to 1150 MB L3 cache, depending on processor model
Memory type: HPE DDR5 Smart Memory
Maximum memory: 3.0 TB with 256 GB DDR5
Memory slots: 12
Memory protection features: ECC
System fan features: 6 fans included
Expansion slots: 8 maximum, for detailed descriptions refer to the QuickSpecs
Form factor: 2U Rack
Network controller: Optional OCP and/or optional PCIe Network adapters, depending on model
Storage controller: HPE Smart Array SAS/SATA Controllers or Tri-Mode controllers, refer to the QuickSpecs for more details
Drive supported: 8 or 12 LFF SAS/SATA with 4 LFF mid drives and 4 LFF rear drives optional 8 or 16 or 24 SFF SAS/SATA/NVMe with 8 SFF mid drives and 2 SFF rear drives optional 36 EDSFF E3.S 1T NVMe
Power supply type: 2 Flexible Slot power supplies maximum, depending on model
Warranty: 3/3/3: Server Warranty includes three years of parts, three years of labor, and three years of on-site support coverage.
