The HPE ProLiant DL365 Gen11 server is a rack-optimized 1U 2P dense solution that delivers exceptional compute performance, upgraded highspeed data transfer rate and memory depth at 2P compute capability. Powered by 4th & 5th Generation AMD EPYCâ„¢ 9004 & 9005 Series Processors with up to 160 cores, increased memory bandwidth and capacity, high-speed PCIe Gen5 I/O, Enterprise and Datacenter Standard Form Factor (EDSFF) and GPU support, the HPE ProLiant DL365 Gen11 server is a superb rack-optimized, 1U 2P, dense solution. Enhanced security features with the HPE silicon root of trust are built into the firmware, creating a digital fingerprint for the AMD Secure Processor to validate safe operation prior to boot.

Product Variants

Discover the streamlined product portfolio

P81840-425
Model DL365 Gen11
Processor AMD EPYC 9115
Dual Processor Supported
Memory 64 GB DDR4 RDIMM
Storage 2x 480GB SATA SSD
HDD Drive Bay 8 SFF
Storage Controller MR408i‑o
Network Controller 10Gb 2-Port Adapter
Power Supply Dual 1000W
Redundancy Power Supply Supported
Form Factor 1U Rack
Warranty 3-year
Action Get a Quote

Features

Intuitive Cloud Operating Experience: Simple, Self-service, and Automated

Automate tasks for efficiency in deployment and instant scalability for seamless, simplified support and lifecycle management, reducing tasks and shortening maintenance windows. These experiences are engineered and built into all HPE ProLiant Gen11 servers, whether purchased as physical servers or consumed as-a-service using HPE GreenLake as your compute and storage demands grow. Simplify and secure server management from edge to cloud with HPE Compute Ops Management. HPE Compute Ops Management is an as-a-service compute management experience that delivers greater simplicity, agility, and speed across your entire compute landscape, globally.

Trusted Security by Design: Uncompromising, Fundamental, and Protected

The HPE ProLiant DL365 Gen11 server is tied into the silicon root of trust and the AMD Secure Processor, a dedicated security processor embedded in the AMD EPYC system on a chip (SoC), to manage secure boot, memory encryption, and secure virtualization. HPE ProLiant Gen11 servers use the silicon root of trust to anchor the firmware of an HPE ASIC, creating an immutable fingerprint for the AMD Secure Processor that must be matched exactly before the server will boot. This helps ensure malicious code is contained and healthy servers are protected. HPE ProLiant Gen11 servers continuously protect healthy servers at the edge by providing rapid detection of security-compromised servers, even to the point of not allowing them to boot if it identifies and contains malicious code, with IDevID certificates installed by default. HPE ProLiant Gen11 servers provide automated recovery from a security event, including restoration of validated firmware, and facilitating recovery of the operating system, application, and data connections, providing a fast path to bring a server back online and into normal operations. From silicon to software, from factory to cloud, and from generation to generation, HPE ProLiant Gen11 is engineered with a fundamental security approach to defend against increasingly complex threats through an uncompromising commitment to constant security advancements that are built into our DNA.

Customized Performance for your Workloads: Accelerated, Open, and Efficient

Harness major computer performance. The HPE ProLiant DL365 Gen11 server is powered by the 5th Generation AMD EPYCâ„¢ Processors with next-generation 5nm technology that supports up to 160 cores, 400W, and 512 MB of L3 cache. Advanced data transfer rates and higher network speeds from the PCIe Gen5 serial expansion bus, with up to 2x16 PCIe Gen5 and two OCP slots, improve I/O throughput and reduce latency. 12 DIMM channels per processor for up to 6 TB total DDR5 memory with increased memory bandwidth and performance, and lower power requirements. Supports up to 2 GPUs for increased performance. Provide real-time operational feedback on server performance plus recommendations for fine-tuning BIOS settings to customize for changing business needs.

Overview

HPE ProLiant DL365 Gen11

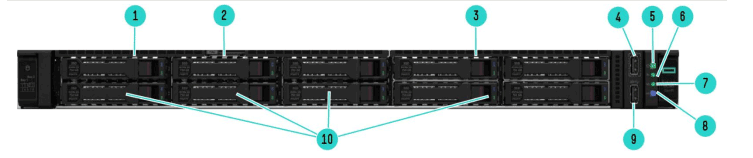

8 SFF Front View – 8 SFF & No Media Option Shown

1. Quick removal access panel 2. Serial no. label pull tab
3. Optional Media Bay* 4. HPE iLO service port
5. Power On/Standby button and system power LED 6. Health LED 7. NIC status LED1
8. UID button LED 9. USB 3.2 Gen1 port 10. 8 SAS/SATA/NVMe drive bays

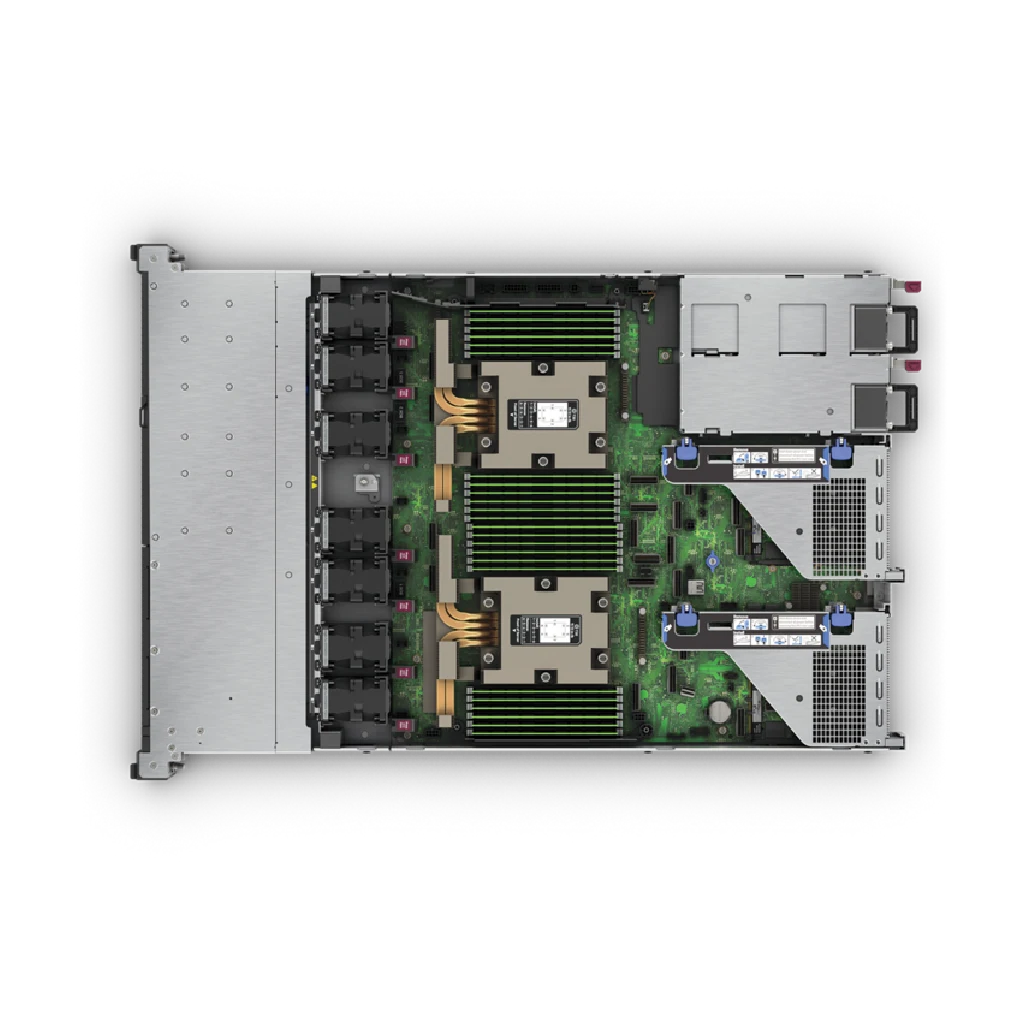

Internal View

1. DDR5 DIMM slots. Shown populated in 24 slots 2. Hot Plug redundant HPE Flexible Slot Power supplies
3. Secondary Riser connector cage, optional 4. (Under) OCP 3.0 Slot 2
5. Primary PCIe riser cage, standard 6. (Under) OCP 3.0 Slot 1
7. 2x USB 3.2 Gen1 ports 8. Fan cage shown with 7 High Performance Fans
9. 2 Processors (heatsinks shown)
2 Processors (heatsinks shown)

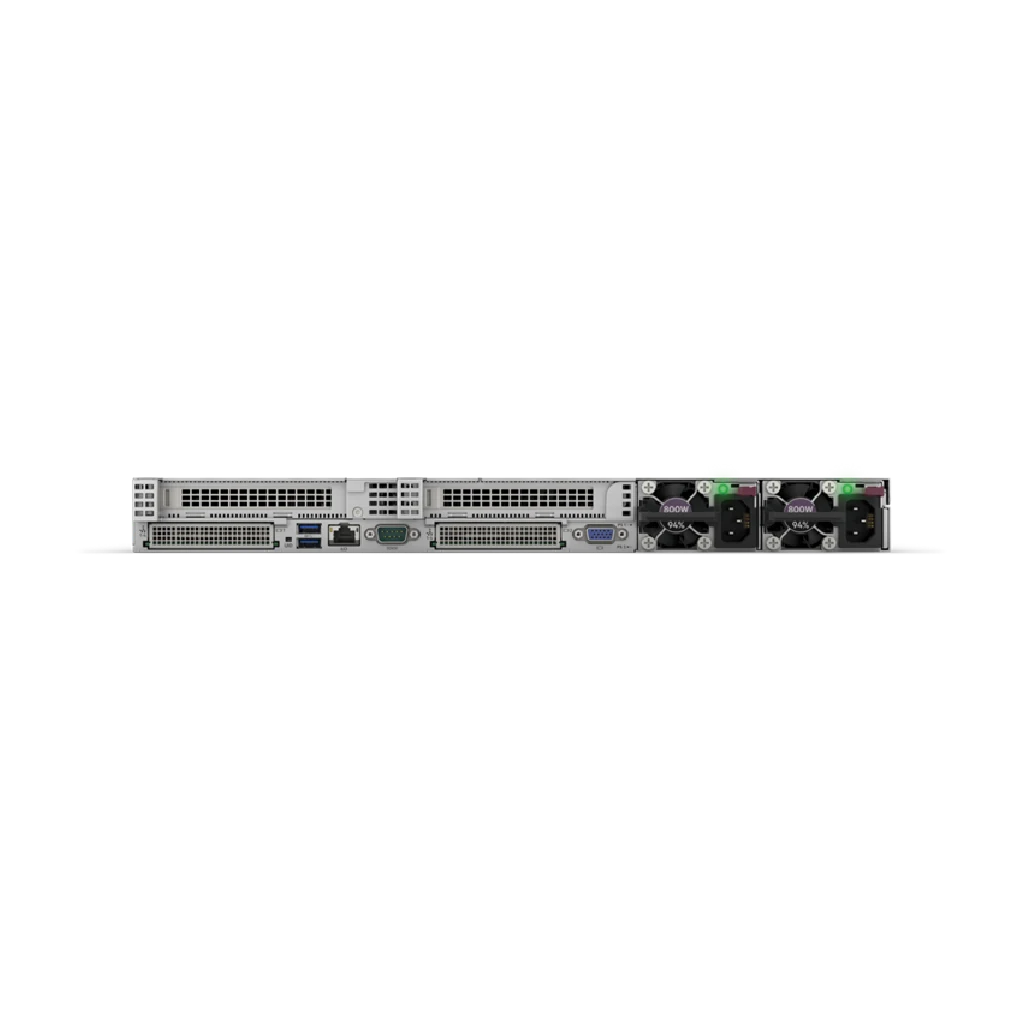

1. Slot 1 PCIe 5.0 2. OCP 3.0 Slots
3. Slot 2 PCIe 5.0 4. Hot-plug Power Supply 2
5. Hot-plug Power Supply 1 6. VGA port
7. Serial port (optional) 8. Dedicated iLO management port 9. USB 3.1 Gen1 Ports (2)
10. UID LED

Specification

Processor type: AMD
Processor family: 4th & 5th Generation AMD EPYCâ„¢ Processors
Processor number: Up to 2
Processor core available: Up to 160, depending on the processor
Processor speed: 5.0 GHz maximum, depending on the process
Processor cache: 64 MB, 128 MB, 256 MB, 384 MB, 512 MB or 1152 MB L3 cache, depending on processor model
Memory type: HPE DDR5 Smart Memory
Maximum memory: 6.0 TB with 256 GB DDR5
Memory slots: 24
Memory protection features: ECC
System fan features: 5 fans included
Expansion slots: 2 maximum, for detail descriptions refer to the QuickSpecs
Form factor: 1U Rack
Network controller: Optional OCP and/or optional PCIe Network adapters, depending on model
Storage controller: HPE Tri-Mode Controllers, refer to QuickSpecs for more details
Drive supported: 8 SFF SAS/SATA/NVMe with optional 1x 2 SFF SAS/SATA or 1x 2 SFF NVMe; 4 SFF for GPU server model
Optical drive type: Optional: 9.5mm SATA DVD-ROM/RW Optical Drive
Power supply type: 2 Flexible Slot power supplies maximum, depending on customer configuration
Warranty: 3/3/3: Server Warranty includes three years of parts, three years of labor, and three years of on-site support coverage.
