The HPE ProLiant MicroServer Gen11 delivers an affordable, compact yet powerful entry server that you can customize for on-premises or for hybrid cloud possibilities while still meeting the enterprise-class performance, security, reliability, and expandability standards of the rest of the HPE ProLiant enterprise class server portfolio.
| P74439-425 | |
|---|---|
| Processor | Intel Pentium Gold G7400 |
| Dual Processor | Not Support |
| Memory | 16GB (4 DIMM/128GB) |
| Storage | 1*HPE 1TB SATA |
| HDD Drive Bay | 4LFF |
| Storage Controller | Intel VROC SATA |
| Network Controller | 1Gb 4-Port Ethernet Adapter |
| Power Supply | (1) 180W |
| Redundancy Power Supply | No |
| Form Factor | Tower |
| Warranty | 1-year |
| Price |
AED :
9,500.00
USD :
2,587.00
|
| Action | Get a Quote |
The latest Intel Xeon 6300 Series, Intel Xeon E-2400 and Intel Pentium Gold Processors.Four 4400 MT/s HPE DDR5 UDIMMs, offering 16, 32 GB with up to 128 GB memory capacity support.Two PCIe expansion slots with the new PCIe 5.0 support.Fast OS Boot with the M.2 slot (optional slot available on the optional dedicated HPE iLO/M.2/serial port kit).HPE iLO remote server management support is now standard without the need of the additional module or activation key
HPE ProLiant MicroServer Gen11 is a powerful yet affordable server for your daily business workloads.With four 4400 MT/s HPE DDR5 UDIMMs, it offers 16, 32 GB. and up to 128 GB memory capacity support.Two PCIe expansion slots with the PCIe 5.0 support provide reliable scalability.
HPE ProLiant MicroServer Gen11 features iLO Silicon Root of Trust with server management to provide enhanced security, proven reliability and superb usability.
HPE ProLiant MicroServer Gen11 features fast setup with a unique form factor that is compact and ideal for small spaces.Embrace remote server management with HPE iLO 6.
Intel Xeon 6300-series and Xeon E Processor is designed to deliver the best combination of performance, built-in capabilities, and cost-effectiveness. This server also supports Intel Pentium processor.
Embedded Broadcom BCM5719 Ethernet 1GbE 4-port BASE-T Adapter for HPE. The HPE ProLiant MicroServer Gen11 server offers the customer a 4-port NIC standard with the option to upgrade with a variety of networking options.

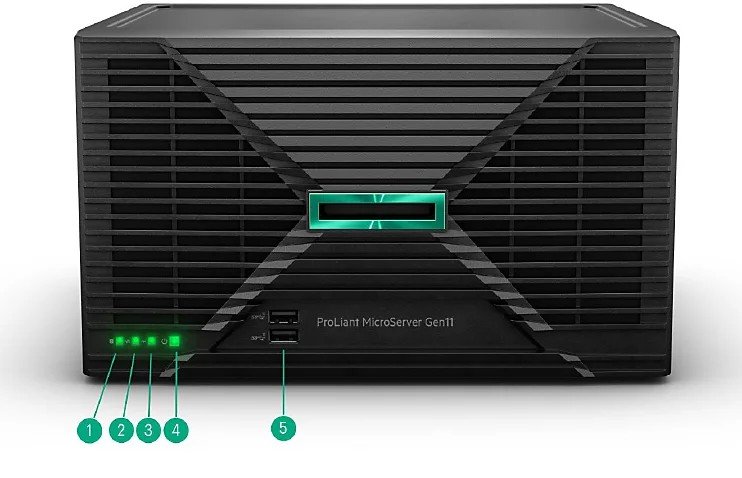

Front View (details for 8LFF and 16SFF)
| 1. | Drive activity LED | 2. | NIC status LED |
| 3. | Health LED | 4. | Power on/Standby button and system power LED |
| 5. | USB 3.2 Gen2 Type-A ports | ||
Internal View
| 1. | Padlock eye | 2. | Kensington security slot |
| 3. | PCIe Gen5 low-profile slot (PCIe5 x16) | 4. | PCIe Gen4 low-profile slot (PCIe4 x8) |
| 5. | Power clip hole (for the power cord clip to firmly secure the power adapter cord) | 6. | Power jack |
| 7. | Serial port (optional, enabled by the dedicated iLO/M.2/serial port kit) | 8. | iLO dedicated NIC port (optional, enabled by the dedicated iLO/M.2/serial port kit) |
| 9. | DisplayPort 1.1a | 10. | VGA Port |
| 11. | Four (4) NIC ports (NIC1-4 from left, where NIC port #1 supports shared iLO port) | 12. | Four (4) USB 3.2 Gen1 Type-A ports |

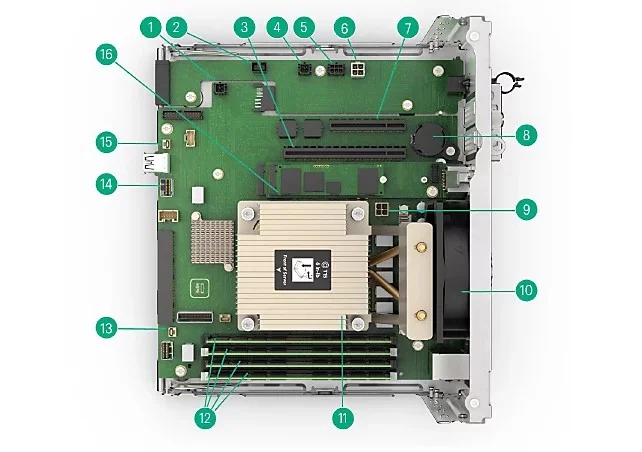

| 1. | System board: System power connector | 2. | Fan connector |
| 3. | Slot 1 PCIe5 x16 | 4. | PDB: System power connector |
| 5. | Drive power connector | 6. | PDB: 4-pin processor power connector |
| 7. | Slot 2 PCIe4 x8 | 8. | Coin battery |
| 9. | System board: 4-pin processor power connector | 10. | System fan |
| 11. | One (1) processor and heatsink | 12. | Four (4) DDR5 UDIMM slots |
| 13. | Ambient temperature sensor connector | 14. | SlimSAS x4 port |
| Model | HPE ProLiant Micro Server |
| Processor family | Intel, Xeon6300 Series, Intel® Xeon® E-2400 Series and Intel® Pentium® Gold |
| Processor core available | 2 to 4 cores, depending on processor |
| Memory type | HPE DDR5 Standard Memory |
| Maximum memory | Up to 128 GB memory capacity support |
| System fan features | 1 non-redundant system fan ships standard |
| Expansion slots | 2 PCIe slots |
| Network controller | 4x 1Gbe embedded |
| Storage controller | Embedded Intel VROC SATA Hybrid RAID |
| Processor speed | 3.7 GHz maximum, depending on processor |
| Processor cache | 3.7 GHz maximum, depending on processor |
| Optical drive type | Optional ODD Bay Kit, none included |
| Infrastructure management | HPE iLO 6 |
| Warranty | Server warranty includes 1-year parts, 1-year labor, and 1-year on-site support with next business day response. Warranty repairs may be accomplished using Customer Self Repair (CSR) parts. These parts fall into two categories: 1) Mandatory CSR parts are designed for easy replacement. A travel and labor charge will result when customers decline to replace a Mandatory CSR part, 2) Optional CSR parts are also designed for easy replacement but may involve added complexity. Customers may choose to have Hewlett Packard Enterprise replace Optional CSR parts at no charge. 3) A trained, authorized service engineer must service non-CSR parts |
