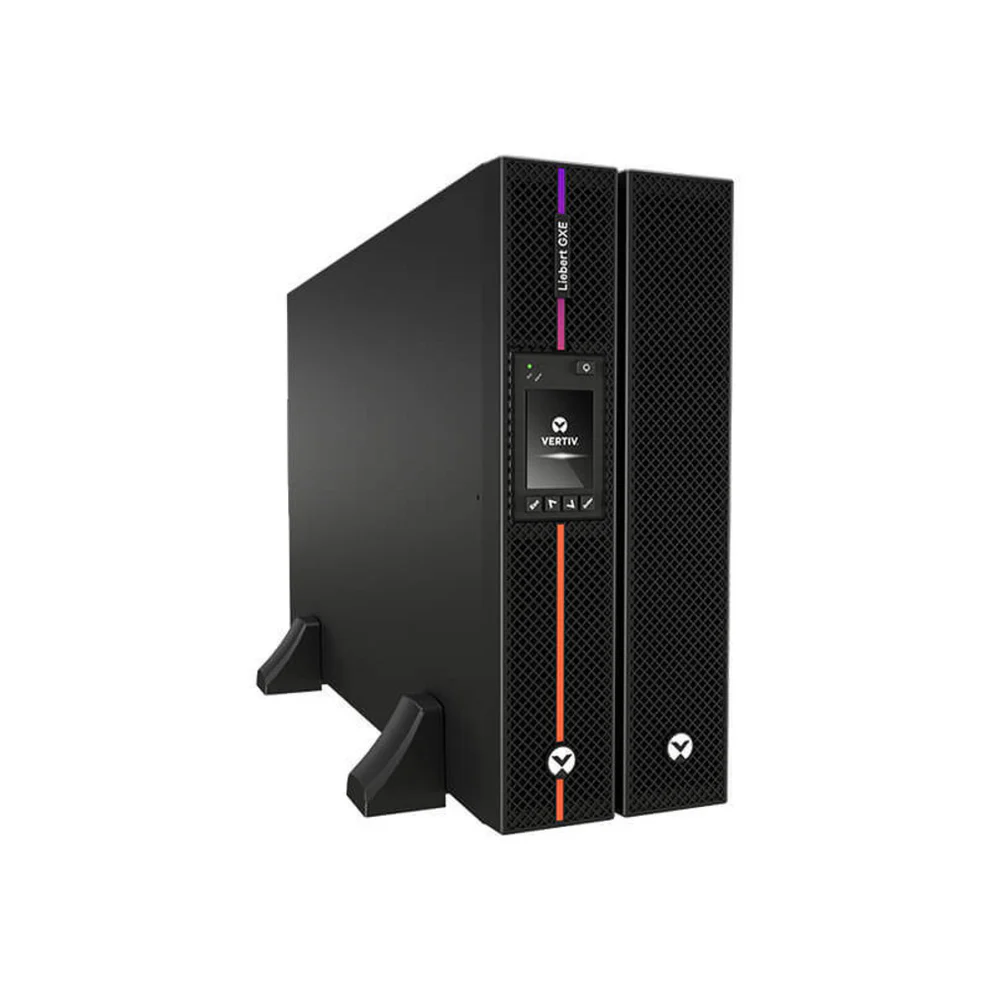

The Vertiv™ Liebert® GXE UPS is an online double conversion single phase UPS which offers power protection in an affordable and efficient system with deployment and operation flexibility. The unity output power factor (1.0) of the Liebert GXE UPS enables continuous and reliable power to more connected devices, protecting them against many disturbances in the AC mains with the online double conversion technology. It provides flexibility with either a rack mounting UPS or a in tower form factor, suitable to provide power protection to the critical IT equipment for any application.
| GXE3-10KIRT5UXL | |
|---|---|
| Power Rating | 10000VA / 10000W |
| Relative humidity | 5% to 95% |
| Output Voltage | 220/230 (default) /240 |
| Input Voltage | 100 - 288 |
| Frequency Range | 40 - 70 |
| Battery type | Valve-regulated, non-spillable, lead-acid |
| Operating Temperature | 0 to 40ºC |
| Dimensions | 430 x 700 x 217 mm |
| Weight | 80 kg |
| Warranty | 2 Years |
| Action | Get a Quote |
The Vertiv Liebert GXE3-10KIRT5UXL is a true online double-conversion UPS designed to provide continuous, high-quality power protection for mission-critical IT, networking, and communications equipment. It safeguards connected devices from all types of power disturbances—including voltage sags, spikes, surges, brownouts, blackouts, and electrical noise—by continuously conditioning incoming power and delivering a clean, stable pure sine wave output. Its online double-conversion topology ensures zero transfer time, providing seamless protection during utility power failures.
With a 10 kVA / 10,000 W output capacity and a high unity output power factor (1.0), the GXE3-10KIRT5UXL efficiently supports power-intensive equipment and modern server loads. The 5U rack/tower convertible design offers installation flexibility, making it suitable for server rooms, network closets, edge data centers, and enterprise IT environments where high availability and scalability are critical. A clear LCD display provides real-time status information and local control, while USB connectivity, EPO support, and an IntelliSlot® expansion slot enable advanced remote monitoring and network management using optional Vertiv communication cards.
The UPS features hot-swappable internal VRLA batteries and supports external battery cabinets to extend runtime according to application needs. With high efficiency in both online and economy modes, the Liebert GXE3-10KIRT5UXL delivers reliable, energy-efficient, and high-availability power protection for critical infrastructure.
| Max Configurable Power (Watts): | 10000VA / 10000W |
| Input Frequency: | 40 - 70 |
| Battery Type: | Valve-regulated, non-spillable, lead-acid |
| Typical Recharge Time: | 3 hr @ 90% |
| Expected Battery Life (years): | Upto 5 years |
| Interface Port(s): | USB, EPO, IntelliSlot®, and hardwired power terminals. |
| Weight (imperial): | 80 kg |
| Weight (metric): | 176.37 lbs |
| Product Dimensions (imperial): | 16.93 × 29.53 × 6.81 inches |
| Product Dimensions (metric): | 430 x 750 x 173 mm |
| Form Factor: | 5U |
| Warranty: | 2 Years |
